premade pouch filling sealing machine

  • Last update:2023-11-28
  • Page View:205

Scope of application

  FBG-180 premade pouch filling sealing machine are suit for filling liquid, powder, solid products by equipping piston filler,  servo auger filler and multi-heads weighing scales. It is widely used for packing products such as: honey, juice, coffee powder, milk powder, nuts, snacks etc.


premade pouch filling sealing machine               premade pouch filling sealing machine               premade pouch filling sealing machine

Features & Mechanical Character :

General insturctions of  premade pouch filling sealing machine


premade pouch filling sealing machine

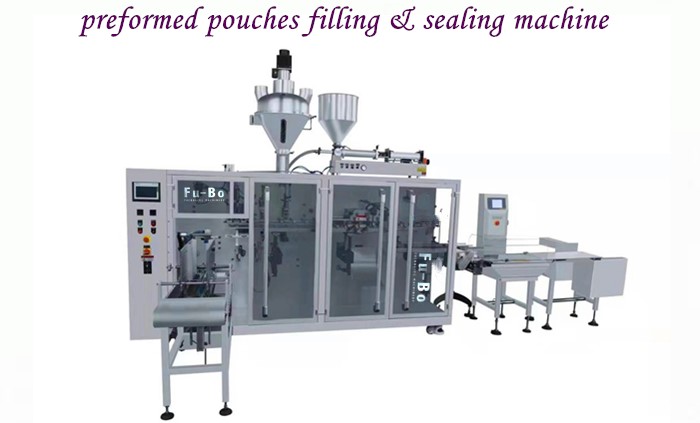

 FBG-180 Horizontal type pre-made pouch automatic packing machines series produced by our company adopted international advanced technology and derives from European classical packing machine. With blend of current packing technology, reasonable design and stable running, it is able to pack various sizes of stand-up and flat pouches. Equipped with flexible processing unit, it can automatically filling, sealing and do other packing processes. Premade pouch packing series is the most optimum choice to realize economic and reasonable pack.

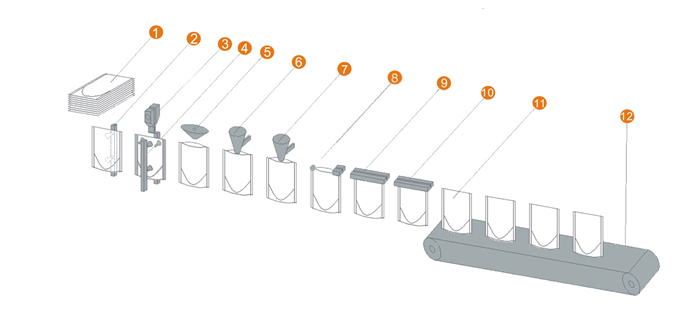

How is the pre-made pouch packing machine running?

premade pouch filling sealing machine


1.Premade Pouch Stack  2.Flip-Out Pouch-Picking Unit  3.Zipper Opening  4.Pouch Opening  5.Air Flushing 6.First Filling  7.Second Filling  8.Pouch Stretching  9.Top Seal I  10.Top Seal II  11.Finished Product  12.Outlet


  What kind of pouches can be filling by FBG-180 packing machine?

1. FBG-180 premade pouch filling sealing machine including functions: automatic take pouches from stacks, automatic open pouches by vacuum, automatic empty bags detecting, automatic dosing and filling, auotmaitc flatten bags, automatic sealing and cooling. It is suit fot 3 & 4 sides sealed sachets, doypack, stand-up pouches, spouted pouch, shaped pouches etc.


premade pouch filling sealing machine     premade pouch filling sealing machine     premade pouch filling sealing machine     premade pouch filling sealing machine

premade pouch filling sealing machine               premade pouch filling sealing machine               premade pouch filling sealing machine


Why  customer choose FBG-180 Premade pouch filling sealing machine?

1. preamde pouch filling sealing machine is conveniently to change shapes of pouches and size of bags, one machine are suit for packing differently products

2.premade pouch filler sealer are suit for different shapes bags, It is suit for OEM factory

3. Horizontal type of  premade pouch packing machine is convenient  to maintaince compare with rotary type of premade pouch filler.

Technical Specification :

Type型号

FBG-180 premade pouch packing machine

FBG-210 premade pouch packing machine

FBG-240 premade pouch packing  machine

FBG-330 premade pouch packing machine

Packing range袋型尺寸范围

60X80mm &

180X310mm

90X110mm &

210X310mm

100X120mm &

240X320mm

140X180mm &

320X410mm

Max volume包装容量范围

1200mL

1600mL

2000mL

4000mL

Speed包装速度

30-60ppm

30-60ppm

30-60ppm

5-15ppm

Power功率

1.8kw

2.8kw

3.4kw

2.5kw

Dimension设备尺寸

1900mm(L)

970mm(W)

1390mm(H)

2700mm(L)

970mm(W)

1400mm(H)

3100mm(L)

1010mm(W)

1400mm(H)

1800mm(L)

1020mm(W)

1300mm(H)

Weight重量

700kg

900kg

1800kg

700kg
