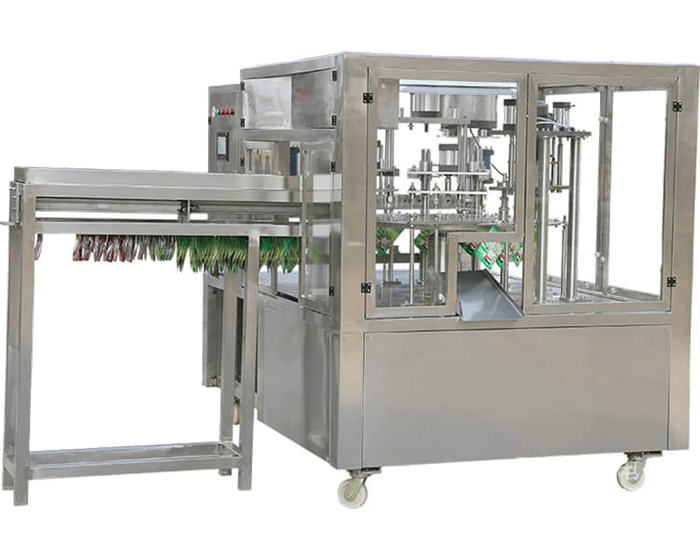

rotary pouch filling capping machine

  • Last update:2023-11-28
  • Page View:1306

Scope of application

  FB-4A and FB-6A Premade spouted pouch filling capping machine are widely used for packing water, juice, food sauce, oil, detergent products etc.


rotary pouch filling capping machine

rotary pouch filling capping machine       rotary pouch filling capping machine

rotary pouch filling capping machine

Features & Mechanical Character :

1)Automatic spout pouch filling and capping machine is suitable for liquid or semi-liquid,such as packing jelly, soy milk, yoghourt, mineral water, juice, ice cream, edible oil, seasoning, scour, laundry detergent etc;

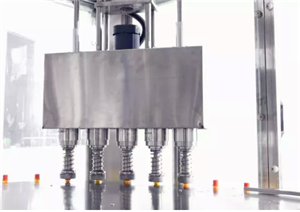

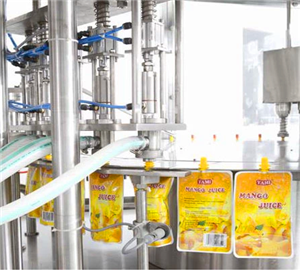

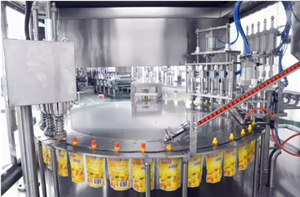

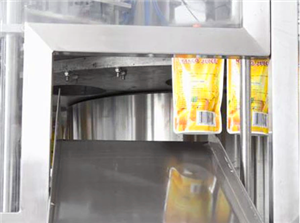

2)This is a full automatic production line with such processes as automatic pouch-loading, vacuuming, fixed-position filling, nitrogen flushing, clean spout, cap feeding and inserting, capping (applying magnetic adjusting torque for rather stability), discharging;
3)This machine can be connected CIP cleaning syetem, PLC control and touch screen system, air-purifying system, safeguard switch, glass cover. All of these functions can be added or removed according to the clients' requirements.

rotary pouch filling capping machinerotary pouch filling capping machine

rotary pouch filling capping machinerotary pouch filling capping machine

rotary pouch filling capping machinerotary pouch filling capping machine

Technical Specification :

Model

FB-4A

FB-6A

Filling Nozzle

4 pieces

6 pieces

Packing Speed

2000 to 4000bags/Hour

3000 to 6000bags/Hour

Volume

1 to 2500ml customized)

1 to 2500ml customized)

Power

1.6 kw

2.1 kw

Voltage

380V/50HZ (three phases)

380V/50HZ (three phases)

Air Pressure

0.5-0.7Mpa

0.5-0.7Mpa

Air Consumption

0.7m3/min

0.8m3/min

Dimension

Main Machine: (L)1800*(W)1230*(H)1900mm

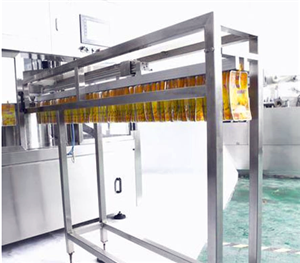

Send bag holder: (L)2200*(W)400*(H)1600mm

Wooden Box

(L)2200*(W)2000*(H)2200mm

Weight

1600kg
