Scope of application
FBV-520 VFFS bagging machine with 14 heads weighing scales to packing products: dried food, puffed snacks, chips, crisp food, candy, frozen food, etc.
FBV-520 bagging machine are suit for making pillow pouch, pillow pouch with punching hole, pouch with gusset, linking- bags, vacuum bags etc.
Features & Mechanical Character : Shanghai FUBO packaging machinery provide VFFS packing machine FBV-320, FBV-420, FBV-520,FBV-620 etc. All type of machine can be customized to packing liquid, powder, granules, products by changing related dosing parts.

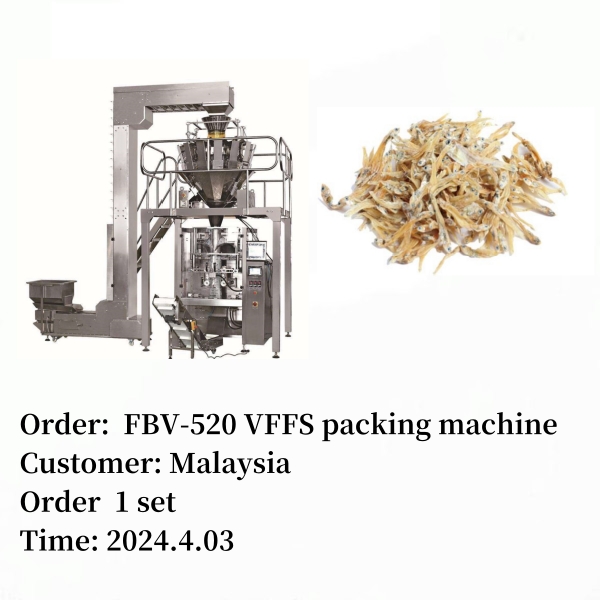

FBV-520 bagging machine with 14 heads weighing scales for example:
1. Automatic packing machine including, Z type vibration conveyor, 14 heads weighing scales, automatic vertical packing machine, work platform, products output conveyor.
2. Features of machine --- this system are full automatically control, feeding, dosing, filling, sealing, date printing and finished products conveyoring, it has advantages of high accurate weighing, high efficiency without breaking products
Technical Specification : |
Model of machine |
FBV-420 VFFS bagging machine |
FBV-520 VFFS bagging machine |
FBV-620 VFFS bagging machine |
FBV-820 VFFS bagging machine |
|
BAG SIZE |
L: 60-230 W::60-200 |
L: 100-300 W: 80-250 |
L:100-380 W: 100-300 |
L:150-380 W: 110-400 |
|
PACKING SPEED |
15-80 /Min |
15-80 /Min |
15-60 /Min |
15-30 /Min |
|
FILM WIDTH mm |
140-420 |
180--520 |
220-620 |
340-800 |
|
AIR CONSUMPTION (0.6Mpa) |
0.36 cubes |
0.36 cubes |
0.4 cubes |
0.6 cubes |
|
POWER SUPPLY |
2.2 Kw 220v 1 phase 50 Hz |
3 Kw, 220v 1 phase 50 Hz |
4 kw, 220v 1 phase 50 Hz |
4.5 Kw, 220v 1 phase 50 Hz |
|
SIZE OF MACHINE L*W*H |
1430*970*1600 |
1550*1160*1480 |
1600*1260*1680 |
1600*1500*2050 |
|
WEIGHT OF MACHINE |
300 KGS |
400 KGS |
500 KGS |
800 KGS |
