PRODUCT

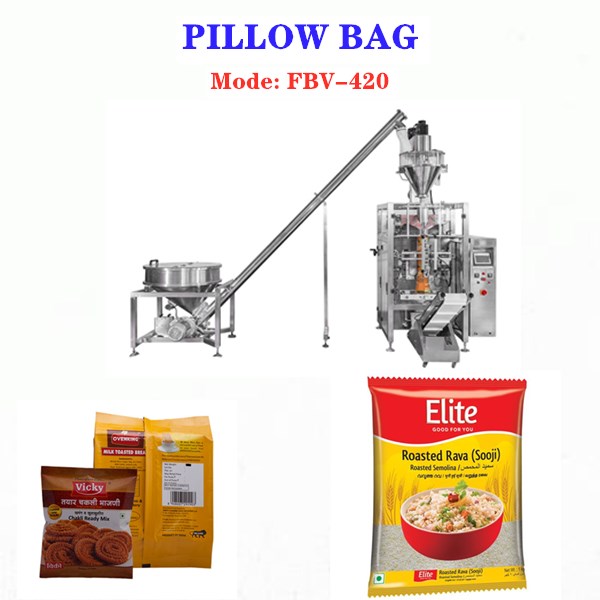

FBV-420 PILLOW BAG PACKING MACHINE

  • Last update:2021-10-09
  • Page View:1951

Scope of application

VFFS pillow bag packing machine

VFFS PILLOW BAG PACKING MACHINE


suit for products:

VFFS POWDER PACKING MACHINE                                        VFFS LIQUID PACKING MACHINE                                    VFFS GRANULES PACKING MACHINE

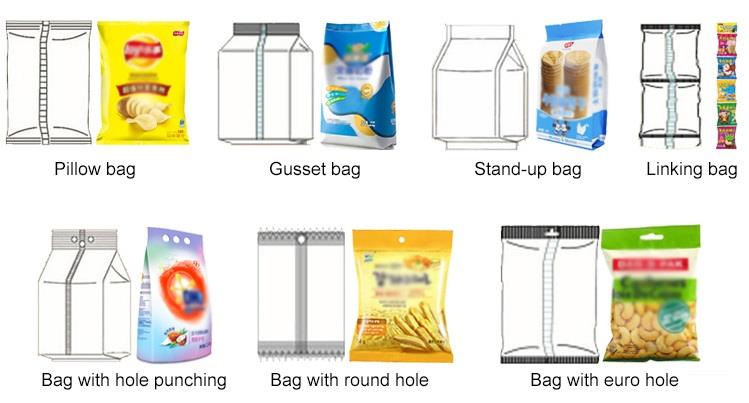

samples pouches:

SAMPLE OF POUCHES

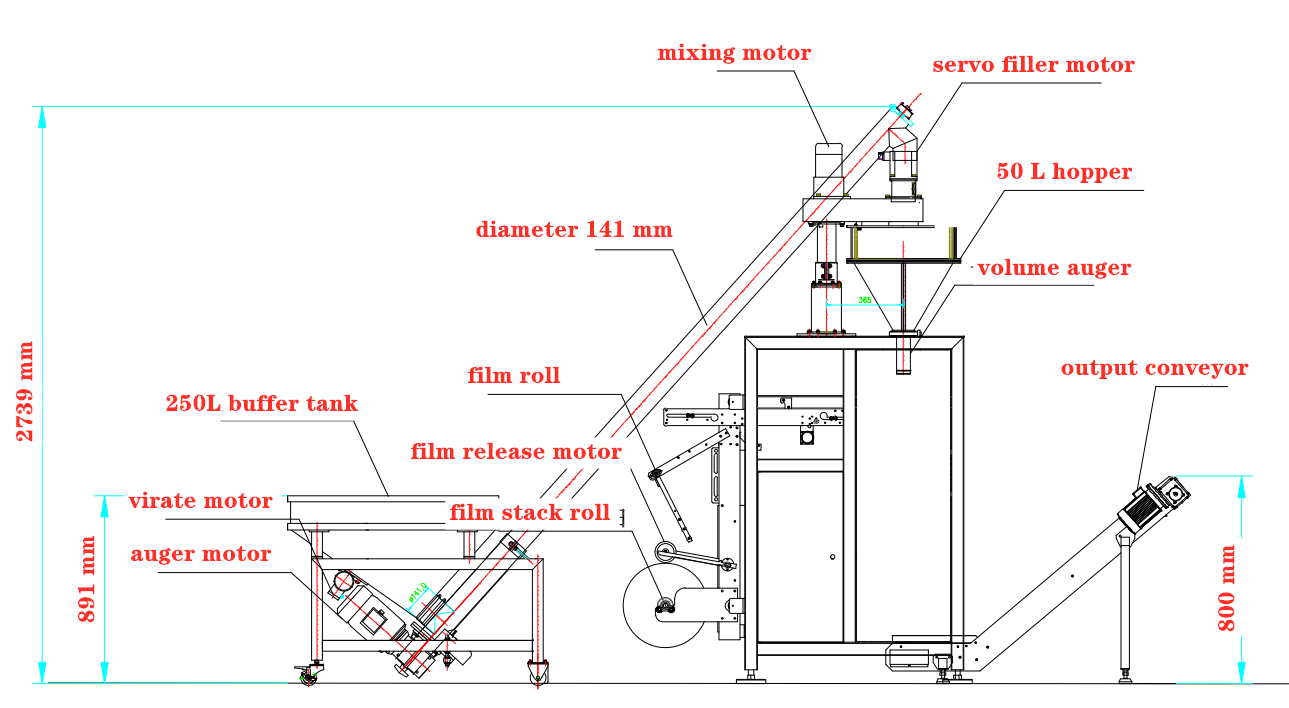

Features & Mechanical Character :

processing flash:

vffs packing machine

Applications:

It is suitable for packing grain, liquid , sauce, paste, powders etc.  machine can make different shapes of pouches according with verious products


vffs packing machine

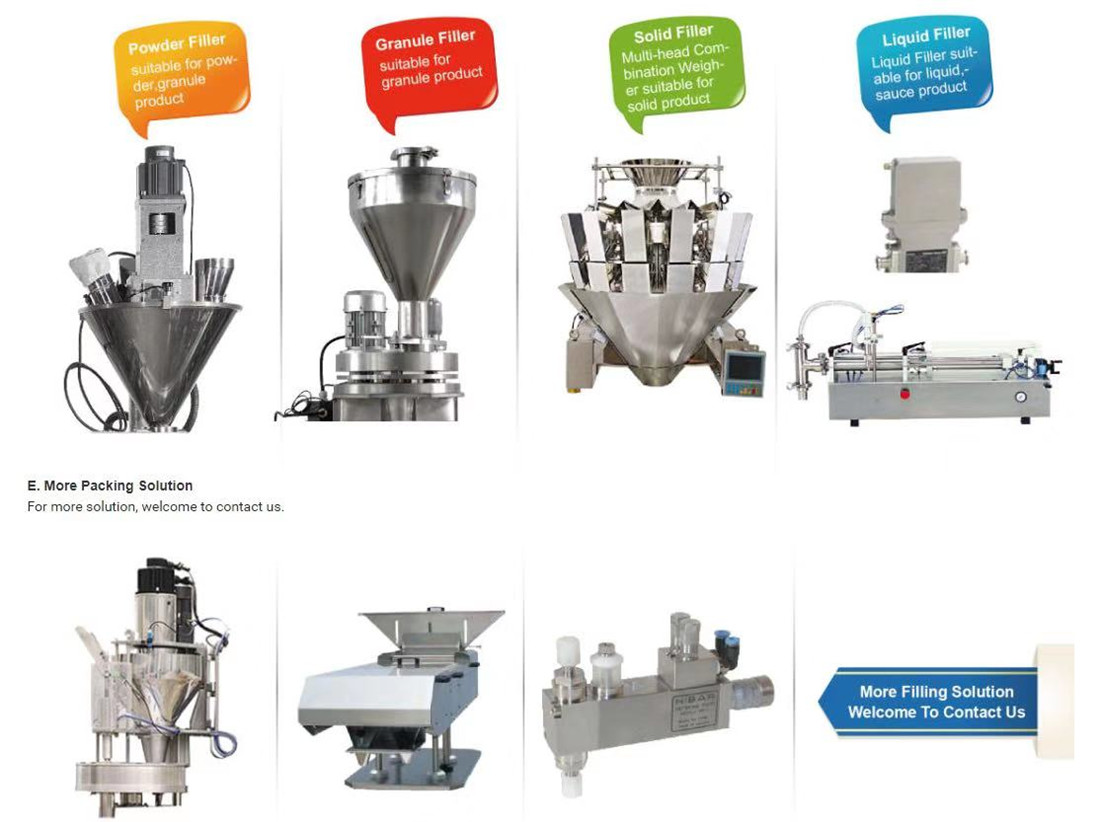

FILLING OPTIONS

Different products need different dosing & filling parts,  such as,   powder filled by auger,   granules filled by scales, liquid filled by pumps.

According with differently products, we provide differently dosing & filling parts as below:

vertical form filling sealing machine

Technical Specification :

Modal

FB-320

FB - 420

FB-520

FB-720

Measuring range

150-800ml

150-1500ml

150-2000ml

150-4000ml

Packaging speed

5-70bags/min

5-60bags/min

10-60bags/min

10-60bags/min

Bag width

50-150mm

60-200ml

80-250mm

100-350mm

Bag length

80-240mm

80-300mm

80-350mm

100-450mm

Film roll width

Max.320mm

Max.420mm

Max.520mm

Max.720mm

Film thickness

0.03-0.09mm

Film material

OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film

Machine size(LxWxH)

1185*935*1245mm

1217*1015*1343mm

1488*1080*1490mm

1716*1260*1820mm

Machine weight

350kg

450kg

550kg

700kg
