FBV-300 stick sachet/bag vertical packing machine

  • Last update:2024-02-22
  • Page View:1303

Scope of application

VFFS FBV-300 packing machine

More videos for FBV-300 vertical packing machine with different fillers ( auger filler, cups filler, postion filler, counter machine)



FBV-300 small bags packing machine

VFFS FBV-300 packing machine

VFFS FBV-300 packing machine

VFFS FBV-300 packing machine

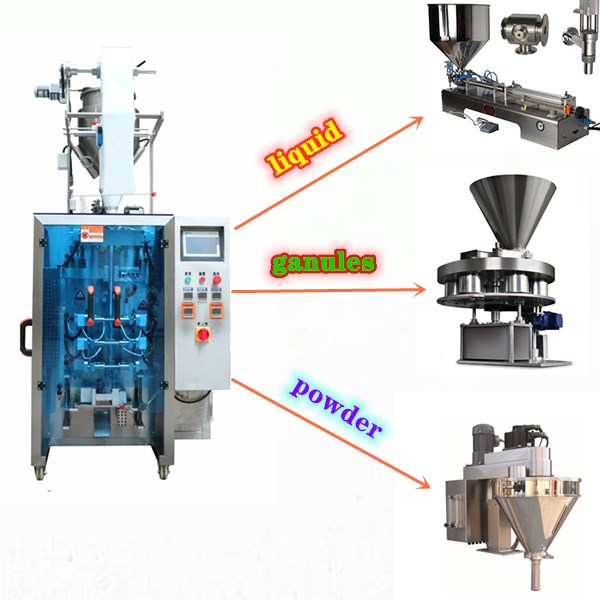

  FBV-300 vertical type packing machine for packing liquid, powder, tablets, solid products etc.

Optional:

1. powder products by auger filler on packing machine, this design are suit for packing coffee powder, milk powder, herbs powders etc.

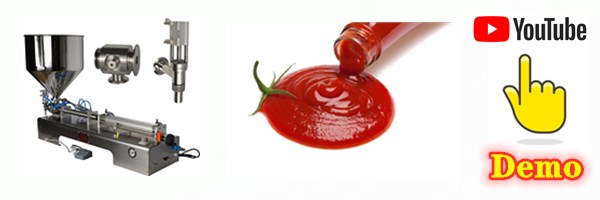

2. Liquid/paste products by piston filler on packing machine, this design are suit for packing juice, water, gel, ketchup, sauce, jelly etc.

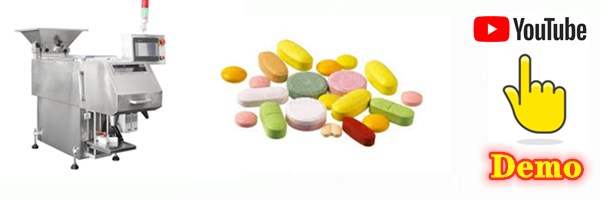

3. tables products by multilans counter machiner on packing machine, this design for packing drugs, milk tablets, vitams tablets etc.

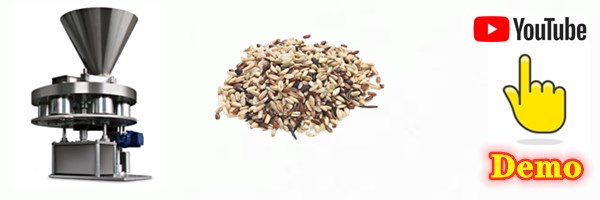

4. sugar/salt products by cups filler on packing machine, this design for packing regular shape products


FUNCTIONS OF FBV-300 packing machine --- FORM FILL SEAL, DATE PRINTER, SHAPE CUT, MIXING, etc.


FBV-300 vertical packing machine are used product mini sachets products, such as: stick bags, 3 & 4 sides sealing sachets, linking bags, it is can be customized to produce shaped sachets, too

Features & Mechanical Character :

FBV-300 Vertical packing machine are composed of:

1. products feeding sytem,  2. products dosing and filling system, 3, packing machines(VFFS)


Optional functions:

1. automatic feeding good device,    2, printing function,   3, mixing function,   4, heating function,    5, level detecting function,

6, output conveyor,    7, de-air,    8, gas filling,    9, checkweigher,    10, metal detecting , 11, die cut,     12, OEM



FBV-300 sachet packing machine are suit for different products as below:

 poweders, flour, spices, granules, snacks, grains, frozen food, instant food, liquid, sauce, paste, medicine, chemicals etc.

FBV-300 small bags packing machine

FBV-300 machine package samples:

stick sachets, irregular shaped sachets, pillow bag, 3 sides sealed sachet, 4 sides sealed sachet, linking bags, sachet with Euro hole

sachet with easy tear and other customized packages

FBV-300 small bags packing machine


Irregular shape pouches samples:

VFFS FBV-300 packing machineVFFS FBV-300 packing machineVFFS FBV-300 packing machine

Technical Specification :

Machine

FBV-300 sachet/bag packing machine

Ranges of measurement

Customized 1-100 grams

Sizes of bags

Width of bag: 20mm to 150mm

( different bags need change related former devices);

Length of bags: 20 to 180 mm

( length of bag can be expanded properly according to customers requirements)

Speed of packaging

20-40 bags/minute;    speed related with filling volume, and bags size

power

1400w

Weight of machine

180 kg

Outside sizes of machine

970*860*2026 mm

Voltage of supplier

220 -240 v  50-60 Hz.   ( this can be customized, please confirm this before deposit)
