Scope of application
Automatic Grade: Automatic
Suitable shrink film: POF
Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical etc.
Packaging style: L type full closed packing
自动等级：自动
适用收缩膜：POF
应用：食品、化妆品、文具、五金、日用品、医药等。
包装方式：L型全封闭包装
Features & Mechanical Character : Production Instruction:

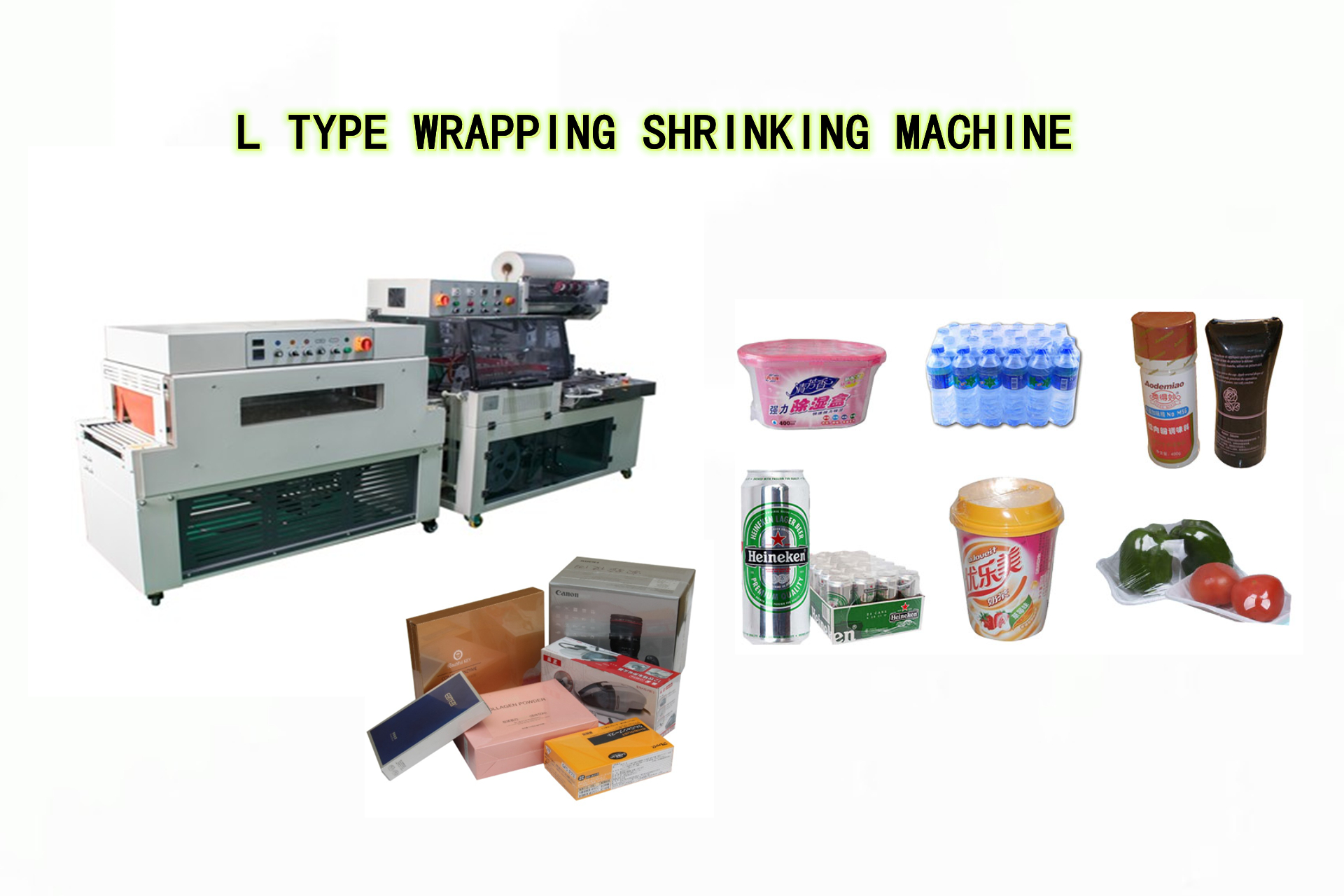

Automatic side sealing shrink wrapping machine is an intermediate speed type automatic sealing and
cutting heat shrink packing machine which we design and produce in the high-speed automatic edge
sealing machine basis, according to the different needs of the domestic market and customers. It uses
photoelectric to automatically detect products, achieve automatic unmanned packing and high efficiency,
and it is suitable for all kinds of packaging products with different sizes and shapes.
Application: food, cosmetics, stationary, hardware, daily used products, pharmaceutical, gift boxes, bottles,
cups, book etc.
Technical Specification : |
Product No 产品号 |
L450 |
M500 |
|
Name 名称 |
L-Bar Shrink Machine |
Shrink Tunnel |
|
Film 包装膜 |
POF |
POF |
|
Packing Speed 包装速度 |
15-35pcs/min |
1~40pcs/min |
|
Packing Size 包装尺寸 |
L+H<=450mm/W+H<=370mm(H<=100mm) |
W<=350 H<=180mm |
|
Cutter size / Tunnel size 切刀尺寸/热收缩尺寸 |
L555×W450mm |
L1000×W450×H250mm |
|
Max Temperature 最大收缩温度 |
250°C |
200°C |
|
Electrical电压 |
220V 50-60Hz 1 Phase |
220V/380V 50-60Hz 3 Phase |
|
Machine Size机械尺寸 |
L1740*W1050*H1280 |
L1320×W775×H1520mm |
|
Power 电压 |
2.5KW |
10KW |
|
Max Current 电流 |
6.5A |
18A |
|
Machine Weight 机械重量 |
300kg |
185kg |
|
Air Compressing空气压力 |
5.5-8.5kg/cm3 |
/ |
|
Table Height输送带高度 |
850+30mm |
850+30mm |
