PRODUCT

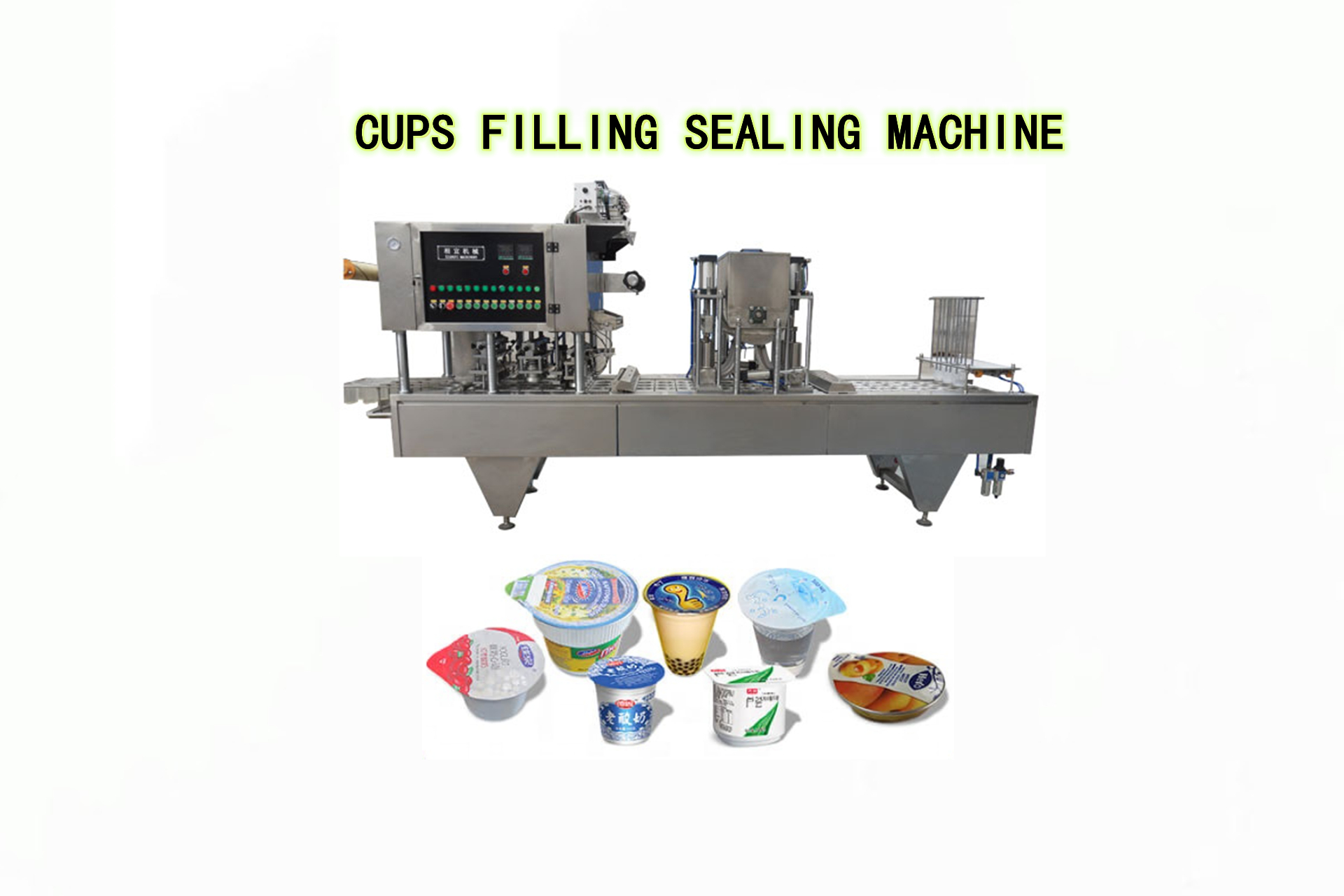

cups filling sealing machine

  • Last update:2022-03-13
  • Page View:4058

Scope of application

jelly cups filling sealing machine

PACKING PRODUCTS (包装产品)
FBCL types of cups filling sealing machines are widely use for filling Fine packaged coffee (coffee powder),

tea powder, coconut powder, etc. Or other kinds of liquid products, such as fruit juice, water, ice cream,

yogurt, milk, soy milk, chili sauce, honey, tomato sauce, mineral water, even granules, powder and so on.


sample cups

Functions : filling ,sealing, printing, cutting, output, UV, washing etc.
FBCL型杯灌装封口机广泛用于灌装精细包装的咖啡(咖啡粉)、茶粉、椰子粉等或其他液体产品,如果汁、

水、冰淇淋、酸奶、牛奶、大豆 牛奶、辣椒酱、蜂蜜、番茄酱、矿泉水、连颗粒、粉末等。
主要功能:灌装,封口,日期打印,冲切,成品输出,紫外线杀菌,洗杯等功能

Features & Mechanical Character :

1. Introduce of Automatic liquid spout pouch filling machine /spout pouch filling capping machine:
2. Automatic cup filling and sealing machine is mainly used for filling and sealing liquid, paste, granules, mixed materials and other materials.

• Filling and sealing of cups, bowls, boxes, barrels and special shape container, container material is plastic.
• Automatic cup filling and sealing machine workflow: Falling Cup - Cup pressure - filling - UV - send film - Correcting - Sealing - Code printing - Cut - Waste film recycling - Off cup, all processes are done automatically.

3.  The full automatic jelly cup filling sealing machine can work automatically including the process of container dropping, sterilizing by ultraviolet radiation, filling, auto coding, 1st heat sealing, photoelectric pattern prof-reading, 2nd heat sealing, film trimming and auto discharge.
4. The  automatic jelly cup filling sealing machine is suitable for the filling and sealing of jelly, pudding, juice, cupped water, meat, dairy, tofu, cupped noodles,bean curd, snacks, various of prepared foods ready for heating microwaves, seasoned frozen food, pickled food and etc.


Technical Specification :

Type

FBCL-2

FBCL-4

FBCL-8

FBCL-16

Production

Ability

产量

1800-2000(cups)

3600-3800(cups)

7200-7500(cups)

14000-15000(cups)

Voltage

电压

220V-380V/50Hz

220V-380V/50Hz

220V-380V/50Hz

220V-380V/50Hz

Power

功率

2.5kw

3.5kw

5.0kw

7.5kw

Dimension

机械尺寸

2600*600*1750mm

2800*800*1750mm

3800*800*1750mm

4200*1400*1750mm

Weight

机械重量

800kg

1200kg

1800kg

2500kg
