Scope of application

Gusset pouch VFFS packing machine

Features & Mechanical Character :

Keywords

VFFS machine, vffs packing machine, vffs gusset pouch packing machine, gusset bag packing machine

vertical packaging machinery, vertical form fill seal packing machine, plastic bag packing machine

suit for products:

Gusset pouch VFFS packing machine

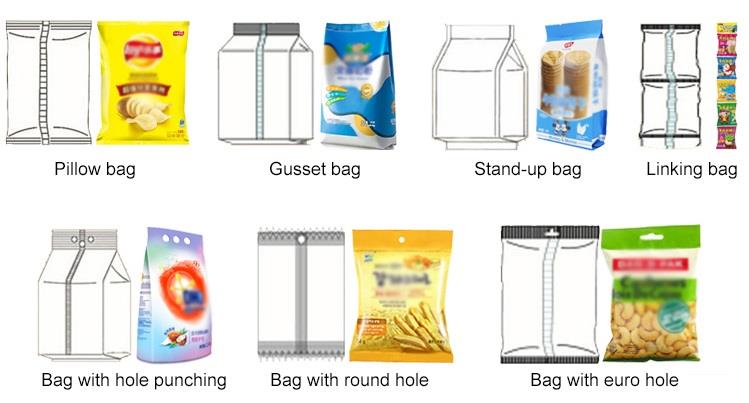

sample packages:

Gusset pouch VFFS packing machine

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Control System

PLC + Servo + Touch Screen

Cutting Type

1.Flat Cutting, 2.Zigzag Cutting, 3.Continuous Cutting, 4.Customized Special Shap CuttingOptional device Date Coder, Air-filling Device, Tear Notch Device

Optional device for your choice:

1. Date Coder2. Hole Punching Device(Pinhole, Round hole, the butterfly hole)

3. Linking bag control device

4. Air-filling Device

5. Air Exhaust Device

6. Tear Notch Device

7. Nitrogen inflation device

8. Gusset Bag

Technical Specification :

Modal	FB-320	FB - 420	FB-520	FB-720
Measuring range	150-800ml	150-1500ml	150-2000ml	150-4000ml
Packaging speed	5-70bags/min	5-60bags/min	10-60bags/min	10-60bags/min
Bag width	50-150mm	60-200ml	80-250mm	100-350mm
Bag length	80-240mm	80-300mm	80-350mm	100-450mm
Film roll width	Max.320mm	Max.420mm	Max.520mm	Max.720mm
Film thickness	0.03-0.09mm
Film material	OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film
Machine size(LxWxH)	*11859351245mm*	*121710151343mm*	*148810801490mm*	*171612601820mm*
Machine weight	350kg	450kg	550kg	700kg
