Scope of application
working theory
layout
Gernal instructions of vertical bagging machine
FUBO brand VFFS form fill seal machine are suit for packing powder, solid products, paste, liquid by equipping related dosing filler, It's widely used in food factory. central kitchen, medicine factory, chemicals factory etc.
VFFS poch form fill seal machine are suit for products:
Sample packages made by vetical form fill seal machine:
Features & Mechanical Character :

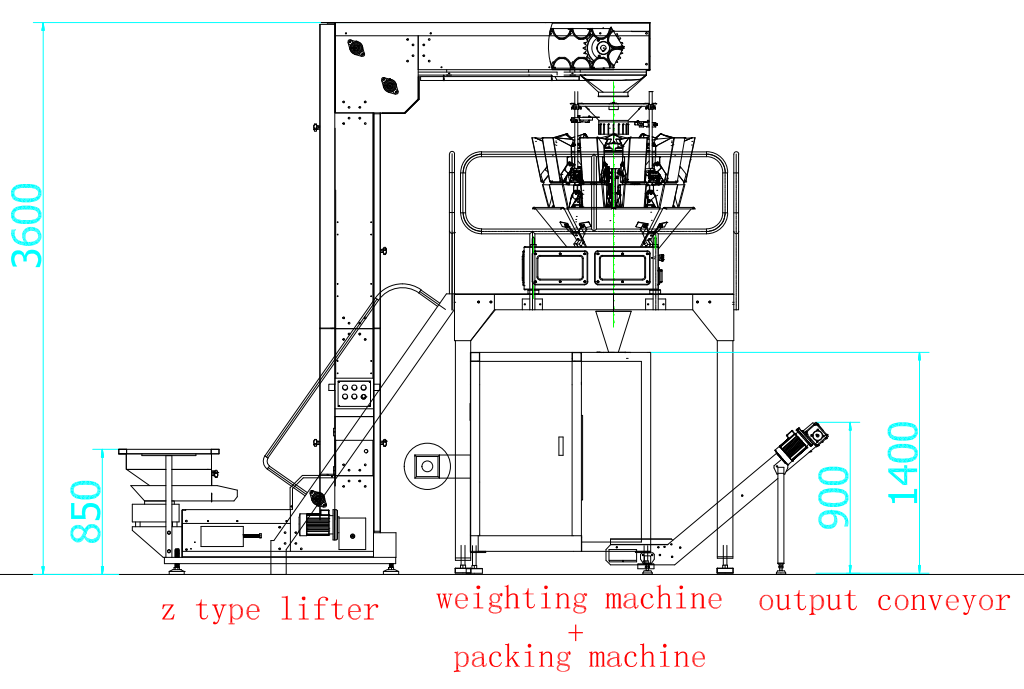

Constructions of bagging machine:
1. Lifing conveyer: take products from ground to filler machine
2. Dosing filler: there are different fillers as choices, such as: multihead scales, cups filler, auger filler etc.
3. Bagging machine: form fill seal bags/pouches
Optional parts:
1. output conveyor, support platform, checkweigher, metal detecter, date printe, punching hole etc.
Other OEM choice:
Technical Specification : |
Model |
FB-320 vertical bagging machine |
FB - 420 vertical bagging machine |
FB-520 vertical bagging machine |
FB-720 vertical bagging machine |
|
Measuring range |
150-800ml |
150-1500ml |
150-2000ml |
150-4000ml |
|
Packaging speed |
5-70bags/min |
5-60bags/min |
10-60bags/min |
10-60bags/min |
|
Bag width |
50-150mm |
60-200ml |
80-250mm |
100-350mm |
|
Bag length |
80-240mm |
80-300mm |
80-350mm |
100-450mm |
|
Film roll width |
Max.320mm |
Max.420mm |
Max.520mm |
Max.720mm |
|
Film thickness |
0.03-0.09mm |
|||
|
Film material |
OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film |
|||
|
Machine size(LxWxH) |
1185*935*1245mm |
1217*1015*1343mm |
1488*1080*1490mm |
1716*1260*1820mm |
|
Machine weight |
350kg |
450kg |
550kg |
700kg |
FU-BO is your right choice
