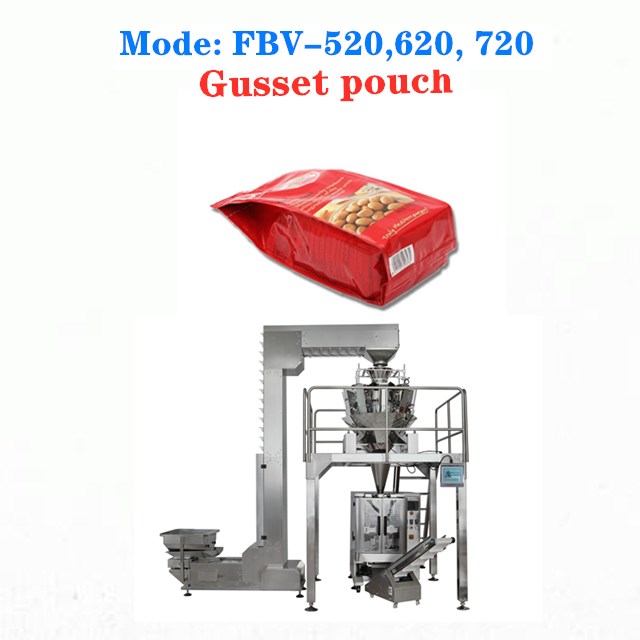

VFFS GUSSET POUCH PACKING MACHINE WITH 6 SIDES SEALED

  • Last update:2024-02-22
  • Page View:990

Scope of application

gusset pouch packing machine

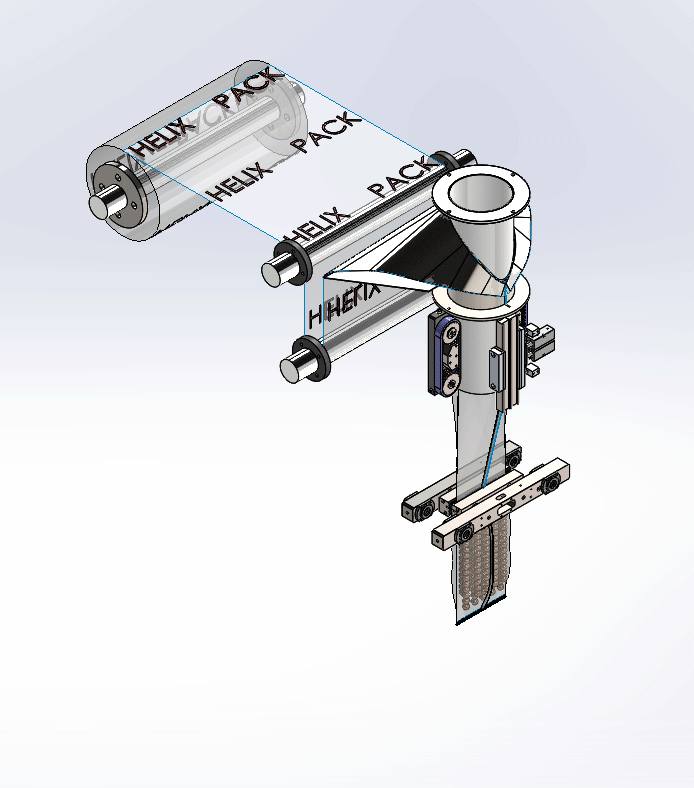

working theory

working theory

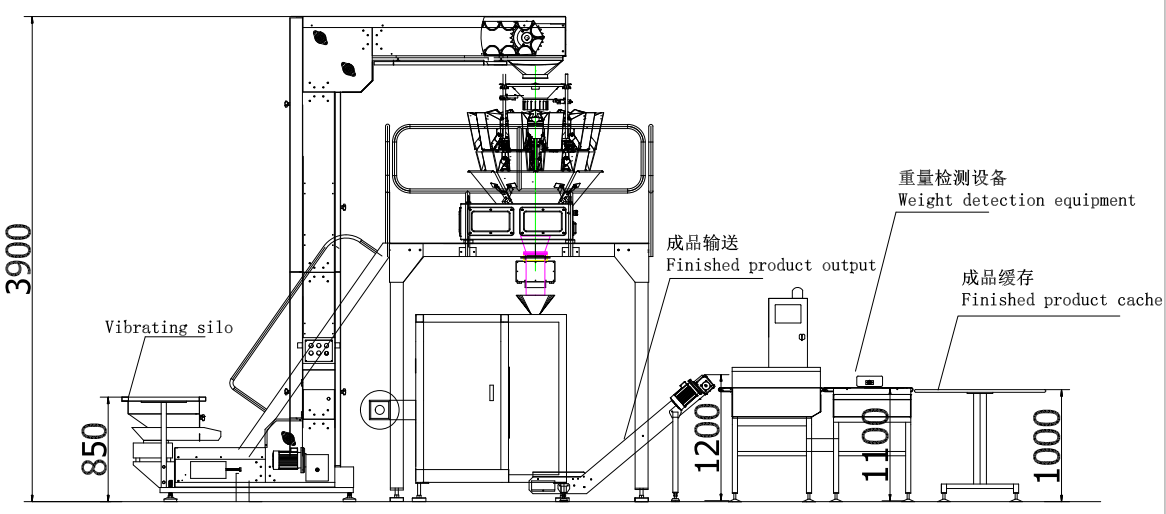

layout of machine

vertical pouch packing machine

General instructions of VFFS pouch packing machine:

  FBV series of VFFS pouch packing machine are widely used for packing food, chemicals, medicine etc. machine can be customized to packing liquid, paste, snacks, powder, solid products by equipping different fillers. VFFS pouch packing machine can be connect with output conveyors, checkweighr, metal detection equipement. Full system including functions: from fill seal, date print, punch holes, make gusset, vacuum etc.

sample packages:

vertical pouch packing machine


Application:

Applicable For Packing Liquid, powder, granules, chips, sauce, paste, puree, nuts, grains, food etc.

vertical pouch packing machine

Features & Mechanical Character :

Keyword:

VFFS packing machine, packing machine, packaging machine, pouch packing machine, plastic bag packing machine, sachet packing machine, food packing machine, powder packing machine, snacks packing machine, granules packing machine, vertical packing machine, weighting packing machine


Optional:

1. lifing conveyor: bulk conveyor, z conveyor, auger scerw conveyor, vacuum conveyor

2. filler system: multi-heads weighing scales, cups filler, piston filler, auger filler, counter filler, servo pump filler

3. printing machine: ribbon printer, laser printer, ink printer etc.

4. VFFS packing machine: FBV-300, FBV-320, FBV-420, FBV-520, FBV-620, FBV-820, FBV-1120 for packing different size of pouches


Control System : PLC + Servo +  Touch Screen
Cutting Type :1.Flat Cutting, 2.Zigzag Cutting, 3.Continuous Cutting,  4.Customized Special Shap Cutting
Optional device Date Coder, Air-filling Device, Tear Notch Device

Technical Specification :

Modal

FB-320 vffs packing machine

FB - 420 vffs packing machine

FB-520 vffs packing machine

FB-720 vffs packing machine

Measuring range

150-800ml

150-1500ml

150-2000ml

150-4000ml

Packaging speed

5-70bags/min

5-60bags/min

10-60bags/min

10-60bags/min

Bag width

50-150mm

60-200ml

80-250mm

100-350mm

Bag length

80-240mm

80-300mm

80-350mm

100-450mm

Film roll width

Max.320mm

Max.420mm

Max.520mm

Max.720mm

Film thickness

0.03-0.09mm

Film material

OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film

Machine size(LxWxH)

1185*935*1245mm

1217*1015*1343mm

1488*1080*1490mm

1716*1260*1820mm

Machine weight

350kg

450kg

550kg

700kg
