6 lanes powders packing machine

  • Last update:2021-10-09
  • Page View:1233

Scope of application

6 lanes powder packing machine

Applications:


Multilane powder packing machine, suitable for powder, such as coffee powder, medicine powder, health powder, and etc

6 lanes powder packing machine

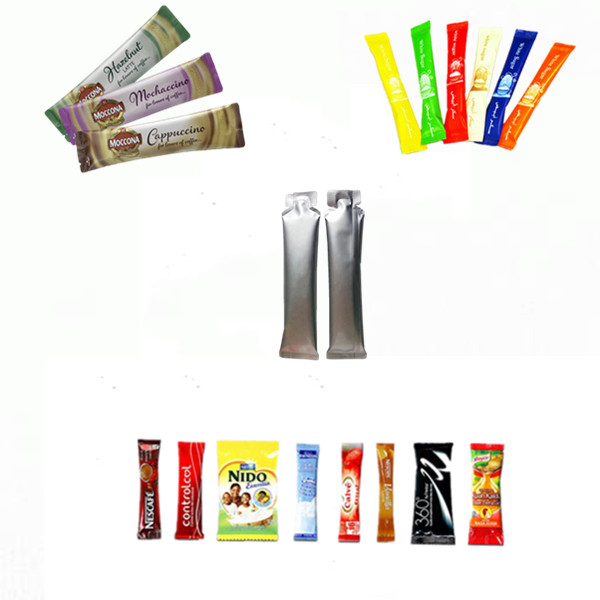

package samples:

6 lanes powder packing machine

Features & Mechanical Character :

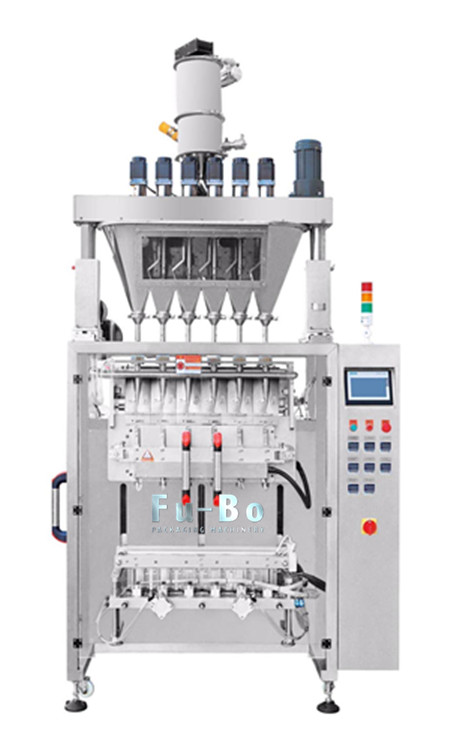

I.  Powder Packaging machine Description:

  This 6 Lanes Powder Packaging machine adopts worldwide advanced technology,  is high performance, reliable, fully automated, multilane vertical  powder packaging machine is with electro-pneumatic drive. It is suitable for powder, fine powder, coffee powder into stickpacks.

  All parts that come into contact with goods of food character are made of stainless steel AISI 304 (upon a special request also in AISI 316L). The Coffee powder packaging machine is possible to combine with other optional accessories,   further handling (cartoning station, carton box, completion etc.)

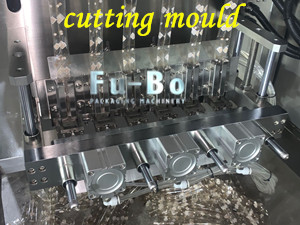

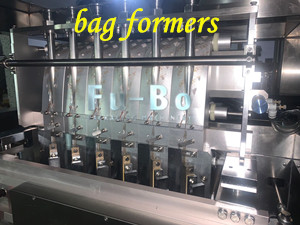

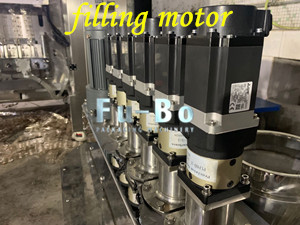

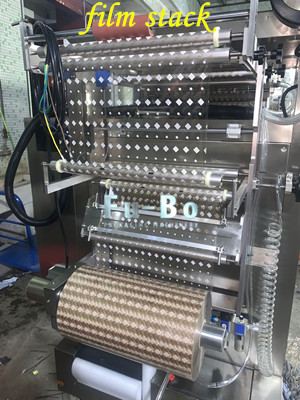

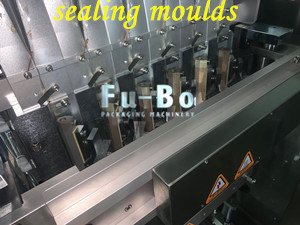

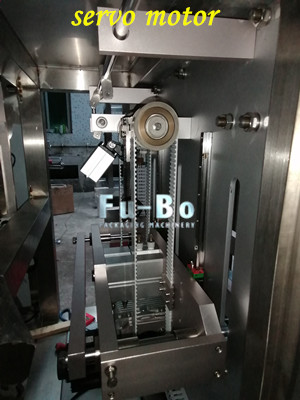

Details pictures of machine:

6 lanes powder packing machine6 lanes powder packing machine


6 lanes powder packing machine6 lanes powder packing machine


6 lanes powder packing machine6 lanes powder packing machine

Technical Specification :

Model

FBV-480SY

FBV-720SY

FBV-960SY

Measuring

auger filler/scales filler/cups filler etc.

Bag Shape

4 Sides Sealing/back sealing

Packing Speed

25-45 sticks/min/lane ( 2-12 lanes are available)

Max Roll Film Width

480mm

720mm

960mm

Bag Length

50-120mm

Bag Width

30-60mm

30-90mm

30-120mm

Machine Dimension(L*W*H)

950*1470*1750mm

1153*1654*1750mm

1415*1686*2130mm

Weight

300KG

400KG

500KG

Power

220V/380V,50/60HZ,

2.8KVA

220V380V,50/60HZ,

4.1KV

220V/380V,50/60HZ 5.5KVA
