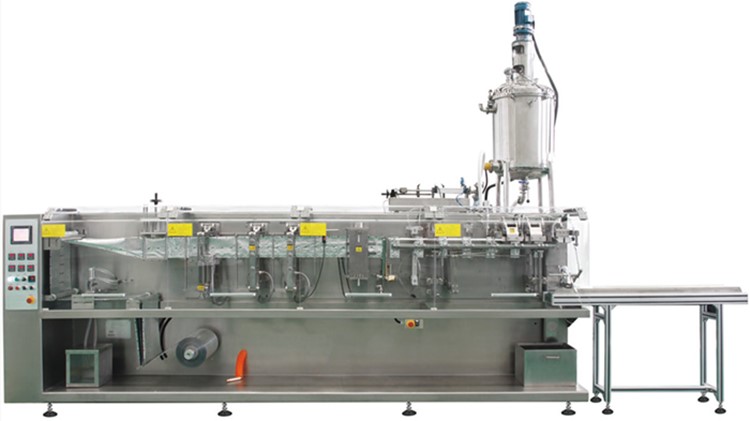

FB-180 type HFFS sachet packing machine

  • Last update:2023-11-28
  • Page View:230

Scope of application

  FB-180 Horizontal type Sechets form fill seal machines are suit for packing liquid, solid products, powder products by equipping with related dosing filling parts. whole system are designed be automatically controlled by PLC. our machine includeing functions :  automatical form fill seal, shaped cut by die moulds, date printer, alarming, UV sterilizing etc.



HFFS sachet packing machine               HFFS sachet packing machine               HFFS sachet packing machine

  FB-180 Type of packing machine can be customized to make 3 sides sealed sachets, 4 sides sealed pouch, twins sachets, shaped pouches , spout bags etc.

  We deisgn machine are according with requirements from customers. we accept OEM service, too.


HFFS sachet packing machine               HFFS sachet packing machine              HFFS sachet packing machineHFFS sachet packing machine                                          HFFS sachet packing machine


Features & Mechanical Character :


HFFS sachet packing machine

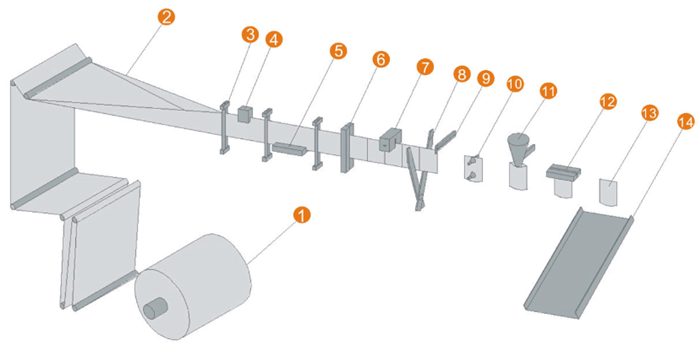

MACHINE PROCESSING STEPS: (机械运行流程图)

HFFS sachet packing machine

what functions of  HFFS packing machine?
1.Film Unwind 2.Bag Forming 3.Film Guide 4.Photocell 5.Bottom Seal 6.Vertical Seal 7.Tear Notch 8.Cutting 9.Pouch Pulling 10.Pouch Opening 11.Filling 12.Top Seal 13.Finished Product 14.Outlet
1. 放膜机构 2.包装膜成型 3. 包装膜导向 4. 色标检测5. 底封机构 6. 竖封机构 7.易撕口装置 8. 剪切机构 9. 牵袋机构  10. 开袋机构 11. 充填 12. 上封  13. 成品 14. 成品输出


FB-180 HFFS packing machine are Suit for products/包装产品:
it can be applied for packing of juice, yogourt, syrup, coffee powder, detergent powder, coffee beans, peanuts, ect
适合包装粉剂,液体,颗粒等


What kind of sachets can be made by machine?
Sachet machine series are dedicated to 3 sides or 4 sides flat sachet forming by roll film, liquid or solid filling, thermal top sealing. It can automatically packing product in standard 3 sides or 4 sides flat sachet, zipper sachet, center spout sachet, or linked sachet with suitable packaging machine model.
适合袋形:3&4边封袋,平面冲孔袋,平面拉链袋,平面多连袋,平面异形袋


Why customer choose HFFS packing machine inside of VFFS packing machine?

1.HFFS packing machine made sachets in different way, compare with VFFS packing machine, horizontal type

  of packing machine have more wrok stations and each station are individually controlled

2. Horizontal sachet packing machine make sachets before filling. and horizontal packing machine cold     sealing moulds, it's make beautiful sachets compare with VFFS packing machine

3. High grade prodcts, customers are prefer HFFS packing machine, such as midecine products, beauty products, healthy products etc.

Technical Specification :

Type

型号

Width of pouch

制袋宽度

Length of pouch

制袋长宽

Speed of machine

机械速度

Power

功率

Dimension of machine

机器尺寸

Weight of machine

机器重量

FB-160

70-160mm

70-190mm

40-80 ppm

4.5kw

3200*970*1500mm

900 kgs

FB-180

70-180mm

70-225mm

40-120 ppm

5kw

3500*970*1500mm

1400 kgs

FB-240

120-240mm

120-320mm

40-120 ppm

6.5kw

4600*1120*1500mm

2000 kgs
