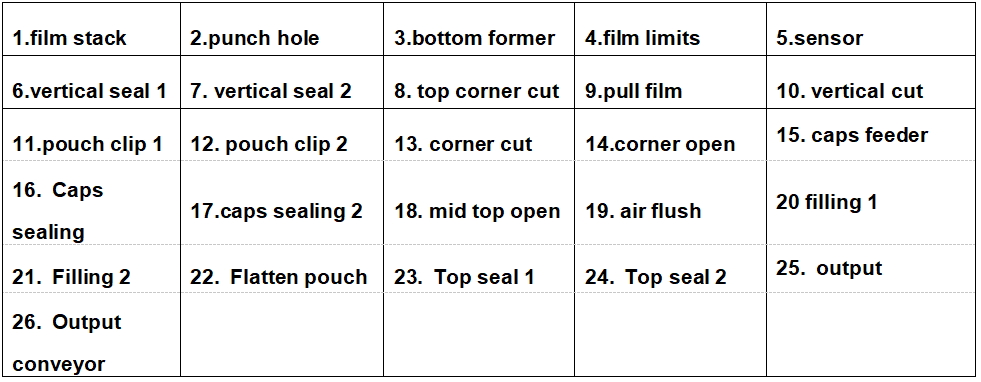

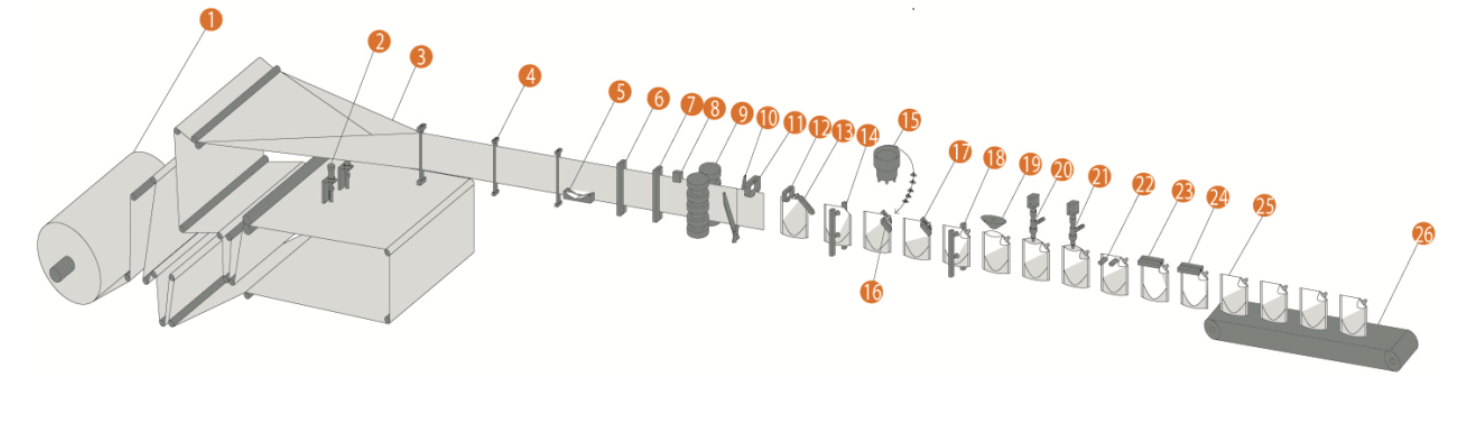

FLOWCHART OF MACHINE:
keywords of machine
doypack machine
stand up pouch packing machine
doy pack packaging machine
spouted pouch filling machine
doypack packaging
stand up pouch filling and sealing machine
stand up pouch sealing machine
stand up pouch machine
stand up pouch filling machine
used stand up pouch filling machine
manual spout pouch filling machine
stand pouch packing machine
doypack filling machine
stand up pouch machine manufacturers
stand up pouch packaging machine
mini doypack machine
spout packing machine
spout filling machine
doy bag packaging
standing pouch sealing machine
spout pouch machine
hand feeding spout pouches filling machine
standy pouch packing machine
spout bag filling machine
spout pouch packing machine
spout pouch filling and capping machine
stand pouch packing machine price
doy bag packaging machine
FB-180SP suitable for filling packing different liquid, paste and cream products such as water, oil, milk, juice, ketchup, tomato sauce, peanut butter, honey, mayonnaise, liquid detergent, shampoo, body washing and other non free-flowing liquid when equipped with different filling machines like Piston Pump Filling, Peristaltic Pump Filling, Haibar Pump Filling. With the suitable filling solution to meet the filling accuracy and packing speed requirements and avoid the liquid material bubble, forming, dripping, and splashing.

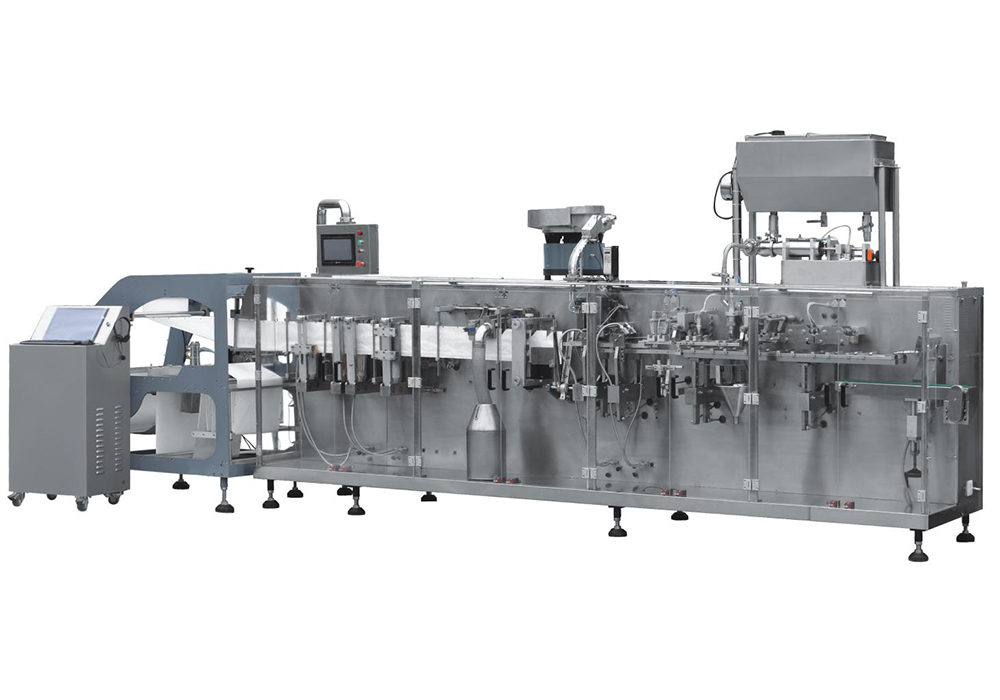

The horizontal pouch packaging machine is a fully-automatic packing machine, which is widely used for food / beverage /cosmetics/chemicals/pharmaceuticals packaging.
The packing material can be regular laminated film such as, PE / AL / PET PE / NY / AL / PET; CPP / NY / AL / PET.
The packing machine can be used to pack granules like peanuts, beans, seeds, candies etc;
Liquid like shampoo, milk, juice, etc.; Paste like tomato paste, mayonnaise, sauce etc.;
Powder like spice, milk powder,detergent powder, coffee powder, etc. with different corresponding measuring and filling device.
|
Model
|
FB-180SP
|
|
Measuring range
|
Within1000 ml or customized
|
|
measuring method
|
piston pump filler
|
|
bag size
|
length 95-230mm width90-180mm
|
|
Capacity(max)
|
20-50 bags/min
|
|
Control style
|
PLC+ English touch screen
|
|
Power
|
8KW
|
|
Power supply
|
AC 380V 50Hz
|
|
Air pressure
|
0.6Mpa
|
|
Weight
|
N.W.:2150Kg
|
|
Dimensions(mm)
|
5900(L)×1210(W)×1500(H)
|
|
Bag shape
|
Stand up pouch ( add caps)
|
