Product Application

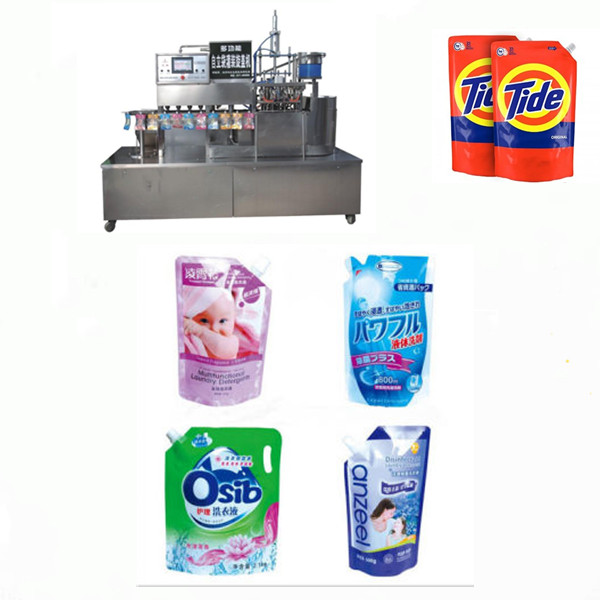

1)Automatic spout pouch filling and capping machine is suitable for liquid or semi-liquid,such as packing jelly, soy milk, yogurt, mineral water, juice, ice cream, edible oil, seasoning, scour, laundry detergent etc;
2)This is a full automatic production line with such processes as automatic pouch-loading, vacuuming, fixed-position filling, nitrogen flushing, clean spout, cap feeding and inserting, capping (applying magnetic adjusting torque for rather stability), discharging;
3)This machine can be connected CIP cleaning system, PLC control and touch screen system, air-purifying system, safeguard switch, glass cover. All of these functions can be added or removed according to the clients' requirements.
4)This machine use world famous electrical and pneumatic components, such as OMRON and SIEMENS/Mitsubishi PLC, WEINVIEW and SIEMENS/Mitsubishi touch screen, Schneider switches, AIRTAC and FESTO cylinder.
a. Automatic pouch-loading, safe stable work saving .

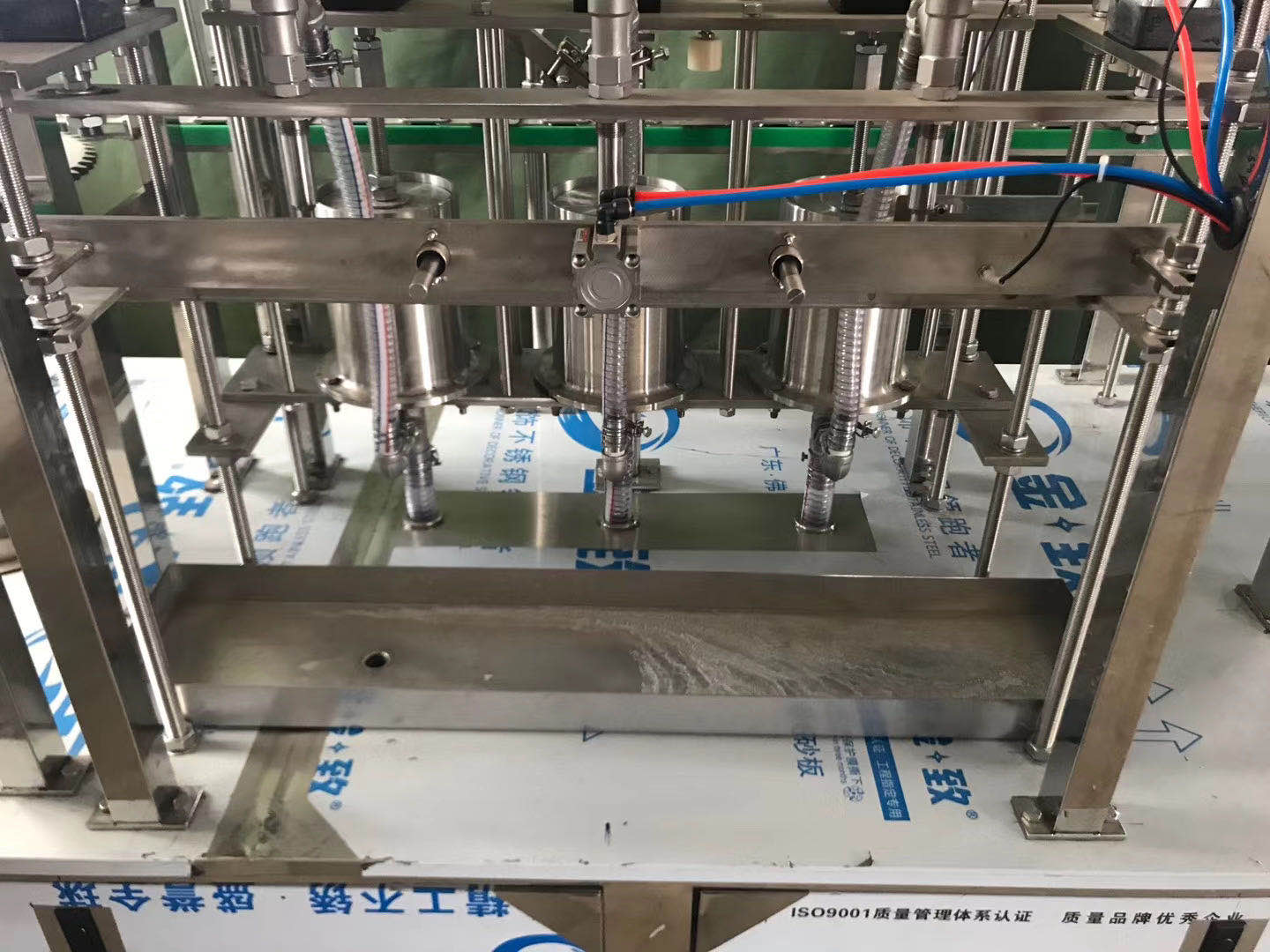

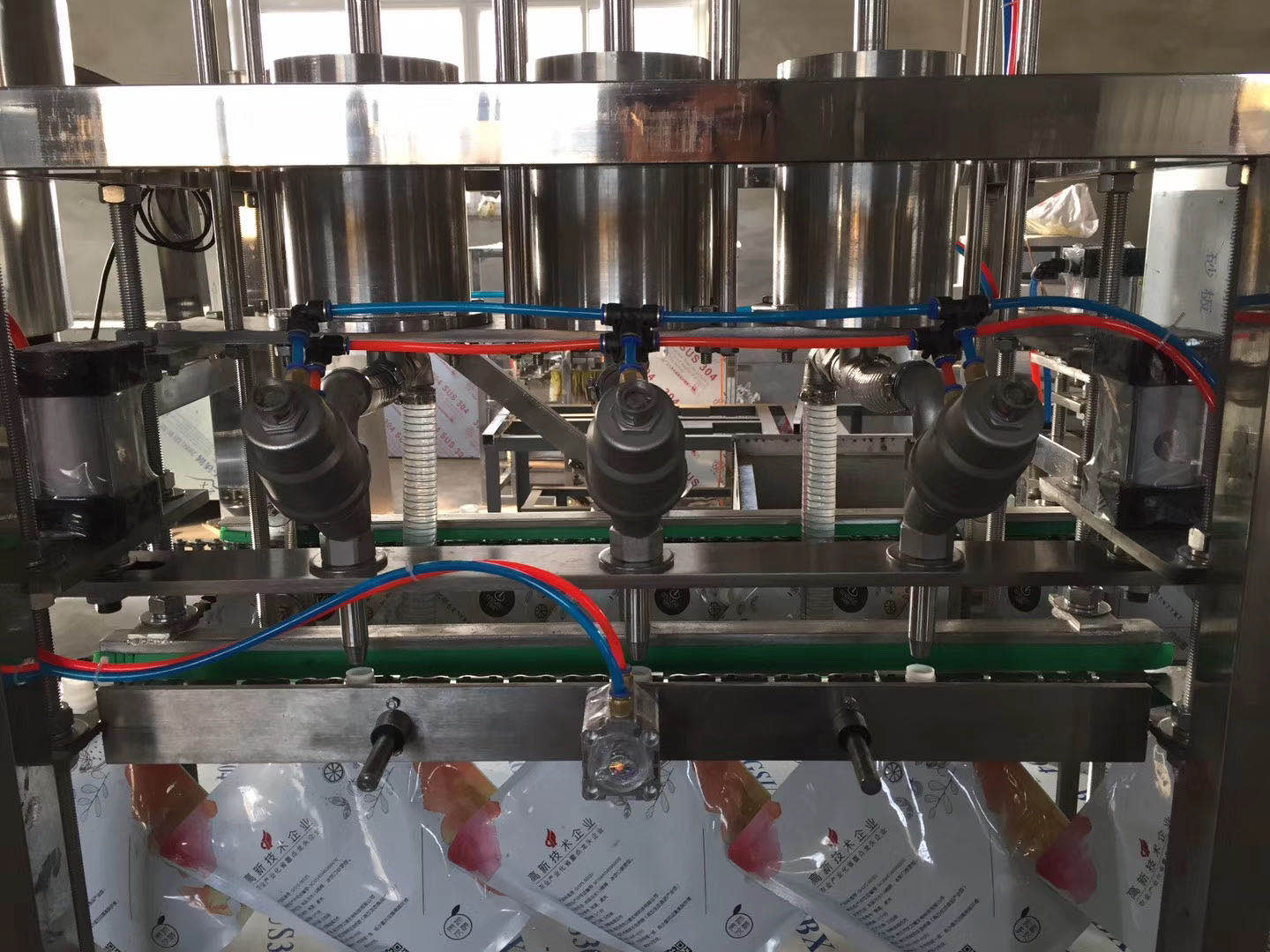

b. Anti-Drip filling nozzle, Food grade precise , No leakage, Bag detective .
c. Independent control cylinder. Independent adjustable Precise filling Durable.
d. Magnetic capping head, Constant magnetic strength, Intensity adjustable, Stable performance.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
6) PLC control can keep the machine work stable.Machine frame use U-steel with Waterproof and rust prevention process, Out packed by Stain steel #304/316. Also can be customized all materials are SS304.
Operation Processing
Automatic pouch loading, no pouch detector, filling, spout cleaning, feeding and inserting cap, capping, discharging, transport(If connected with conveyor belts).
Technical parameters

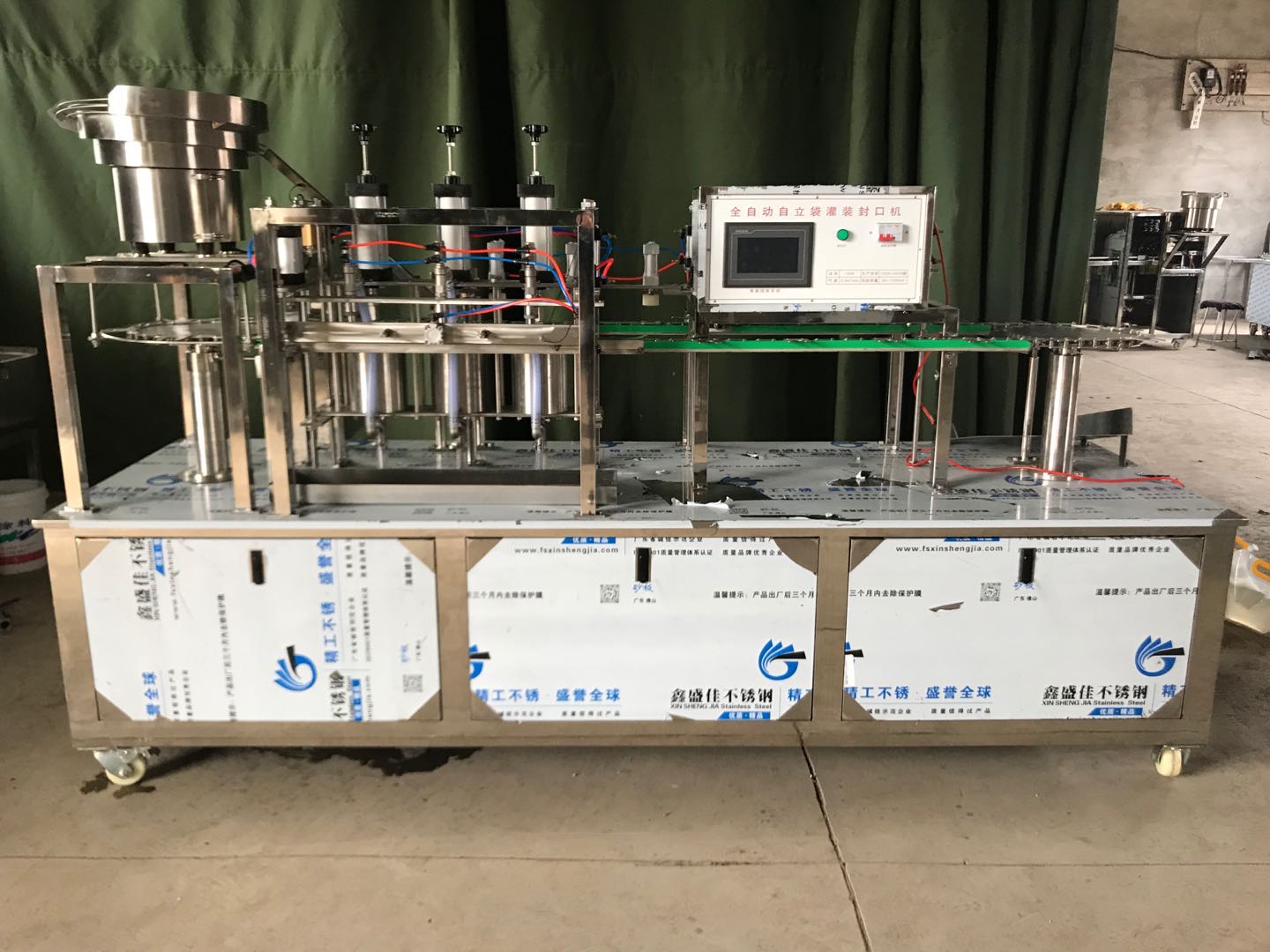

Model : FB-S3 (3heads)
Packing Speed : 1500 pouches/hour, can be customized
Filling volume: 500ml-2500 mls(can be customized)
Power : 220V/380V , 50HZ
Motor power : 1.5kw
Air pressure using : 0.5-0.7Mpa
Max air consumption: 0.45m3/min (external link air sourse)
Overall size: 2000X1300X1650mm
Weight: 700kg
