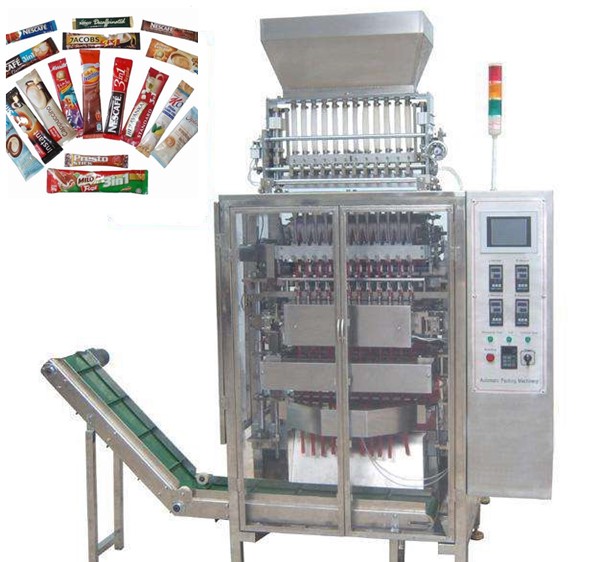

full automatic coffee packing machine
coffee packing boxing machine powder
automatic drip coffee packing machine
Packing range
It’s widely used in food, medicine and chemical product that are in the loose, non-sticky granolas, such as drugs granular, instant coffee, MSG, sugar, desiccant and so on it can also be used for power, liquid and viscous liquid packaging.
Function
Packaging features include automatic feeding, metering, bagging, filling, and sealing, printing date, output and a series of automatic functions. With feeder of this machine changed greatly, instead of single material, this machine adopts different materials on different feeder, so as to meet the needs of different users.
Packing materials
nylon membrane / polyester composite film, polyester film / polyester composite membrane, nylon membrane pure aluminum foil / polyester film composite, polyester film / aluminum foil composite pure polyester film and sealing of other available together functional composite materials. (packaging materials can not be flammable, explosive, perishable, such as the inclusion of hazardous chemicals or substances, materials) Maximum width of bag material: 350mm; package build the largest diameter: φ280mm;
Packet core diameter material: φ75mm; package thickness :0.05-0 .1 mm
Main features:
"7" color touch screen + OMRON PLC, error prompt, self diagnostic function
Taiwan AIRTAC pneumatic module
OMRON 6 PID temperature control
Schneider or OMRON electrical components
OMRON servo pouch pulling system
Automatic film breaking detection system
The whole machine is made of 304 Stainless steel,including the prat in contact with the material
New European standard design, welded frame
Standard safety door switch (Passionic door safety switch)
Photoelectric adjustment mode: Gear rack

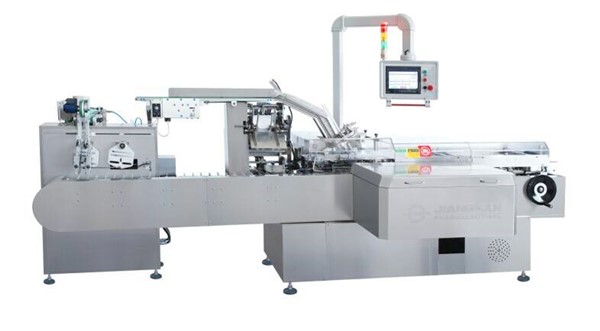

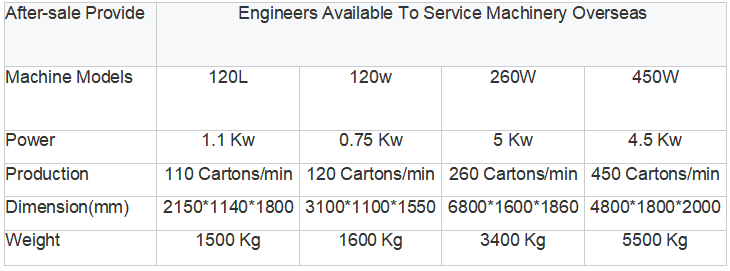

Boxing machine
It is widely used for different packing including drug, food, commodity and cosmetic. For drug industry such as: cover box for solid torch and capsule, soft box for liquid paste, grease and colloid, tray box for vial, ampule bottle, and injector, as well as bottle box for solid and liquid drug and bag bx for powder and grain products. For food field such as: carton for cans, sweet, chocolate, candy, biscuit, wine, and freezing food, and so on. For commodity and cosmetic industry such as: carton for cream, grease, lotion, colloid, soap, lamp, computer floppy disk
