Ｋey words:
Pillow sachet 3 sides sealing 4 sides sealing pouch sachet packing machine
Pillow packing machine , 3 sides sealing packing machine 4 sides sealing machine, triangle bag packing machine
Spices , snacks , powder , sauce packing Machine , pouch packing machine , sachet packing machine , bag packing machine . Doypack packing machine , ziplock pouch packing machine
Applicable Product
Kinds of powder ( milk powder, coffee powder), Oat, Seasonings, Chocolate, Seed, Salt, Nuts, Sugar, etc.
Technical Feature

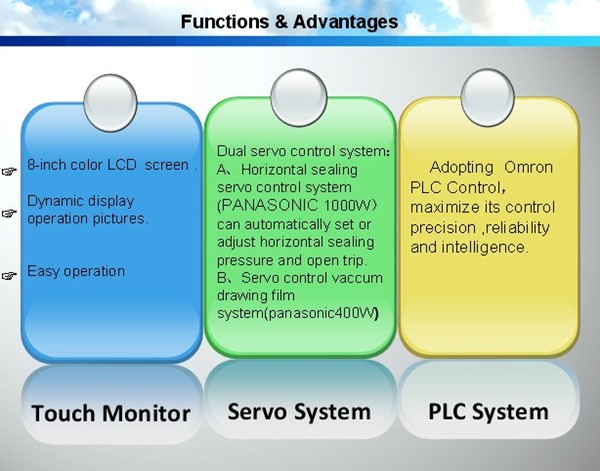

◆ PLC controller with touch screen interface.
◆ Servo drive for film pulling system.
◆ Pneumatic driven horizontal end sealing.
◆ Intelligent temperature control, sealing more perfect.
◆ Eye mark sensor for film tracking.
Optional Device
● Tear notch device
● Hole punch device.
● Static eliminator.
● Date printing.
● 4-side seal or triangle pouch device.
● Chain bags & multi-bags half cut-off function.
● Nitrogen gas flushing.
● Air exhaust device.
Size :1500*1000*1900mm
Weight: 500 kgs
Power: 3 kw
Packing speed: 15 to 80 pieces per minute
Type: Servo roll wheel
Sachet range(need customized) Length: 45-180mm width：30-140mm
Max diameter of roll film ≤φ450mm
Max width of film 220mm
Thickness of film 5-10 micron
Speed: 40 sachet/minute
power 3.5 Kw
Voltage: 220V/50Hz
Outside dimension length1450mm*width1500mm*height2300mm
Weight of machine 350 kgs
