2 heads spouted pouch filling machine_other packing machines_Shanghai Fubo Packaging Machinery Co.,Ltd.

Scope of application

juice spouted pouch filling capping machine

Widely used for a variety of products, such as jelly, milk, butter, fruit juices, paste, chemical liquid,

water food sauce, beverages and so on.

food sauce

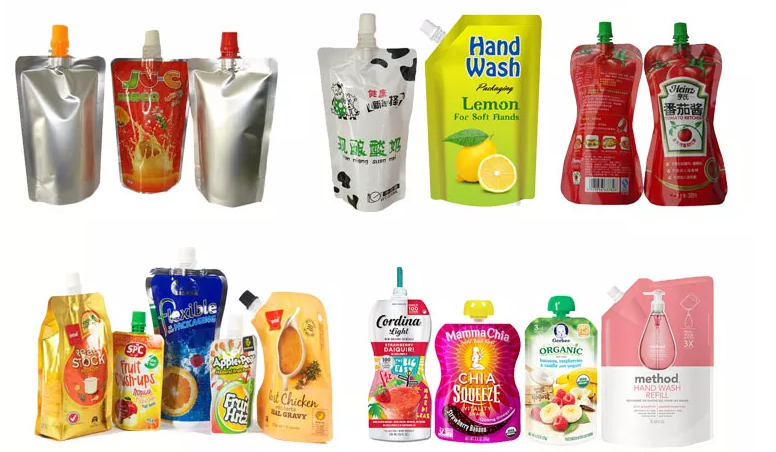

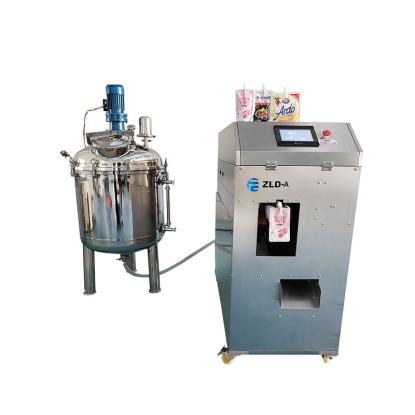

Automatic spout pouch juice filling capping machine , it is suit for most of pouches with spout

Features & Mechanical Character :

Except for manual hanging pouches, other processes are automatic, such as sending pouches, sending caps,

filling, capping, pouch unloading, counting, etc. It suits almost liquid, semi-liquid with different products,

such as Pure Water, Beverage, Flavored Juice, Fresh Milk, Yogurt, Soybean Milk, Jam, Gel, Cooking Oil,

Liquid Detergent, and Daily Chemical, etc. It is an ideal choice for the small and medium-sized enterprise.

Keyworks:

spout doypack filling machine, juice pouch filling capping machine, spouted bag filling machine, small business filling machine,

doypack filling capping machinie, stand up pouch filling capping machine, beverage pouch filling capping machine

Technical Specification :

Technical data 机械参数
Model 型号		FB-ZLD-A1	FB-ZLD-A2
Production capacity :灌装速度		1000-1800 pouches/hour	1000-1800 pouches/hour
Filling nozzle ：灌装头数		2	2
Capping head ：旋盖头数		2	2
Piston pump ：灌装泵体		1	2
Once Filling capacity ：单次灌装量		≤310ml(customizable)	≤620ml (customizable)
Continuous filling times：连续灌装次数		3	3
Max. Filling capacity：最大灌装量		900ml	1800ml
Liquid temp. 灌装温度		0-100℃	0-100℃
Filling Accuracy 灌装精度		±1%	±1%
Spout pouch 吸嘴袋	Spout size尺寸	8.6mm,10mm,12mm (Choose one or customizable)
	Material材质	PET/PE/NY/CPP/AL/CPP various 2-layer, 3-layer composite film
	Max. height最大调试	≤220mm (customizable)
	Max. width最大宽度	≤150mm (customizable)
Power input 电压		220V 50Hz 0.2 KW	220V 50Hz 0.2 KW
Air Consumption 空气消耗量		0.6-0.8 Mpa 0.40m³/min	0.6-0.8 Mpa 0.60m³/min
Net weight 机械净重		160kg	180kg
Overall dimension 机械尺寸		17606001400mm	17606001400mm
Gross weight 机械毛重		200kg	220kg
Packaging dimension包装尺寸		14008001500mm	14008001500mm
