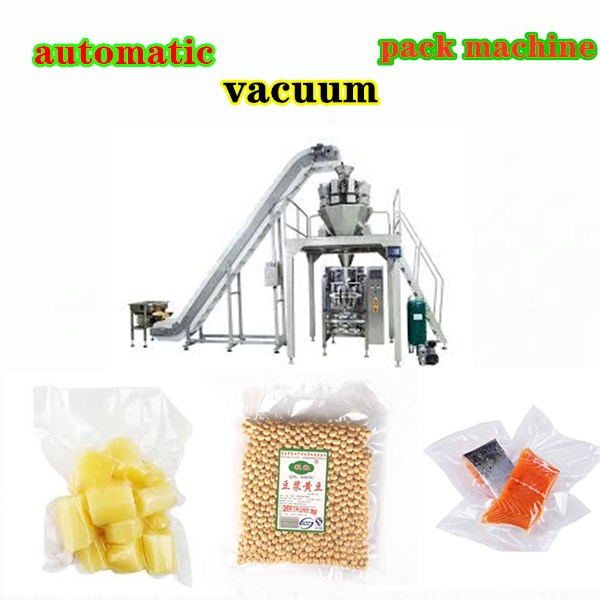

VFFS vacuum pouch packing machine_Vertical Form Fill Seal Machine (VFFS)_Shanghai Fubo Packaging Machinery Co.,Ltd.11

Scope of application

Features & Mechanical Character :

Keywords

vacuum packing machine, automatic vacuum packing machine, grains vacuum packing machine, frozen food vacuum packing machine, sea food vacuum packing machine, nuts vacuum packing machine, fruits vacuum packing machine, VFFS vacuum packing machine, vacuum weighting packing machine

Applications

fish ball, meat ball, chop meat, frozen food, grains, granules, nuts, dates, meat, fruits, garlic, snacks, sea food, dried food etc.

sample packages

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Control System

PLC + Servo + Touch Screen

Cutting Type

1.Flat Cutting, 2.Zigzag Cutting, 3.Continuous Cutting, 4.Customized Special Shap Cutting

Optional device

Date Coder, Tear Notch Device

Technical Specification :

Modal	FB-320	FB - 420	FB-520	FB-720
Measuring range	150-800ml	150-1500ml	150-2000ml	150-4000ml
Packaging speed	5-70bags/min	5-60bags/min	10-60bags/min	10-60bags/min
Bag width	50-150mm	60-200ml	80-250mm	100-350mm
Bag length	80-240mm	80-300mm	80-350mm	100-450mm
Film roll width	Max.320mm	Max.420mm	Max.520mm	Max.720mm
Film thickness	0.03-0.09mm
Film material	OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film
Machine size(LxWxH)	*11859351245mm*	*121710151343mm*	*148810801490mm*	*171612601820mm*
Machine weight	350kg	450kg	550kg	700kg

PRODUCT

VFFS vacuum pouch packing machine
