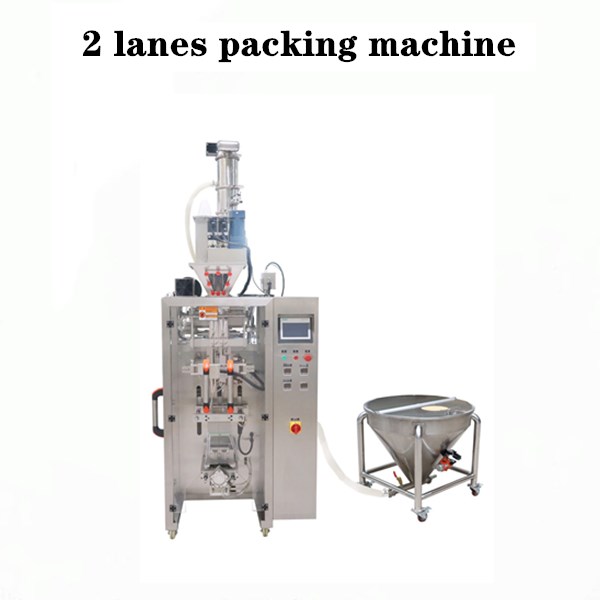

2 lanes stick sachet powder packing machine

  • Last update:2021-10-09
  • Page View:894

Scope of application

2 lanes stick sachet packing machine2 lanes stick sachet packing machine

keywords:

multi lane packing machine

multi lane powder packing machine

multi lane stick sachet packing machine

stickpack machine

Features & Mechanical Character :


sample sachets

Applicable For Packing Powder Materials And Granular Materials Such As Coffee Powder, Medicinal Powder,Chemicals Powder, Sugar, Salt, Coffee, MSG, Seasoning,Etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Feature:
1. English and Chinese screen display, operation is sample.
2. PLC computer system, function is more stable, adjustment any parameters not need stop machine.
3. It can stock ten groups of parameters, simple to change variety.
4. Servo motor drawing film, positing accurately.
5. Temperature independent control system, precision get to 1 degree.

6. Horizontal, vertical temperature control, suitable for various of mix film, PE film bag material etc.



Control System PLC + Servo +  Touch Screen
Cutting Type 1.Flat Cutting, 2.Zigzag Cutting, 3.Continuous Cutting,  4.Customized Special Shap Cutting
Optional device Date Coder, Air-filling Device, Tear Notch Device

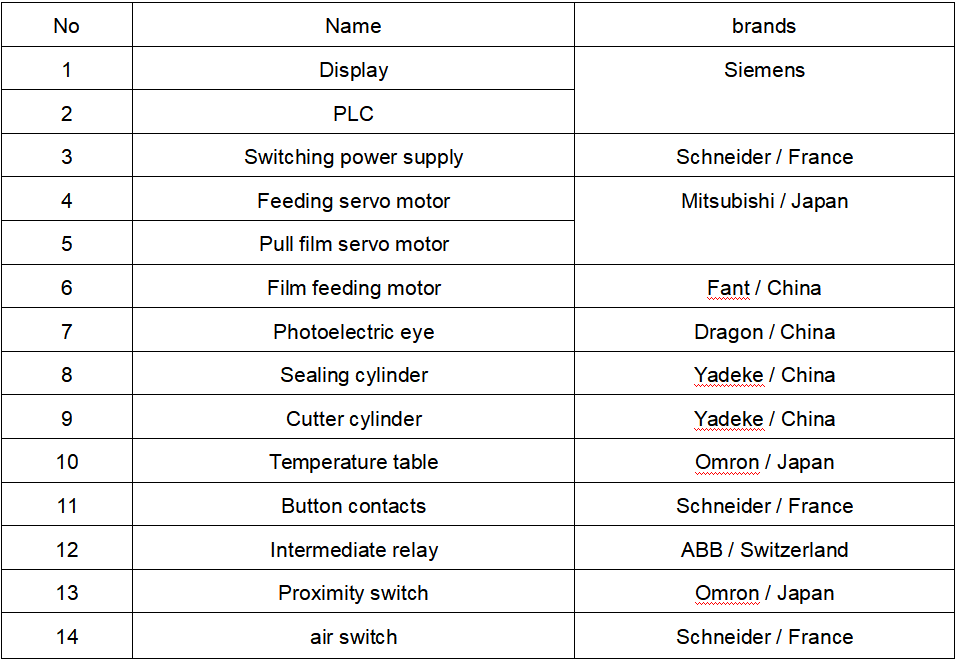

components:

components of packing machine


Technical Specification :

Model

FBV-480SY

FBV-720SY

FBV-960SY

Measuring

auger filler/scales filler/cups filler etc.

Bag Shape

4 Sides Sealing/back sealing

Packing Speed

25-45 sticks/min/lane ( 2-12 lanes are available)

Max Roll Film Width

480mm

720mm

960mm

Bag Length

50-120mm

Bag Width

30-60mm

30-90mm

30-120mm

Machine Dimension(L*W*H)

950*1470*1750mm

1153*1654*1750mm

1415*1686*2130mm

Weight

300KG

400KG

500KG

Power

220V/380V,50/60HZ,

2.8KVA

220V380V,50/60HZ,

4.1KV

220V/380V,50/60HZ 5.5KVA
