Scope of application

ice pop sticks pouch packing machine

Features & Mechanical Character :

Automatic Packing Machine:

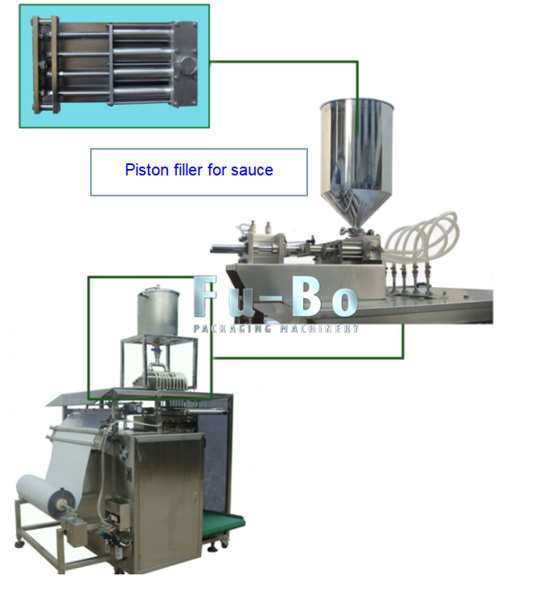

PLC Controlled, equipped with piston pump filling system. Applicable for the liquid/sauce package.

Standard Features:

It integrates metering, bag-making, packaging, sealing, printing and counting.

Standard positioning with servo film transporting system; stable for transporting film with two synchronous belts;

High automation with auto correction function.

Reasonable structure, convenient adjusting operation and maintenance.

It is equipped with advanced level switch and static eliminator

Specification:

The maximum width of packing film: 480mm(diameter)

Thickness of film: 0.04-0.10mm

Bag making mode: four sides seal

Range of measuring: 1-100ml

Air consumption: 200L/min; 0.7Mpa

Power/voltage: 2.7 KW/220V, 50 Hz

Dimension (LxWXH):125cm×190cm×250cm

Weight: 480kg

Body: Stainless steel for material contact part and machine body

Pictures:

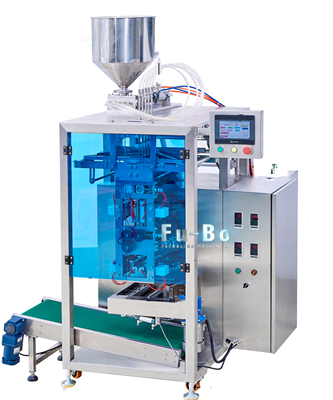

ice pop sticks pouch packing machine

Technical Specification :

Model	FBV-480SY	FBV-720SY	FBV-960SY
Measuring	auger filler/scales filler/cups filler etc.
Bag Shape	4 Sides Sealing/back sealing
Packing Speed	25-45 sticks/min/lane ( 2-12 lanes are available)
Max Roll Film Width	480mm	720mm	960mm
Bag Length	50-120mm
Bag Width	30-60mm	30-90mm	30-120mm
Machine Dimension(LWH)	95014701750mm	115316541750mm	141516862130mm
Weight	300KG	400KG	500KG
Power	220V/380V,50/60HZ, 2.8KVA	220V380V,50/60HZ, 4.1KV	220V/380V,50/60HZ 5.5KVA
