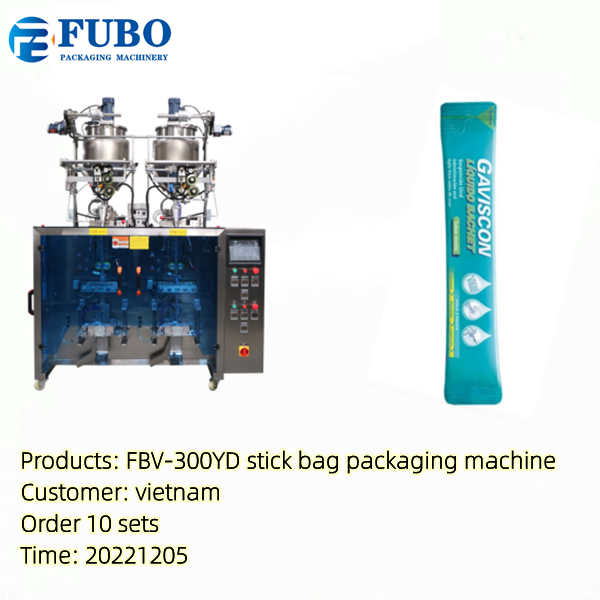

FBV-300YD stick sachet liquid packaging machine

  • Last update:2023-06-07
  • Page View:12318

stick sahet packaging machine

1.  FBV-300YD stick sachet packaging machine with die moulds, packing system is equipped with piston filler for filling  liquid/sauce products

2. Functions of packing machine: form fill seal, shape die cut, date printing, heating and mixing, automatic counting, alarm, emergency stop, uv lamp etc.

3. Good components, such as: seimens, Omron, SMC, machines are made of SS304/SS316 according with requirments from customer

4. Easy construction, easy operation, whole life warranty

stick bag packaging machine

Keyword:

#stick bag packing machine #vffs #liquid packing machine #stick sachet packaging machine

Applications of FBV-300YD stick sachet packing machine

Type of sachets ----- stick sachets, shaped sachets, 3 sides sealing sachets, 4 sides sealing sachets, pillow bag, linking bags etc.


stick bag packaging machine

Products --- jelly, liquid juice, honey, cream, sauce, gel, jams, paste, energy gel, enzymes products etc.

stick bag packaging machine

TYPE OF MACHINE 机械型号

FBV-300YD VFFS LIQUID SACHET PACKING MACHINE

PACKING SPEED/MINUTE 包装速度/每分

50-120 bags/minute

PACKING DIMENSION 包装尺寸

Width/宽 : 20mm - 150mm

Length/长 : 30 mm - 180 mm

DIAMETER OF PACKGE ROLL 卷膜直径

Max 450 mm

POWER 电源

110v/220v/380v customized  (定制)

WEIGHT 机械重量

600 kgs/set

SIZE OF MACHINE 机械尺寸

1000*1400*2100mm
