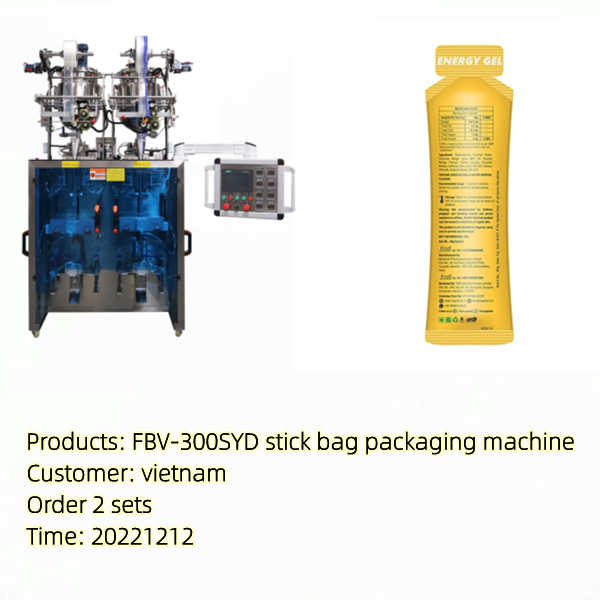

FBV-300SYD irregular shape stick bags form fill seal machine

  • Last update:2023-02-17
  • Page View:57541

stick bag packaging machine

1. Automatic FBV-300SYD stick bags packaging machine matching international food grade, it's made of SS304 materials, and adopting famous brand control system. like seimens, Omron, SMC etc.

2. FBV-300SYD packing machine programed with servo control system,  it's stable and durable than normal packaging machines

3. functions included ---  form fill seal, dosing, date printing, counting, shape die cut , easy tear, heating, mixing etc.

stick bag packaging machine

  FBV-300SYD stick bag packaging machine to make series of bags , such as: stick bags, shaped bags, 3 sides sealed bags, 4 sides sealed sachets

stick bag packaging machine

Applications of products:

FBV-300SYD vffs packaging machine with pistion filller for packing energy gel, shampoo, honey, jelly, sauce, juice, ice pop, water, cream, cosmetics etc.


TYPE OF MACHINE 机械型号

FBV-300SYD VFFS SERVO SYSTEM PACKING MACHINE

PACKING SPEED/MINUTE 包装速度/每分

50-120 bags/minute

PACKING DIMENSION 包装尺寸

Width/宽 : 20mm - 150mm

Length/长 : 30 mm - 180 mm

DIAMETER OF PACKGE ROLL 卷膜直径

Max 450 mm

POWER 电源

110v/220v/380v customized  (定制)

WEIGHT 机械重量

600 kgs/set

SIZE OF MACHINE 机械尺寸

1000*1400*2100mm
