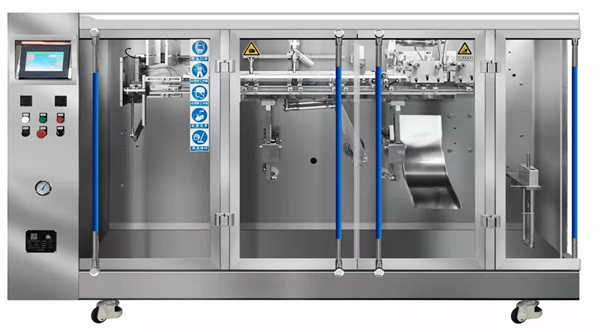

Shanghai FuBo FBG-180/210 Linear type premade pouch filling sealing machine adopt European technicals, composed of Famous elelcteic parts, pneumetic parts, Full of machine are made of ss304 material follow international food grade.

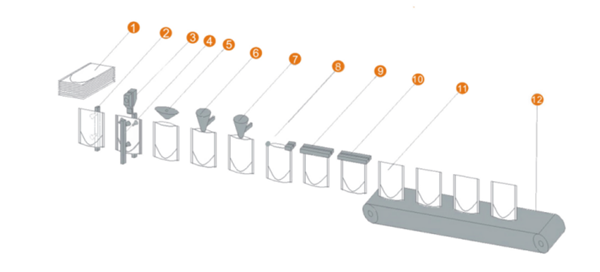

Work stations of pouch filling machine:
1.Premade Pouch Stack 2.Flip-Out Pouch-Picking Unit 3.Zipper Opening 4.Pouch Opening 5.Air Flushing 6.First Filling 7.Second Filling 8.Pouch Stretching 9.Top Seal I 10.Top Seal II 11.Finished Product 12.Outlet
General functions of machine:
1. Bag giving system 2. PLC control system 3. Bag opening device 4. Filling system 5. Cleaning system 6.Transfer system 7. Hot sealing control system 8. Output system
Type of pouches --- doypack, stand up pouch, premade pouch, 3 and 4 sides sealed sachet, spouted bags, shaped pouch etc. most of lamilated pouches are valid
Type of products --- detergent, honey, shampoo, juice, food sauce, tomatoes paste, fruits pulps, spices sauce, water, oil, chemicals, medicine drinking etc.
Type型号
FBG-180
FBG-210
FBG-240
FBG-330
Packing range袋型尺寸范围
60X80mm &
180X310mm
90X110mm &
210X310mm
100X120mm &
240X320mm
140X180mm &
320X410mm
Max volume包装容量范围
1200mL
1600mL
2000mL
4000mL
Speed包装速度
30-60ppm
30-60ppm
30-60ppm
5-15ppm
Power功率
1.8kw
2.8kw
3.4kw
2.5kw
Dimension设备尺寸
1900mm(L)
970mm(W)
1390mm(H)
2700mm(L)
970mm(W)
1400mm(H)
3100mm(L)
1010mm(W)
1400mm(H)
1800mm(L)
1020mm(W)
1300mm(H)
Weight重量
700kg
900kg
1800kg
700kg
FU-BO is your right choice
