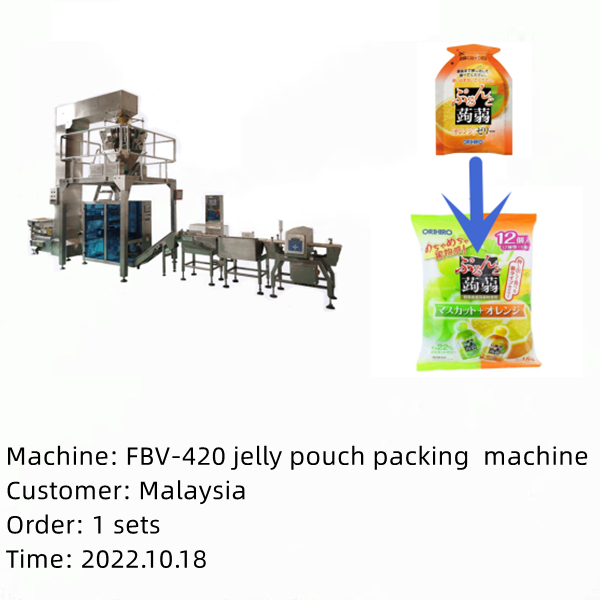

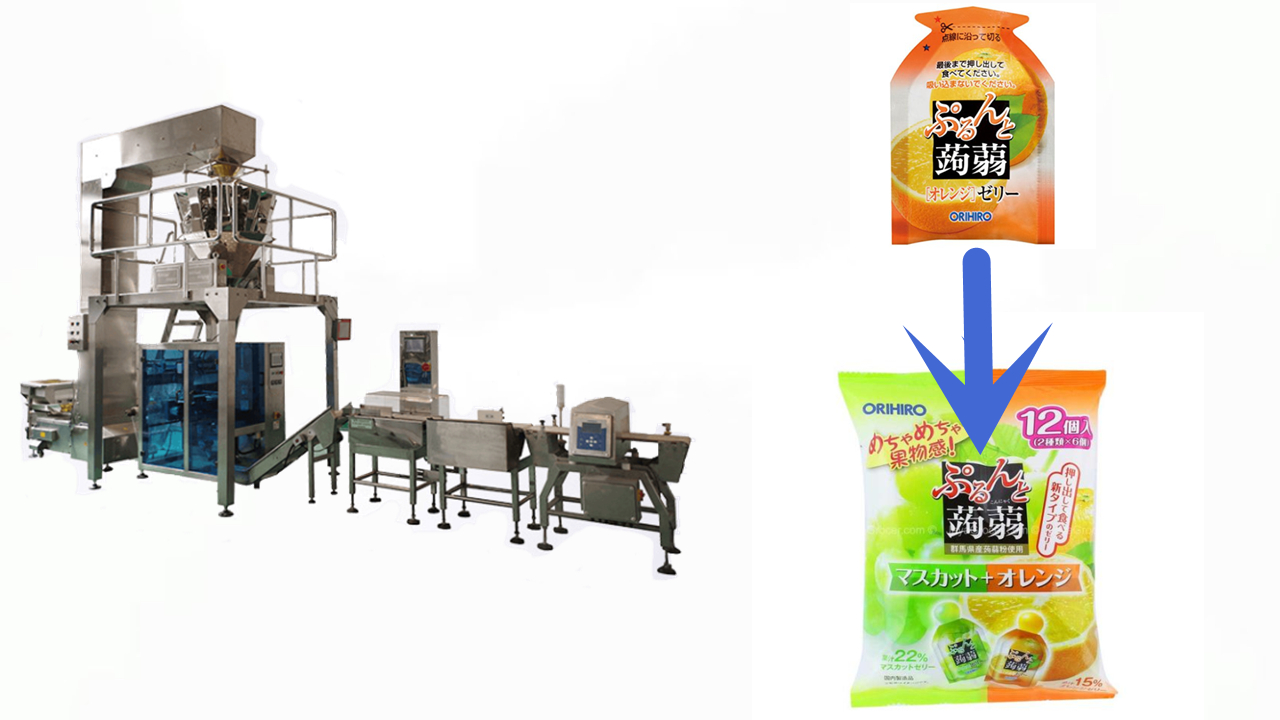

Multi-head jelly pouch packing machine

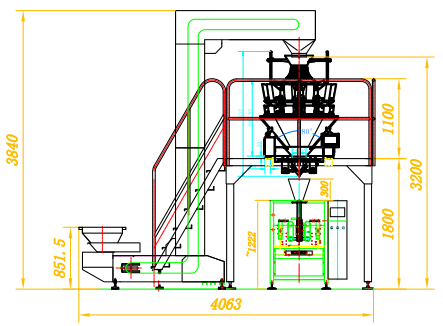

1、Z type elevator (for granular products)
2、Multi-head
3、Date printer
4、Vertical sealing
5、Horizontal sealing and cutting
6、Finished product output
7、Finished product conveyor
Instruction of machine:
FBV-420 VFFS granular packing machine including main packing machine, z type elevator, multi-head, film deliver, date printer, sealing and cutting device, finished product conveyor, machine are controlled PLC system.
keyword: pouch packing machine, sachet packed into pouch machine, packing sachets machine, small sachets bagging machine, vertical jelly packing machine, jelly sachets pouch machine, form fill seal pouch machine.
This machine is widely used in granular products, such as jelly, biscuits, peanuts, pistachios, potato chips, oatmeal cereals, dried fruit, chocolate, popcorn, coffee beans, jujube, puffy food, candy, cashew nuts, etc.
|
SPECIFICATIONS |
||||
|
Model. No
|
FBV-420 |
FBV-520 |
FBV-620 |
FBV-820 |
|
Bag Size
|
（L）60-230mm* （W）60-200mm |
（L）100-300mm* （W）80-250mm |
（L）100-380mm* （W）100-300mm |
（L） 50-380mm* （W）110-400mm |
|
Bag Speed
|
15-60bags/min |
15-60bags/min |
15-60bags/min |
10-30bags/min |
|
film width
|
140-420mm |
180-520mm |
220-620mm |
340-800mm |
|
Air Consumption
|
0.6Mps 0.36m3/min |
0.6Mps 0.36m3/min |
0.6Mps 0.4m3/min |
0.6Mps 0.7m3/min |
|
Powder Supply
|
2.2kw， 220V 50/60HZ |
3kw 220V 50/60HZ |
4kw 220V 50/60HZ |
4.5kw 220V 50/60HZ |
|
Packed Dimension
|
(L)1430*(W)970* (H)1600mm |
(L)1550*(W)1160* (H)1480mm |
(L)1600*(W)1260*(H)1680mm |
(L)1600*(W)1500* (H)2050mm |
