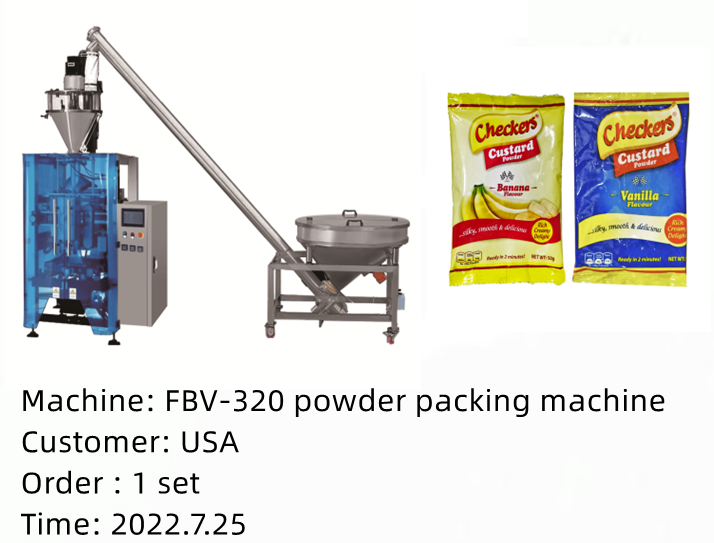

FBV-320 Powder packing machine are customized for packing food, medicine, chemicles products etc.
1.Low cost high gain, high speed and efficiency.
2.The whole system is linkage control, automatic feeding, stop working without materials.
3.The contact parts with food is made of 316# high quality stainless steel, it will never get rust.
4. minimize the loss with complete automatic warn protection function;
5. the way of bag making: the machine can make pillow-type bag and standing bag according to customer's requirements.
FBV 320, 420, 520, 620, 720, 820 VFFS form fill seal machine suit for powder products such as: milk powder, protein powder, grains powder, tea powder, chemicals powder, bio powder, medicine powder etc.
Sample of packages:
1.Pillow pouch 2. gusset pouch 3. stand up pouch 4. pouch with punched hole 5. multi linking pouches
|
SPECIFICATIONS机械参数 |
||||
|
Model. No 型号 |
FBV-420 |
FBV-520 |
FBV-620 |
FBV-820 |
|
Bag Size 制袋尺寸 |
（L）60-230mm* （W）60-200mm |
（L）100-300mm* （W）80-250mm |
（L）100-380mm* （W）100-300mm |
（L） 50-380mm* （W）110-400mm |
|
Bag Speed 包装速度 |
15-60bags/min |
15-60bags/min |
15-60bags/min |
10-30bags/min |
|
film width 膜宽 |
140-420mm |
180-520mm |
220-620mm |
340-800mm |
|
Air Consumption 消耗空气量 |
0.6Mps 0.36m3/min |
0.6Mps 0.36m3/min |
0.6Mps 0.4m3/min |
0.6Mps 0.7m3/min |
|
Powder Supply 机械功率 |
2.2kw， 220V 50/60HZ |
3kw 220V 50/60HZ |
4kw 220V 50/60HZ |
4.5kw 220V 50/60HZ |
|
Packed Dimension 主机尺寸 |
(L)1430*(W)970* (H)1600mm |
(L)1550*(W)1160* (H)1480mm |
(L)1600*(W)1260*(H)1680mm |
(L)1600*(W)1500* (H)2050mm |
FU-BO is your right choice
