FBV-300 shaped sachet form fill seal machine

  • Last update:2022-06-12
  • Page View:11645

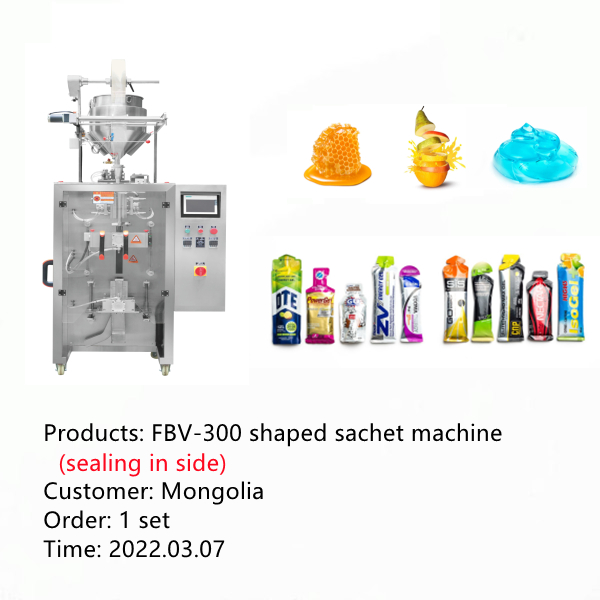

shaped sachet packing machine

FBV-300 VFFS stick sachet form fill seal machine are widely used for packing stick sachets, shaped sachets, machine can be customized for packing powder, liauid, paste, solid products by changing dosing parts,

Constructions of machine:

1. dosing parts  ( powder by auger, liquid by pistion filler, solid products by scales)

2. main packing machine ( form fill seal)

3. date printer

1. liquid/paste packing machine for packing products as below:

honey, shampoo, gel, ketchup, sauce, paste, energy gel, glue, juice, water, mouth washing, jelly, oil, cream, shower gel etc.

shaped sachet packing machine -- products

2. FBV-300 sachet packing machine for packing sachets as below:

stick bag, shaped sachets, pilllow bag, 3 and 4 sides sealing pouch irregular shape bags etc.

sample bags

TYPE OF MACHINE 机械型号

FBV-300Y VFFS PACKING MACHINE

PACKING SPEED/MINUTE 包装速度/每分

25-50 bags/minute

PACKING DIMENSION 包装尺寸

Width/宽 : 20mm - 150mm

Length/长 : 30 mm - 180 mm

Note: usually filling volume 10- 100 mls

DIAMETER OF PACKGE ROLL 卷膜直径

Max 450 mm

POWER 电源

110v/220v/380v customized  (定制)

WEIGHT 机械重量

300 kgs/set

SIZE OF MACHINE 机械尺寸

1000*750*2300mm
