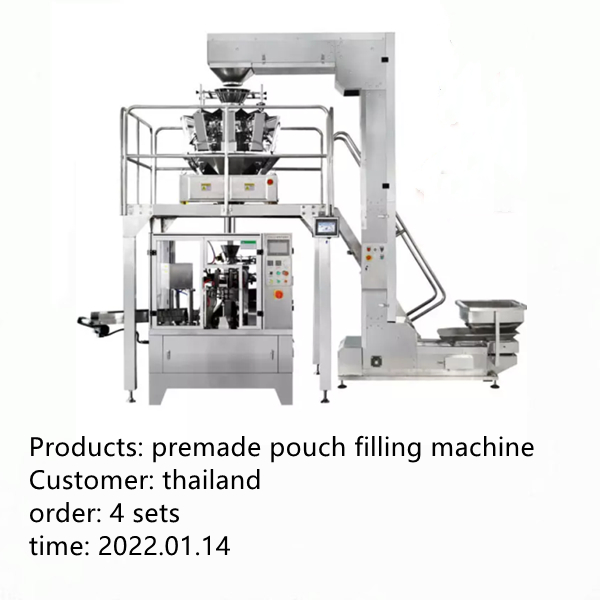

FBG premade pouch filling machine are widely used for packing sclid products by equipping with multi heads weighing sclaes, such as: snacks, candy, gummy, graines, nuts etc.
This packing line is composited by
Computer combination weigher
Material conveyor
Working platform
Vibration system
Exhaust or inflatable structure
Pressure feeding system
Equipment for bag feeding flatly
Metal detector
Weight sorting scales
Product conveyor
Processing tray
functions of machine:
No pouch or open error, on filling.
No pouch or no filling, no sealing.
No coding ribbon, Emergency stop and alarm.
The safety door open, alarm(option)
The air pressure not enough, alarm.
The sealing temperature anomaly, alarm
Materials:
Most of grains and solids, such as microwave popcorn, candy, nuts, raisins, peanuts, melon seeds, potato chips, chocolate, biscuits, Wolfberry, Vegetable Salad, Seeds, Rock sugar, Pet food, Peanut, Jujube, Frozen food, Dry fruit, Cornmeal, Cookie, Chinese herbal medicine, Chinese wolfberry, Red dates, and other solid material.
Pouches:
doypack, doy pack, Stand up pouch, stand up pouch with hole, Doypack pouch, Gusset stand up pouch with zipper, 4-side sealing pouch, Zipper pouch, premade pouches etc.
Model |
FBG-200-S |
FBG-230-S |
FBG-300-S |
Pouch Type |
all kinds of premade bags or pouches, Flat bag, 3-side sealing bag, 4-side sealing bag, zipper bag, standup bag etc… |
||
Pouch Material |
Laminated film, PP, PE, Foil, Paper etc… |
||
Pouch size |
W:80-210mm |
W:80-230mm |
W:150-300mm |
Packing weight |
5-1500g |
||
Packing Speed |
20-60 Bags/Min (depends on the packing material and filling weight) |
||
Packing Accuracy |
≤±1% |
||
Power |
3.5KW-4.5KW, AC380V,50Hz |
||
Air Consumption |
0.3m3/min |
||
Overall Dimensions (L*W*H)(mm) |
Min. 4200*2000×3700 Max. 4650*2350×3750 |
