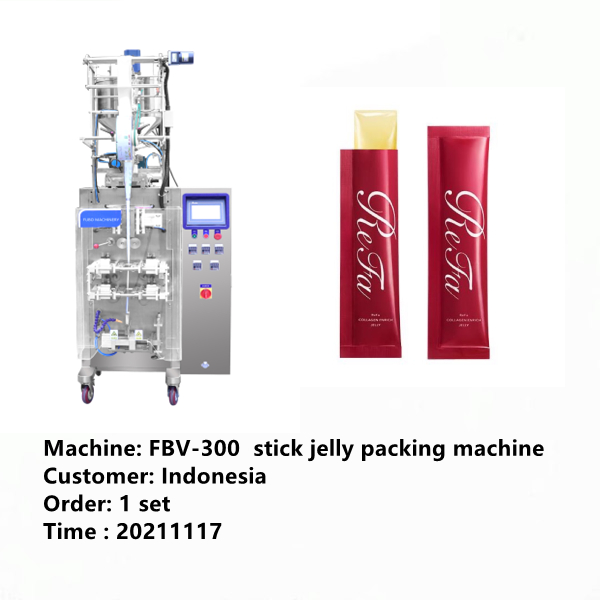

FBV-300 stick jelly sachet form fill seal machine

  • Last update:2022-03-28
  • Page View:6160

stick jelly sachet packing machine

1.Machine material is S.S 304 and all out equipments have received the CE attestation.
2.Inverter and power switch are all imported with advanced technology.
3.Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.
4. Optional coding equipment and with 1 to 3 lines for batch number and expiration date.
5. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
6. Equipped with screw rod device enables volume of packing changing anytime, loss reducing and improve productivity.
7. Bag-making, filling, sealing, cutting, counting, thermal pressing of batch number can be achieved automatically and straightly.
8. Bag-making equipment can be changed according to specific requirement of customers and products.

jelly packing machine jelly packing machine

FBV-300  VFFS packing machine is suit for packing liquid, sauce, paste products . such as: jelly, ketchup, gel, jams, shampoo, honey, cream etc.

Optional function: UV sterilizing, Mixing, Heating, date printing, design of sachet etc.

Type:

FBV-300

FBV-300D

Sachet range(need customized)

Length: 45-180mm

width30-140mm

Length: 45-180mm

width30-140mm

Max diameter of roll film

≤φ450mm

≤φ450mm

Max width of film

220mm

220mm

Thickness of film

5-10 micron

5-10 micron

Speed:

4  sachet/minute

80  sachet/minute

power

3.5 Kw

6 Kw

Voltage:

220V/50Hz

220V/50Hz

Outside dimension

length1350mm*width1150mm*height2137mm

length1350mm*width1450mm*height2137mm

Weight of machine

350 kgs

600 kgs
