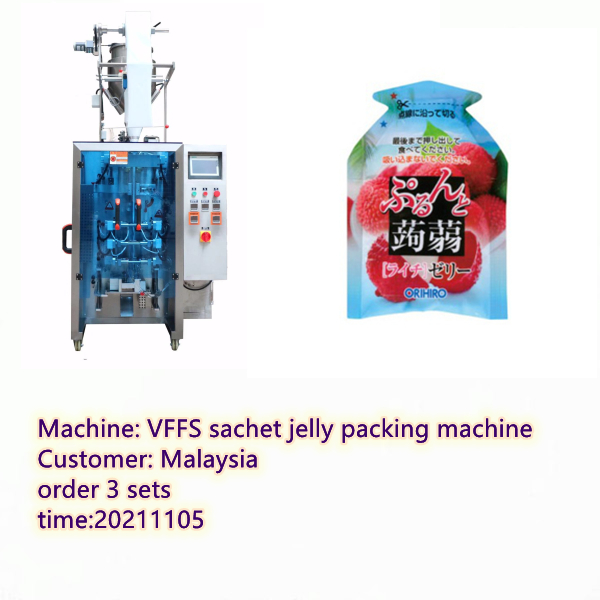

FBV-300Y jelly sachet form fill seal machine

  • Last update:2022-03-28
  • Page View:100914

vffs liquid packing machine

Main Performance
This machine is automatically completed the process of measuring, bag making, filling, sealing, counting, photoelectric sensor, cutting etc. And the part of punching and cutting mould adopts high precision structure, you can customize all kinds of special shaped, carton finished product with novel appearance.

Product Features
1.Weight measuring, bag making, filling, sealing, cutting and bags counting can be done automatically
2.Computer PLC control and automatic alarming function.
3.English and Chinese human-machine operation interface, it is easy to operate, high degree of automation.
4.High sensitivity photoelectric eye color tracing, more accuracy.
5.Famous brand components, ensure the quality and durability of the machine.

"It is suitable for packing all kinds of liquid and jelly, such as juice, jelly, jelly bean and so on.

vffs liquid packing machine

Packing Effect
The machine can provide back-seal packing, 3-side seal packing and 4-side seal packing effects.
It can be upgraded to add the bag with hanging holes and easy tear effect according to the needs
vffs liquid packing machine

Type:

FBV-300Y

FBV-300YD

Sachet range(need customized)

Length: 45-180mm

width30-140mm

Length: 45-180mm

width30-140mm

Max diameter of roll film

≤φ450mm

≤φ450mm

Max width of film

220mm

220mm

Thickness of film

5-10 micron

5-10 micron

Speed:

40 sachet/minute

80  sachet/minute

power

3.5 Kw

6 Kw

Voltage:

220V/50Hz

220V/50Hz

Outside dimension

length1350mm*width1150mm*height2137mm

length1350mm*width1450mm*height2137mm

Weight of machine

350 kgs

600 kgs
