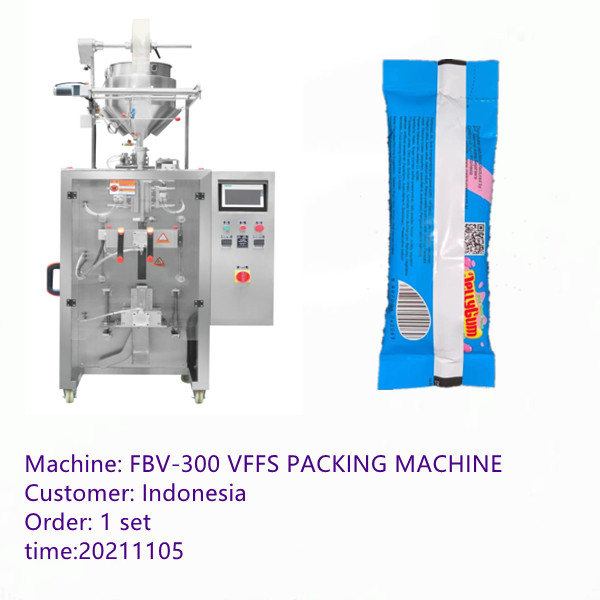

FBV-300 VFFS Automatic packaging bag forming, product counting, filling, sealing, cutting, easy tear line, etc.
Product design:
Product design: OEM can design the shape and size of the bag according to customer requirements.
Features:
1、Stainless steel surrounds the part where contact to the material. The machine is accordant with the European CE standard.
2、The computer controller is the first patented product in China, an advanced frequency converter, and supports multi-language
control.
3、Unique embedded sealing, enhanced heat sealing organization, intelligent temperature controller with heatbalance to suitable
for various of packaging material, good performance,clear sealing texture,firm sealing .
4、pump measurement adjusting device can adjust packaging capacity during running the machine, reduce the lost of material and improve productivity.
5、Bag system with stepping motor subdivision technology, high precision, and the error is less than 0.5mm.
machine applicable to the packaging of liquid in the pharmaceutical, food, chemical and other industries. Such as: sauce, soup. edible oil, liquid medicine, cream,seasoning sauce, honey, shampoo and shower gel, etc.
Model |
FBV-300 irregular shape sachet packing machine |
Measuring |
Liquid Pump Measuring ( customized) |
Filling Range |
Customized, usually from 1 to 50mls or more |
Film Width |
Max.220mm |
Bag Length |
30-180mm |
Bag Width |
15-100mm |
Bag Type |
Back sealing bag |
Roll Diameter |
Max.300mm |
Packing Material |
OPP/CPP,OPP/PE,PET/PE,other laminated film |
Packing Speed |
30-80 bags/min |
Machine Weight |
300KG |
Powder |
220V,50HZ,1.2KVA |
