FBSP-4 Spouted pouch filling capping machine for liquid products

  • Last update:2021-10-09
  • Page View:16714

doypack filling capping machine

doypack filling capping machine

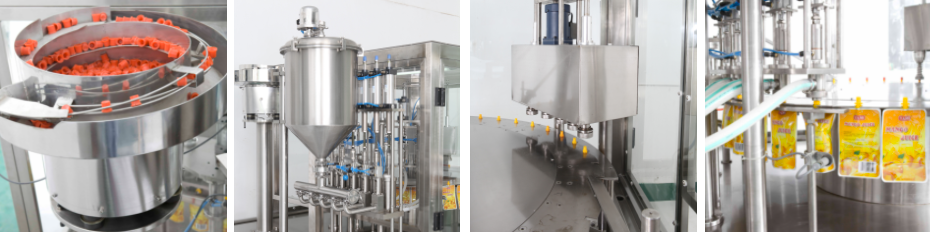

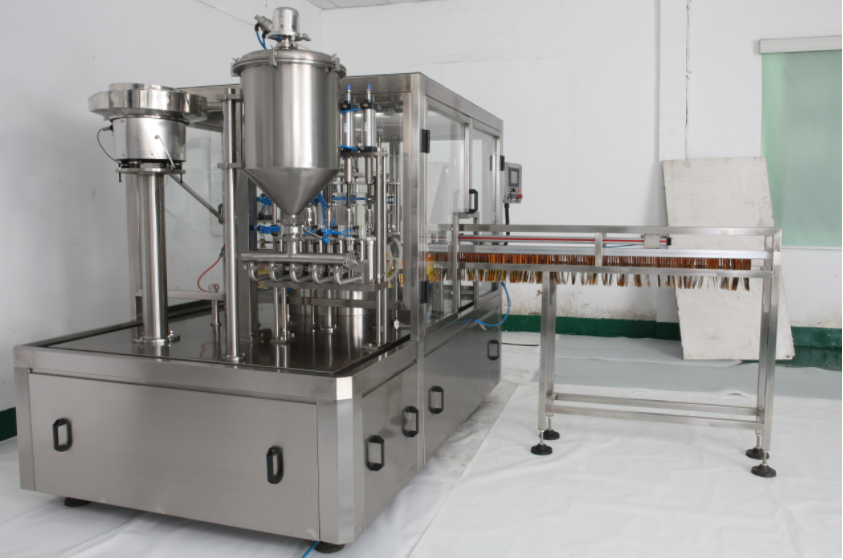

Spout pouch filling and capping machine is specially applied to fill all kinds of liquid, such as fruit juice, milk, detergent, beverage, etc.

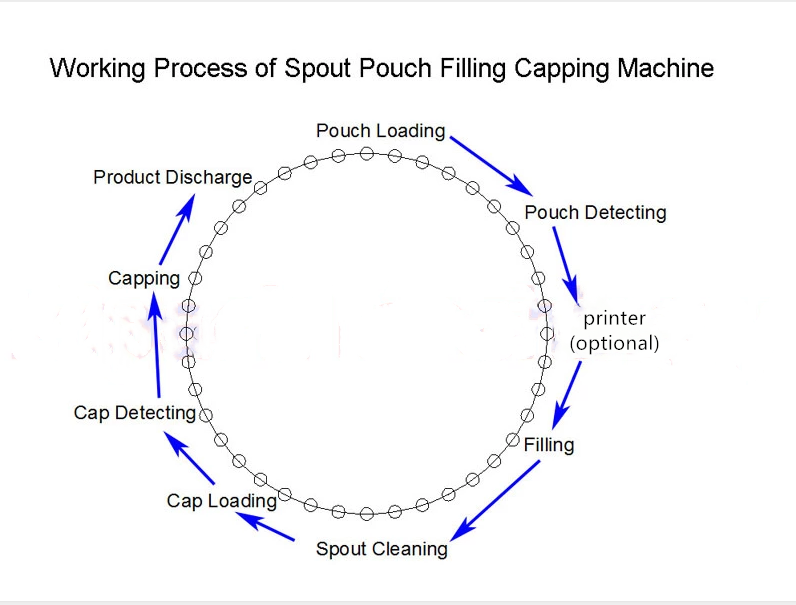

Spout pouch filling and capping machine works automatically: pouches feeding---positioned filling---cleaning ---caps loading---caps screwing---end-products discharging .
Dust-proof covering to ensure hygiene. According to clients’ requirements, we also can add or cancel some functions. With reasonable design, advanced function

doypack filling capping machine

doypack filling capping machine


It's suitable for all kinds of liquid and thick-liquid (sauce), such as fruit juice, seasoning sauce, tomato sauce, peanut butter, jam, chili sauce, hand sanitizer, liquid detergent and so on

doypack filling capping machine

Model

FB-4A

FB-6A

Filling Nozzle

4 pieces

6 pieces

Packing Speed

2000 to 4000bags/Hour

3000 to 6000bags/Hour

Volume

1 to 2500ml （customized)

1 to 2500ml （customized)

Power

1.6 kw

2.1 kw

Voltage

380V/50HZ (three phases)

380V/50HZ (three phases)

Air Pressure

0.5-0.7Mpa

0.5-0.7Mpa

Air Consumption

0.7m3/min

0.8m3/min

Dimension

Main Machine: (L)1800*(W)1230*(H)1900mm

Send bag holder: (L)2200*(W)400*(H)1600mm

Wooden Box

(L)2200*(W)2000*(H)2200mm

Weight

1600kg

doypack filling capping machine
