FBV-300 fruits jelly sachet form fill sealing machine

  • Last update:2021-10-09
  • Page View:12814

konjac jelly packing machine

Functions:Automatic quantitative filling,bag-making,sealing,cutting,counting,code-printing.

Packing material:polyester/polyethylene, nylon-compound membrane, strengthen-compound membrance, BOPP and so on.
Automatic konjac juice jelly packing machine
Project applications: 1. Energy drink bag;2. Konjac jelly bag;  3. Enzyme drink bag;

 1.  MITSUBISHI PLC controller, strong keypart of machine.
 2.  Taiwan Brand Weinview Touch screen for parameter, English & Chinese Language;
 3.  Stainless steel 304 contact part & machine out shell;
 4.  Juice filler could be customized according to product status;
 5.  4units temperature PIDs, simple to set temp according to paper thickness;
 6.  Sealing mould & forming mould would be customized according to paper width;
 7.  Heavy duty machine body, beauty appearance.

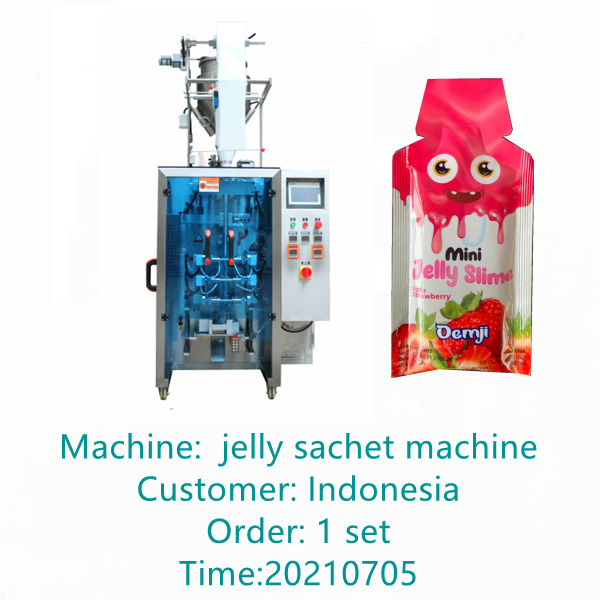

FBV-300Y Konjak jelly sachet form fill seal  machine is  specially for konjac jelly, fruits jelly, flavored jelly

konjac jelly packing machine

               Type:

FBV-300D

Sachet range(need customized)

Length: 45-180mm  width30-140mm

Max diameter of roll film

≤φ450mm

Max width of film

220mm

Thickness of film

5-10 micron

Speed:

80  sachet/minute

power

3.5 Kw

Voltage:

220V/50Hz

Outside dimension

length1350mm*width1450mm*height2137mm

Weight of machine

350 kgs
