premade ziplock doypack filling sealing machine for packing gummy candy

Last update:2021-10-09
Page View:965

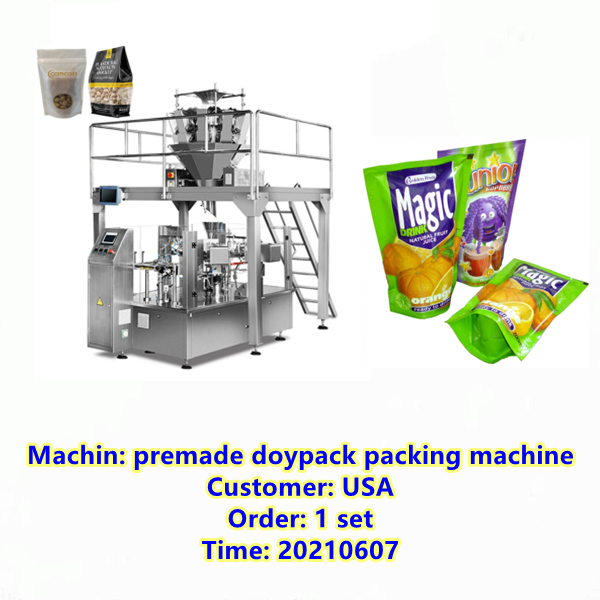

premade ziploack pouch filling sealing machine

FBG TYPE Premade pouch machines are great for companies that package a variety of products in short and long runs. The equipment is simple to operate and offers the ability to use packaging that is more customized than a VFFS machine.

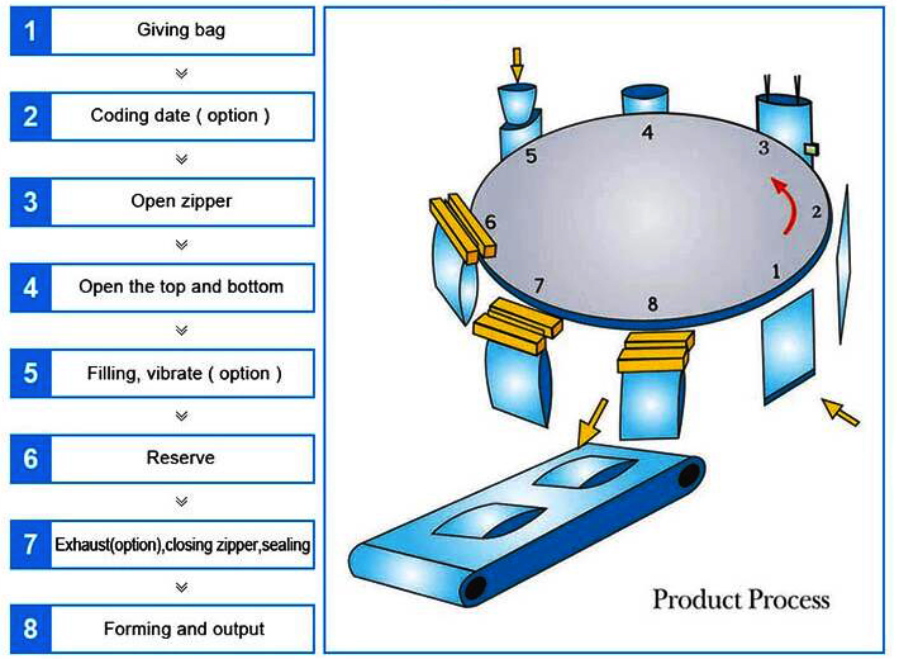

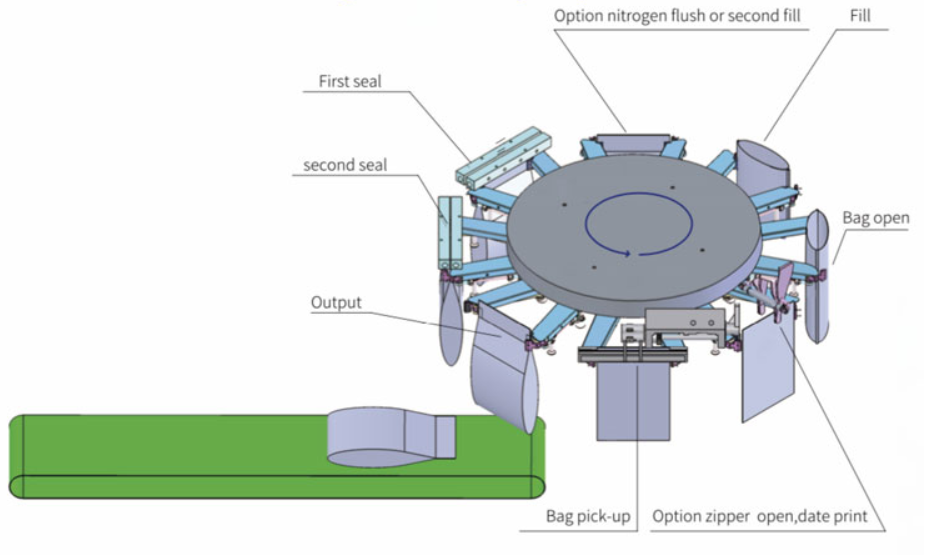

The first turntable (eight stations):

①. The first station: give the bag; put the prefabricated bag on the bag bin, the bag can move up and down, when the bag falls, use the suction cup to take the bag, when it rises, use the two suction cups of the robotic arm to turn the bag Workbench manipulator claw.

②, The second station: open the zipper

③. The third station: open the bag; use two suction cups on the upper and lower parts of the bag to open the bag.

④. The fourth station: unloading

⑤, The fifth station: poke the material

⑥ The sixthstation: the material is stationary

⑦. The seventh station: double-sided constant temperature sealing 1 (straight pattern)

⑧, The eighth station: double-sided constant temperature sealing 2 (net pattern)

Various bag types are available: 3 side bag ,4 side bag ,Stand up pouch ,Stand up pouch with hole,Spout pouch ,Gusset pouch ,Shaped bag ,Stand up pouch with zipper ,block bottom bags,zip-lock recloseable bagsetc.

Various of products :

Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc.

Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer,etc.

Others products can be customized

Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc. Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc.

Liquid/paste type: detergent,e, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste,etc.

Type型号	FBG-180	FBG-210	FBG-240	FBG-330
Packing range袋型尺寸范围	60X80mm & 180X310mm	90X110mm & 210X310mm	100X120mm & 240X320mm	140X180mm & 320X410mm
Max volume包装容量范围	1200mL	1600mL	2000mL	4000mL
Speed包装速度	30-60ppm	30-60ppm	30-60ppm	5-15ppm
Power功率	1.8kw	2.8kw	3.4kw	2.5kw
Dimension设备尺寸	1900mm(L) 970mm(W) 1390mm(H)	2700mm(L) 970mm(W) 1400mm(H)	3100mm(L) 1010mm(W) 1400mm(H)	1800mm(L) 1020mm(W) 1300mm(H)
Weight重量	700kg	900kg	1800kg	700kg
