FBV-620 VFFS 1-5 kgs gummy bear pouch packing machine

Last update:2021-10-09
Page View:4063

vffs packing machine gummy candy

Main Performance And Structure Features:

1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time;

2. Intelligent: Packing speed and bag length can be set through the screen without part changes;

3. Profession: Independent temperature controller with heat balance enables different packing materials;

4. Characteristic: Automatic stop function, with safe operation and saving the film;

5. Convenient: Low loss, labor saving, easy for operation and maintenance.

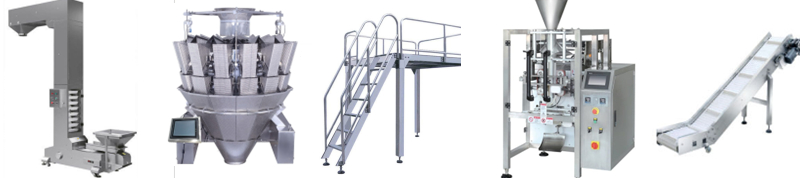

1. VFFS packing machine

2. Platform

3. Automatic combination weigher

4. Z type conveyor combined with vibration feeder

5. Take away conveyor

6. Collection table

The granule packing machine is suitable for all kinds of grain material, sheet material, strip material and abnormity material which such as candy, melon seeds, chips, peanut, nutlet, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, filbert, corn, Potato Crisps, pet foodstuff, dilatant foodstuff, hardware and plastic can be weighed by the ration.

vffs packing machine gummy candy

Modal	FBV-320	FBV - 420	FBV-520	FBV-720
Measuring range	150-800ml	150-1500ml	150-2000ml	150-4000ml
Packaging speed	5-70bags/min	5-60bags/min	10-60bags/min	10-60bags/min
Bag width	50-150mm	60-200ml	80-250mm	100-350mm
Bag length	80-240mm	80-300mm	80-350mm	100-450mm
Film roll width	Max.320mm	Max.420mm	Max.520mm	Max.720mm
Film thickness	0.03-0.09mm
Film material	OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film
Machine size(LxWxH)	*11859351245mm*	*121710151343mm*	*148810801490mm*	*171612601820mm*
Machine weight	350kg	450kg	550kg	700kg
