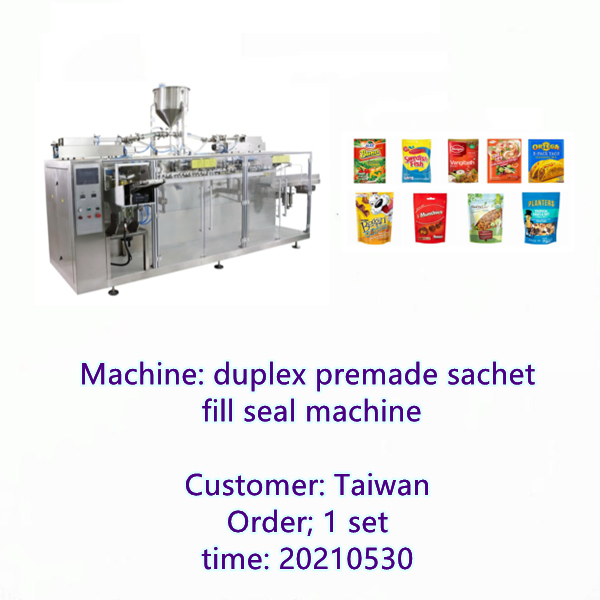

FBG-210D DUPLEX PREMADE SACHET FILLING MACHINE

  • Last update:2021-10-09
  • Page View:1391

1) This Premade Doypack Stand Up Pouch Liquid Filling Packing Machine Automatic Doypack Filling Sealing Machine is a horizontal linear premade pouch pick fill seal machine.
2) It is an economical duplex pouch filling machine at high packing speed of max. 80 bags per minute.
3) It completes two pouches picking up, opening, date printing, liquid filling and sealing fully automatically.
4) It is composed of a duplex premade bag packing machine, two liquid material hoppers and dosing filling pumps.

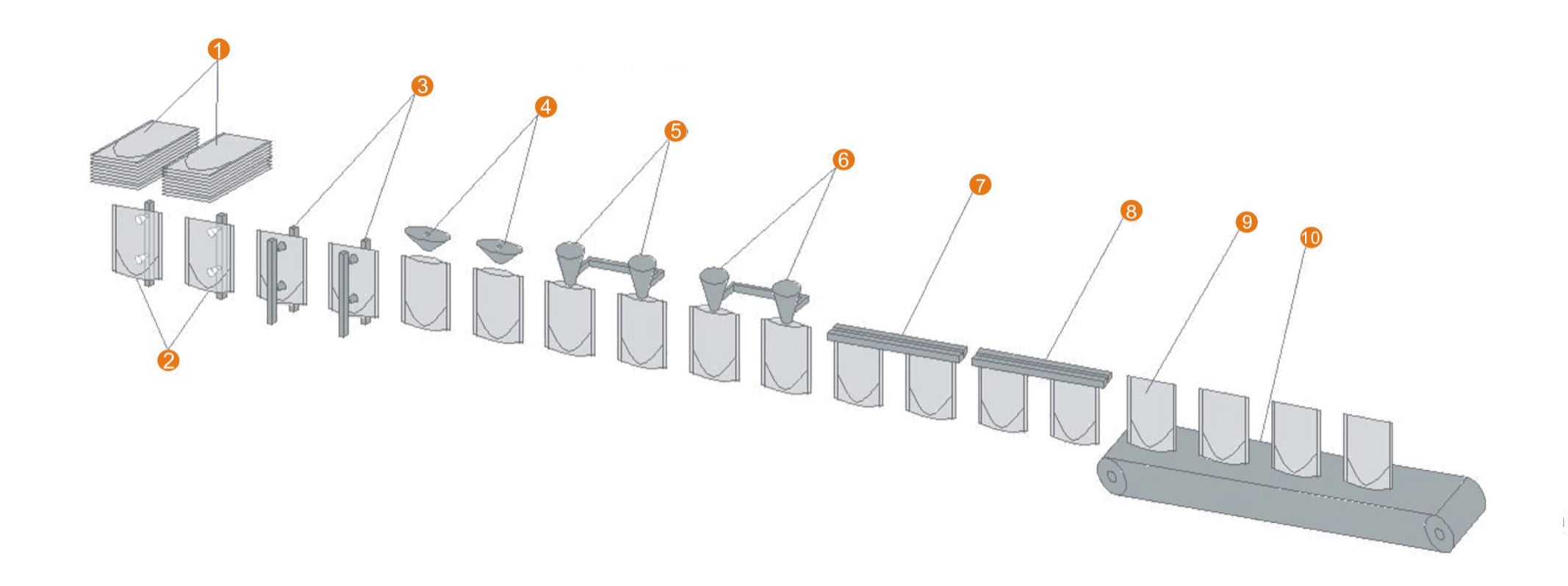

Working Process

1.Two pouches picking up
2. Two pouches receiving
3. Two pouches opening
4. Two pouches filling product
5. Two pouches tidying up
6. Two pouches sealing

Optional:
1. Date/batch no printing

Foods: oil, fruit juice, soft drinks, milk, yogurt, ink, salad, mayonnaise, tomato paste, tomato ketchup, edible oil, soy sauce,
duck sauce, anchovy essence, cocktail sauce, salsa, barbecue sauce, ranch dressing, hot sauce, cheese sauce, pasta sauce, spaghetti sauce, chilli sauce, etc
Others: car wash detergent, liquid laundry detergent, liquid soap, etc



Type型号

FBG-180

FBG-210

FBG-240

FBG-330

Packing range袋型尺寸范围

60X80mm &

180X310mm

90X110mm &

210X310mm

100X120mm &

240X320mm

140X180mm &

320X410mm

Max volume包装容量范围

1200mL

1600mL

2000mL

4000mL

Speed包装速度

30-60ppm

30-60ppm

30-60ppm

5-15ppm

Power功率

1.8kw

2.8kw

3.4kw

2.5kw

Dimension设备尺寸

1900mm(L)

970mm(W)

1390mm(H)

2700mm(L)

970mm(W)

1400mm(H)

3100mm(L)

1010mm(W)

1400mm(H)

1800mm(L)

1020mm(W)

1300mm(H)

Weight重量

700kg

900kg

1800kg

700kg
