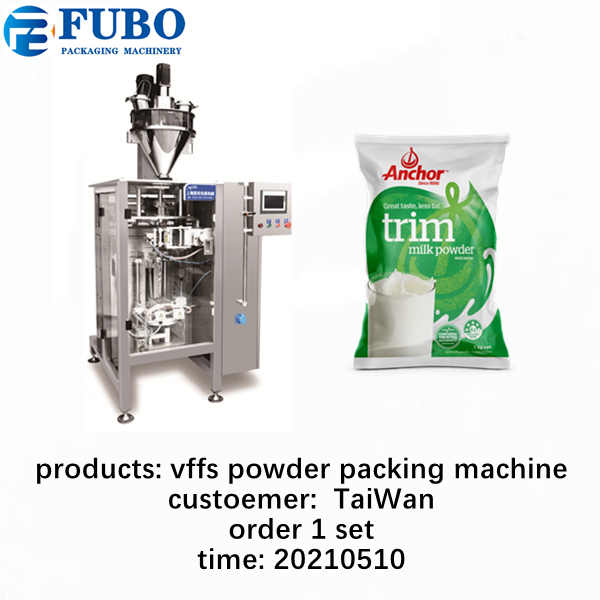

FBV-320 VFFS Powder pouch packing machine

  • Last update:2021-10-09
  • Page View:902

packing machine is suitable for ultra-fine powdery materials. Such as: milk powder, coffee powder, seasoning powder, milk tea powder, protein powder, bean powder etc. According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.

Machine details:
Automatic Vffs powder packing machine spice seasoning powder packaging machine
flour grain coffee milk juice sugar powder filling and packing machine
washing powder chemical powder filling machine and packaging machine
1. This machine can finish : forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;
2. Photoelectric and tracing system or computer system can be provided without your specific requirements.
3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;
4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.

Applicable packing film:
Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.

packing machine is suitable for ultra-fine powdery materials. Such as: milk powder, coffee powder, seasoning powder, milk tea powder, protein powder, bean powder etc. According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.

packing machine is suitable for ultra-fine powdery materials. Such as: milk powder, coffee powder, seasoning powder, milk tea powder, protein powder, bean powder etc.
According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.
packing machine is suitable for ultra-fine powdery materials. Such as: milk powder, coffee powder, seasoning powder, milk tea powder, protein powder, bean powder etc. According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.

Modal

FBV-320

FBV - 420

FBV-520

FBV-720

Measuring range

150-800ml

150-1500ml

150-2000ml

150-4000ml

Packaging speed

5-70bags/min

5-60bags/min

10-60bags/min

10-60bags/min

Bag width

50-150mm

60-200ml

80-250mm

100-350mm

Bag length

80-240mm

80-300mm

80-350mm

100-450mm

Film roll width

Max.320mm

Max.420mm

Max.520mm

Max.720mm

Film thickness

0.03-0.09mm

Film material

OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film

Machine size(LxWxH)

1185*935*1245mm

1217*1015*1343mm

1488*1080*1490mm

1716*1260*1820mm

Machine weight

350kg

450kg

550kg

700kg

vffs pouch packing machine.
