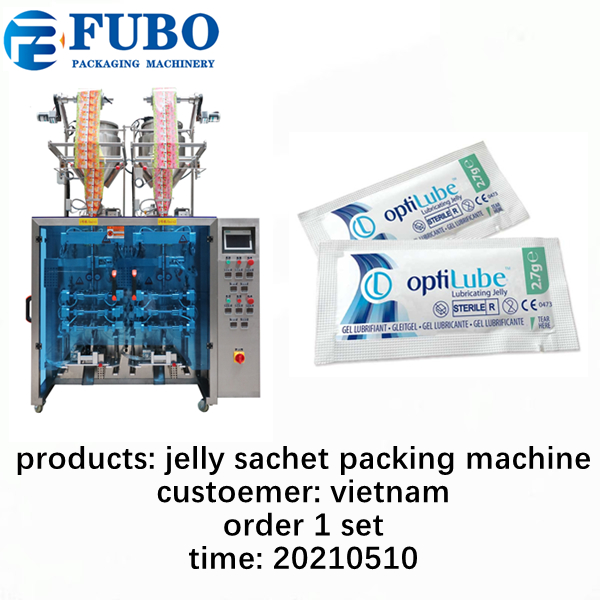

FBV-300D jelly sachet packing machine

  • Last update:2021-10-09
  • Page View:9113

sachet jelly packing machine

Machine details:
1. This machine can finish : forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;
2. Photoelectric and tracing system or computer system can be provided without your specific requirements.

3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;

4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.

Applicable packing film:
Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.

sachet jelly packing machine

FBV-300D double lanes sachet packing machine with piston fillers are suit for packing liquid , sacue, paste products etc., specific prouducts such as: jelly, ketchup, shampoo, gel, honey, chocolate paste etc.


shapes of sachets:

stick sachet, 3 & 4 sides sealing sachet, back sealing sachet, square shape sachet, linking-sachet etc.

sachet jelly packing machine

Model

FBV-300D

Measuring

Liquid Pump Measuring   ( customized)

Filling Range

Customized, usually from 1 to 50mls or more

Film Width

Max.220mm

Bag Length

30-180mm

Bag Width

15-100mm

Bag Type

Back sealing bag

Roll Diameter

Max.300mm

Packing Material

OPP/CPP,OPP/PE,PET/PE,other laminated film

Packing Speed

30-80 bags/min

Machine Weight

300KG

Powder

220V,50HZ,1.2KVA





sachet jelly packing machine
