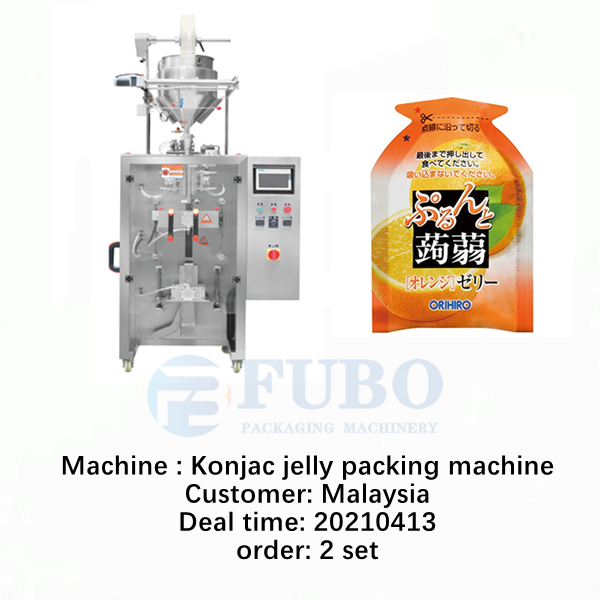

konjac jelly machine

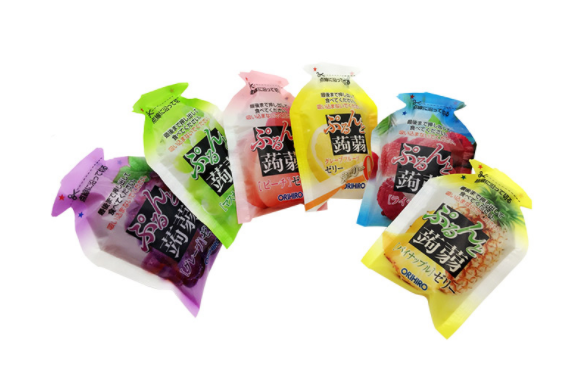

FBV-300Y VFFS packing machine speciall for konjac jelly sachet, fruits jelly, flavored jelly etc.

Packaging materials: generally, the Nylon/PE is better, also the other laminated film is also ok.

Basic characteristics packing machine:

PLC, self-diagnosis function,easy to operate.

According to film thickness(suport 50-100mic),set temperatue on the panel directly.

Adjust the stick length on contral system directly,high sensitive trace sensor.

Heating and mixing system ,heating temperatue upto 100℃,more suitable for viscous material.

Whole machine material is stainless steel 304,in line with international food and medicine industry.

Driving type

Electric+pheumatic,more beautiful sealing appearence.

Optional sealing and cutting type

straight line sealing, diamond sealing/mirco-diamond sealing, zigzag cutting, straight line cutting(flat cutting),

round corner cutting, etc,

Packaging Material

50-100 mic laminated film such as PE + paper +pet/ PE + PET/ AL Foil / PE + Nylon + PET / Filter paper ect.

konjac jelly machine

Type:	FBV-300Y	FBV-300YD
Sachet range(need customized)	Length: 45-180mm width：30-140mm	Length: 45-180mm width：30-140mm
Max diameter of roll film	≤φ450mm	≤φ450mm
Max width of film	220mm	220mm
Thickness of film	5-10 micron	5-10 micron
Speed:	4 sachet/minute	80 sachet/minute
power	3.5 Kw	6 Kw
Voltage:	220V/50Hz	220V/50Hz
Outside dimension	length1350mmwidth1150mmheight2137mm	length1350mmwidth1450mmheight2137mm
Weight of machine	350 kgs	600 kgs
