This machine is an automatic multi-functional tea bag packaging equipment with a new heat sealing type. The inner and outer bag forming is finished at the same time, avoid direct contact with the packing material and improve working efficiency. Inner bag is made of filter paper with thread and tag attached, and outer bag is made of composite paper. The biggest advantage is: tag attaching and outer bag making can adopt photoelectric positioning. Packing capacity, inner bag and outer bag size can be easily adjusted according to different requirements in order to achieve the best packaging results, improve product appearance and enhance the value of the product.
Machine features:
1. This machine can finish : forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;
2. Photoelectric and tracing system or computer system can be provided without your specific requirements.
3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;
4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.
Applicable packing film:
Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.
This machine is widely used to pack any loose,non-cohesive granule products of the food,
phaeceutical,and chemical industries,such as soup mix,coffee,instant drink mix,desiccant,
monosodium glutamate,sugar,salt,cereal etc.
|
TYPE OF MACHINE 机械型号
|

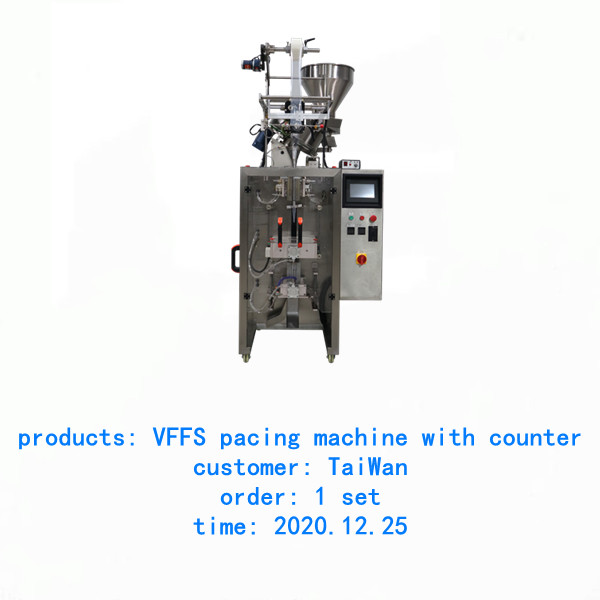

FBV-300S VFFS SERVO SYSTEM PACKING MACHINE
|
|
PACKING SPEED/MINUTE 包装速度/每分
|
25-50 bags/minute
|
|
PACKING DIMENSION 包装尺寸
|
Width/宽 ： 20mm - 150mm
Length/长 ： 30 mm - 180 mm
|
|
DIAMETER OF PACKGE ROLL 卷膜直径
|
Max 450 mm
|
|
POWER 电源
|
110v/220v/380v customized （定制）
|
|
WEIGHT 机械重量
|
300 kgs/set
|
|
SIZE OF MACHINE 机械尺寸
|
1000*750*2300mm
|
