Features:

u1. Reinforced stainless steel frame; comprehensive waterproof design.

u2.  Using German HBM high-precision sensor; based on the most advanced high-speed digital signal processing technology, to achieve high-speed, stable detection.

u3.  Dynamic weight automatic compensation technology; zero point automatic analysis and tracking technology.

u4. 50 groups of product presets; easy product editing and storage.

u5. Quick product switching and automatic adjustment of the corresponding product sorting speed.

u6.  Convenient USB detection data copy storage function (optional).

u7. Color LED touch operating system, multi-language operation interface, easy to operate.

u8. Optional scanning system and automatic printer.

principle:

Products conveyed from the upstream conveyor belt enter the metering conveyor belt at regular intervals through the introduction conveyor belt.

When the product passes the photoelectric sensor at the front of the weighing conveyor, the weight detector starts to measure the product.

When the product passes through the measuring conveyor belt, the weight sensor completes the measuring operation of the product and displays the measuring data to the operation section.

The microcomputer compares the displayed measurement data with the preset reference value, upper limit value, and lower limit value, and distinguishes between genuine products, overweight products, and light-defective products. The job information can be output to the statistical printer.

1. Used for weight detection, upper and lower limit judgment or weight classification selection on various automated assembly lines and logistics transportation systems;

2. It is widely used in online weight testing in pharmaceutical, food, toy, hardware, daily chemical and other industries;

3. It can directly replace manual weighing to improve production efficiency and consistency and reliability of weighing.

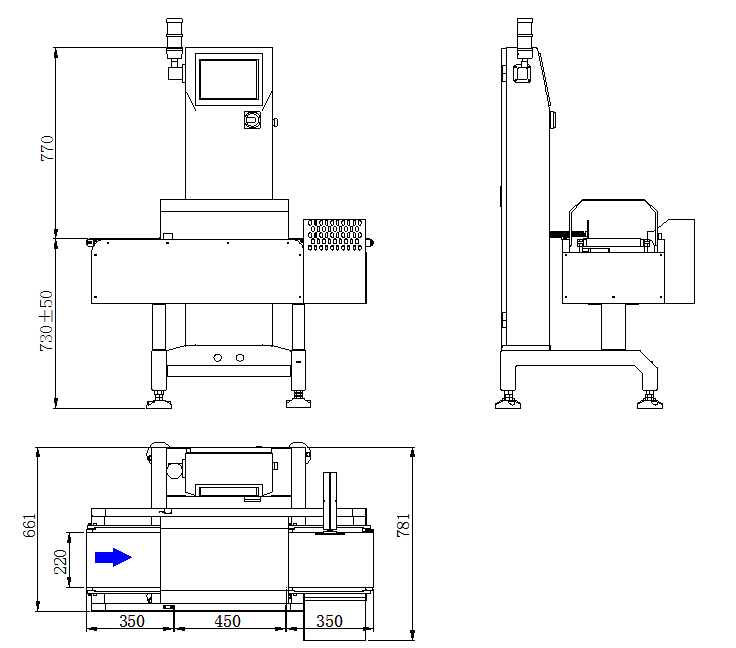

Layout of CW-220 & 300

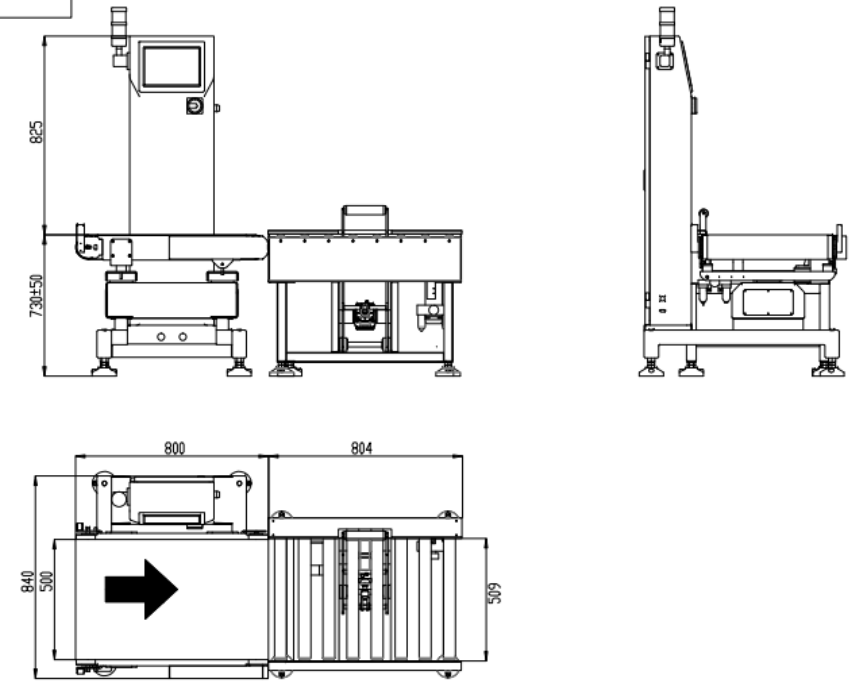

Layout of CW-500
