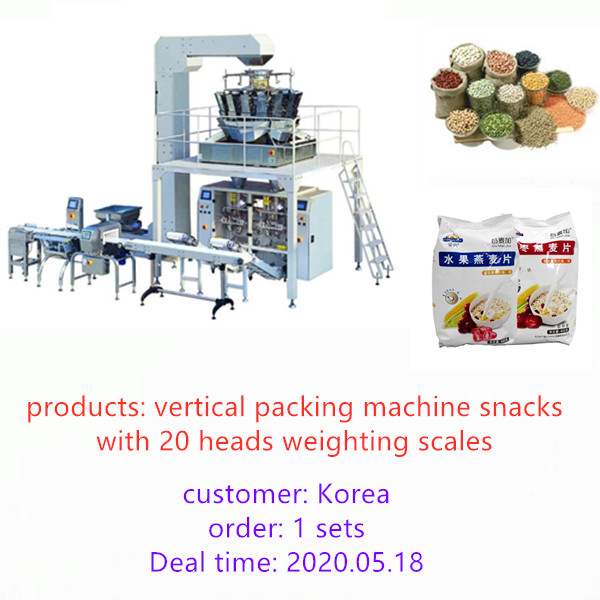

FBV-420D snacks packing machine with 20 heaes scales

Last update:2021-10-09
Page View:1505

nuts packing machine with weighting scales

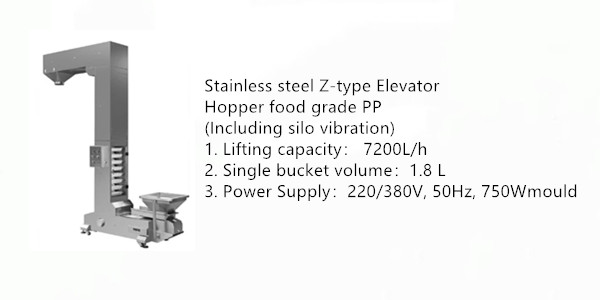

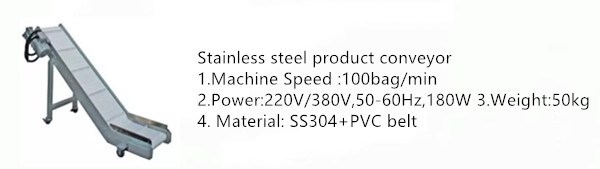

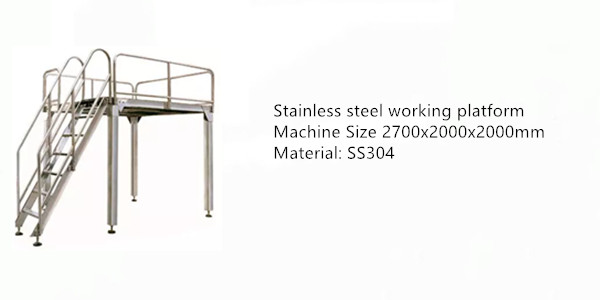

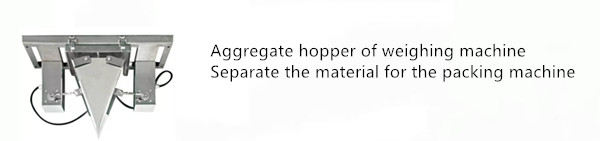

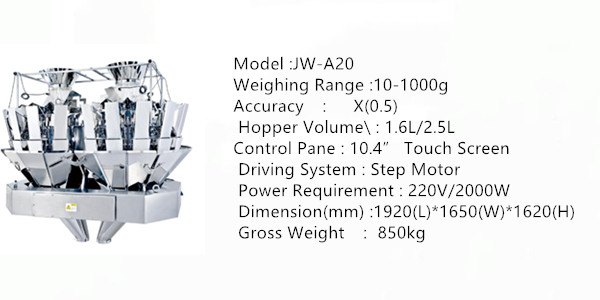

Z type conveyor → Multiheads weigher → Work platform → Aggregate hopper→Split pants→Metal Detection →FBV-420D packing equipment → Finished belt conveyor

Product: Snack food

Packing bag size:

Width: 60-200mm

Length: 60-300mm

Bag type: Backing sealing

Production capacity: 100~110 bags / min

Measurement accuracy: ±0.5~2g

Compressed air consumption: about 0.5 cubic / minute 0.6-0.7Mpa

Total power: 8.5KW (not including metal detection and self-owned equipment and other

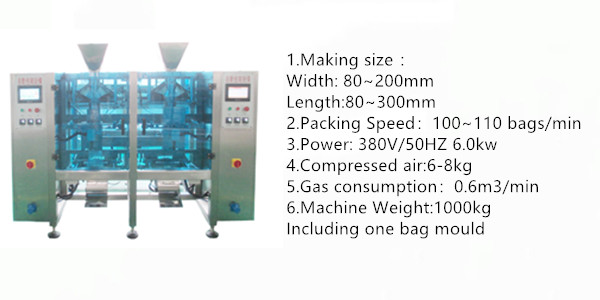

CONSTRUCTIONS OF MACHINE:

nuts packing machine with weighting scales

It's suitable for weighing slice, roll or regular shape products and small granule washing powder. frozen food ,such as sugar, salt, seed, rice, sesame, glutamate,frozen food ,milk powder, coffee powder and seasoning powder, small granule, chips ,easily broken poducts biscuits etc.

nuts packing machine with weighting scales

Modal	FBV-320	FBV - 420	FBV-520	FBV-720
Measuring range	150-800ml	150-1500ml	150-2000ml	150-4000ml
Packaging speed	5-70bags/min	5-60bags/min	10-60bags/min	10-60bags/min
Bag width	50-150mm	60-200ml	80-250mm	100-350mm
Bag length	80-240mm	80-300mm	80-350mm	100-450mm
Film roll width	Max.320mm	Max.420mm	Max.520mm	Max.720mm
Film thickness	0.03-0.09mm
Film material	OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film
Machine size(LxWxH)	*11859351245mm*	*121710151343mm*	*148810801490mm*	*171612601820mm*
Machine weight	350kg	450kg	550kg	700kg
