The machine adopt manual feeding,all the works of measuring,filling ,sealing ,cutting,counting, bag making can be done automatically, it can also according to the customer requirement printing batch number and other function
Operation and adjustment
1. The requirements of operating this machine: Put through the elec. Power and cleaned compressed air, put the shell of the machine safely to the ground, set up the total work pressure as 0.6 Mpa,
And pour into lubrication positions and cylinder lubrication( we suggest that cylinder pour into pure white
Oil).

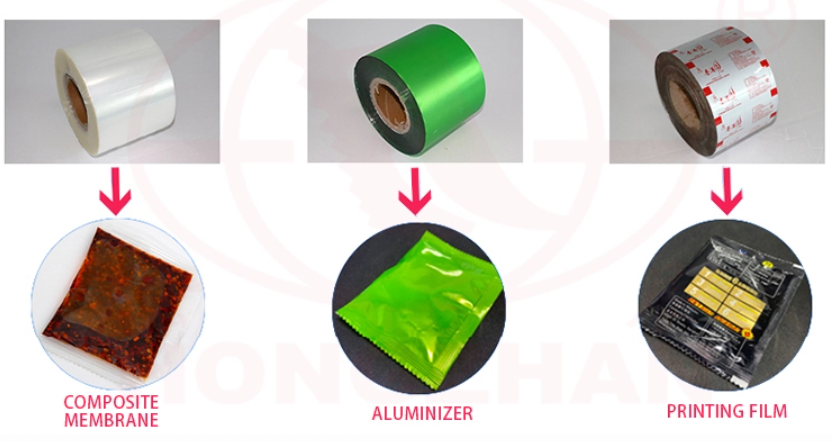

2. Put the packing materials in the film scroll and fix the shelter (the printed-page outward or the compound page inward). Penetrate the packing materials according to picture of the film's locus.
3. Press the electrical switch in the electricity operation board, the indicator light is turned on, then the machine begin in the state of awaiting an opportunity. Version indicator showed as follows:
4. According to the packing materials pass the temperature controller of the board to set up trial sealing temperature.
The temperature set up method of the temperature controller: Press key in the temperature controller to set up, made the PL window indicates words "50", SV window unit twinkle, then press keyor
5. Examine the situation of the packing materials, to see whether the packing materials is in the obverse side of the finished-form machine, if not, then you need to adjust from left, right, above and below; Or adjust the axle position of the packing materials in the film scroll, made the two-wheel pull the packing materials easily
Suitable for non-sticky materials, such as biscuits, dumplings, candy, jujube, jelly, scented tea, hawthorn bars, medlar and other large particle materials.The packaging can be backpacked, three-sided, four-sided or triangular..
