double lanes vertical packing machine

Last update:2021-10-09
Page View:839

vertical packing machine

1. This machine can finish : forming bag--measuring--material filling—sealing—counting—date code printing, all the work automatically;

2. Photoelectric and tracing system or computer system can be provided without your specific requirements.

3. The PLC controller has the advantages such as setting the length of the bag; the out put alarm and the speed and quantity with buttons;

4. This machine can be installed to code printer for 1-3 lines characters such as production and expiry date according to your special request.

Applicable packing film

Paper/PE, PT/PE, PET/AL/PE, BOPP/PE, Tea filter paper and other compound materials can be heat sealed.

automatic packaging of liquid of foods,medicine and chemicals,such as pesticide,shampoo,body foam bath lotion,facial cream,ingredient oil,fruit sauce,

tomato ketchup and honey etc.

OTHER POUCHES( VIDEO)

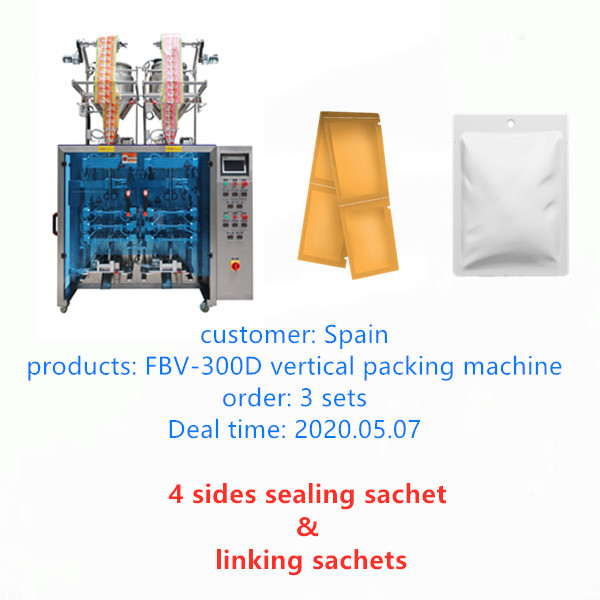

Type:	FBV-300	FBV-300D
Sachet range(need customized)	Length: 45-180mm width：30-140mm	Length: 45-180mm width：30-140mm
Max diameter of roll film	≤φ450mm	≤φ450mm
Max width of film	220mm	220mm
Thickness of film	5-10 micron	5-10 micron
Speed:	4 sachet/minute	80 sachet/minute
power	3.5 Kw	6 Kw
Voltage:	220V/50Hz	220V/50Hz
Outside dimension	length1350mmwidth1150mmheight2137mm	length1350mmwidth1450mmheight2137mm
Weight of machine	350 kgs	600 kgs
