This machine is suitable for packing jelly, soy milk, yogurt, mineral water, juice, ice cream, edible oil, seasoning,detergent and other chemical products and so on.
|
Model |
FB -ZLD-A2 |
|
|
Production capacity |
1000-1200 pouches/hour |
|
|
Filling nozzle |
2 |
|
|
Capping head |
2 |
|
|
Piston pump |
1 |
|
|
Once Filling capacity |
≤310ml(customizable) |
|
|
Continuous filling times |
3 |
|
|
Max. Filling capacity |
900ml |
|
|
Liquid temp. |
0-100℃ |
|
|
Filling Accuracy |
±1% |
|
|

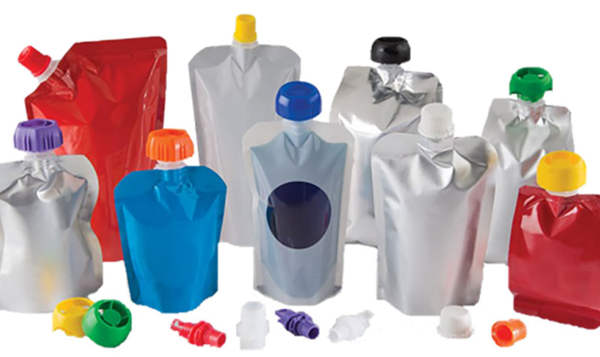

Spout pouch |
Spout size |
8.6mm,10mm,12mm (Choose one or customizable) |
|
Material |
PET/PE/NY/CPP/AL/CPP various 2-layer, 3-layer composite film |
|
|
Max. height |
≤220mm (customizable) |
|
|
Max. width |
≤150mm (customizable) |
|
|
Power input |
220V 50Hz 0.2 KW |
|
|
Air Consumption |
0.6-0.8 Mpa 0.40m3/min |
|
|
Net weight |
160kg |
|
|
Overall dimension |
1760*600*1400mm |
|
|
Gross weight |
200kg |
|
|
Packaging dimension |
1400*800*1500mm |
|
FU-BO is your right choice
