2 lanes stick sachet calcium powder packing machine

Last update:2021-10-09
Page View:900

customer: Israel

machine: 2 lanes sticks sachet packing machine

products: calcium powder

filling volume: 1 grams

Deal time: 20200316

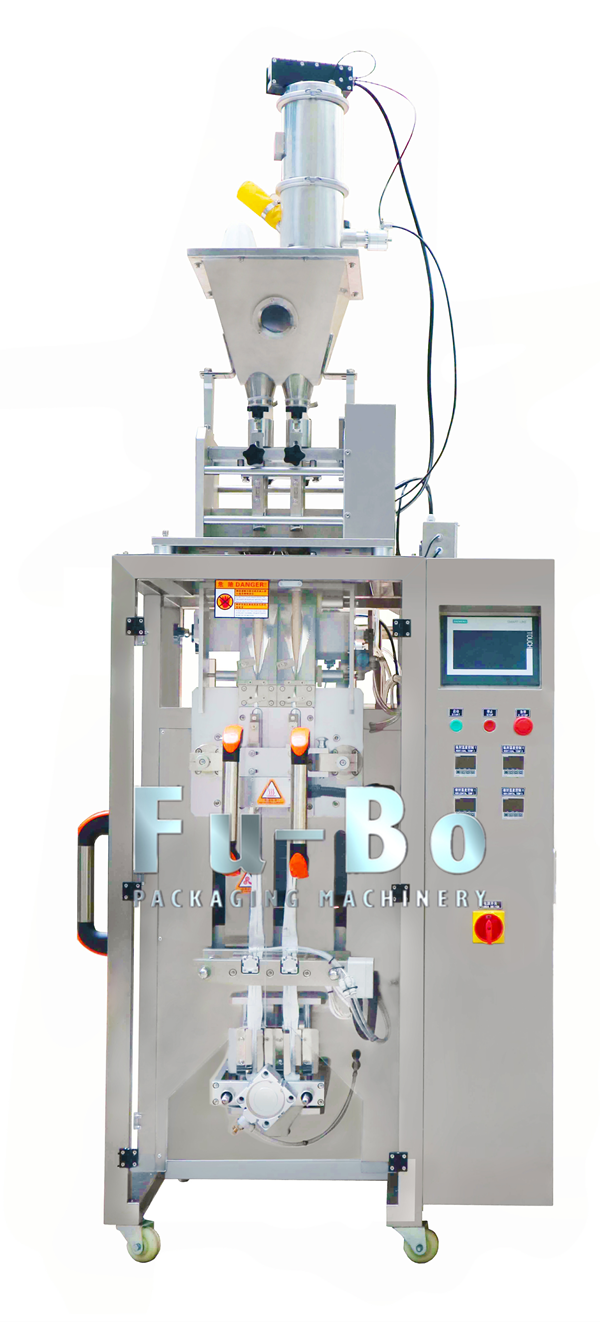

2 lanes stick sachets packing machine

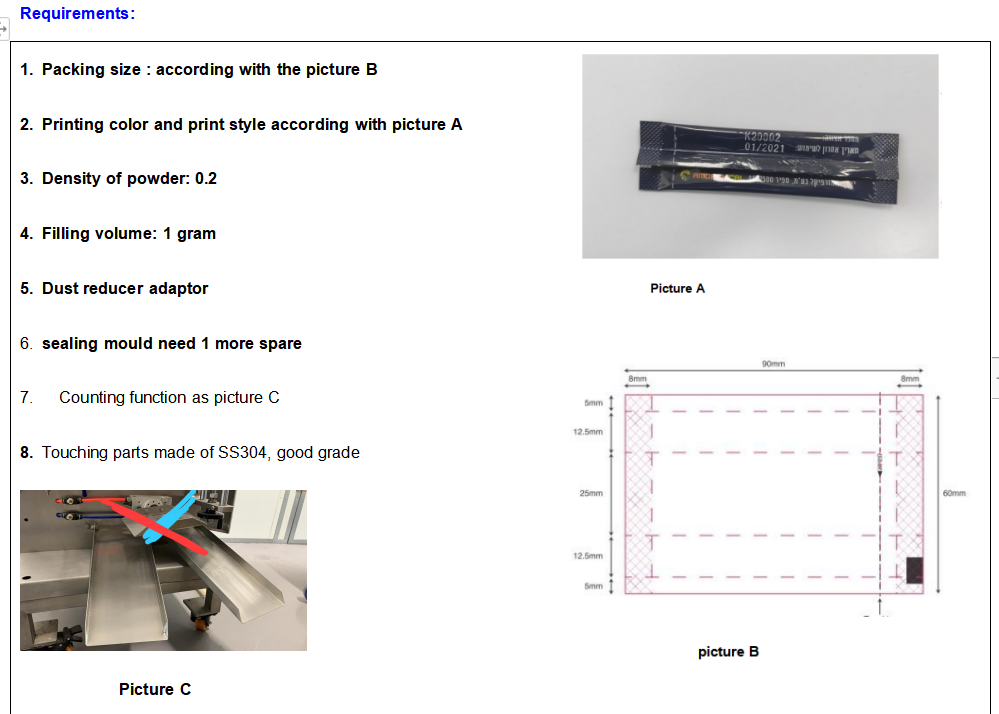

Requirements:

requirements of machine

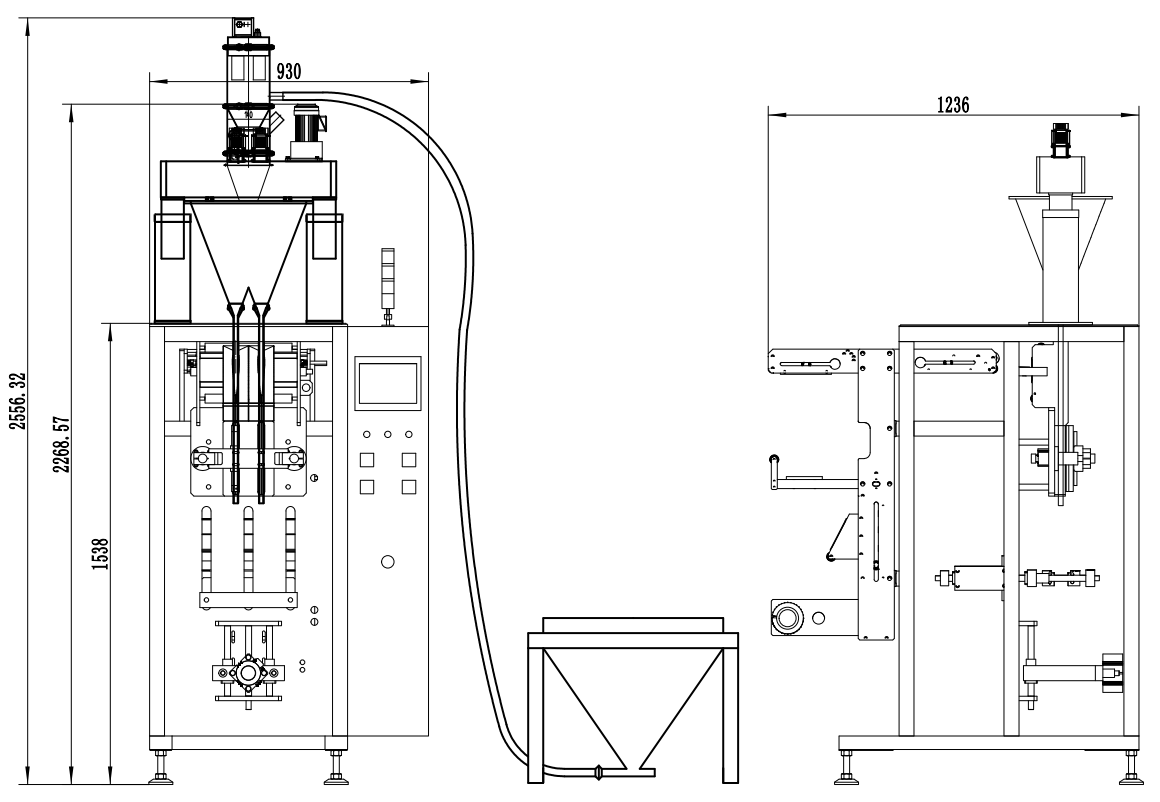

Design of machine:

design of packing machine

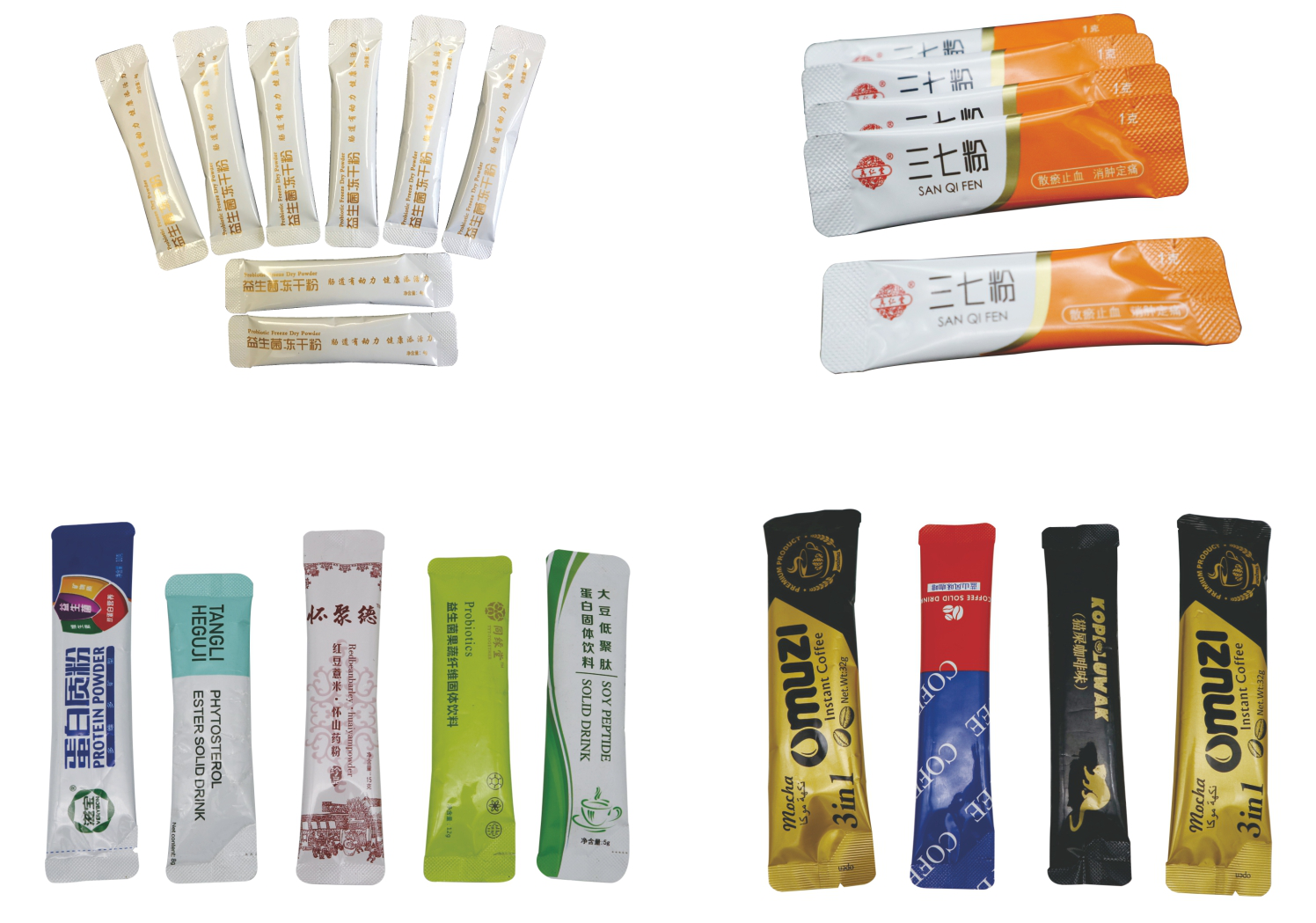

packing samples:

stick sachet samples

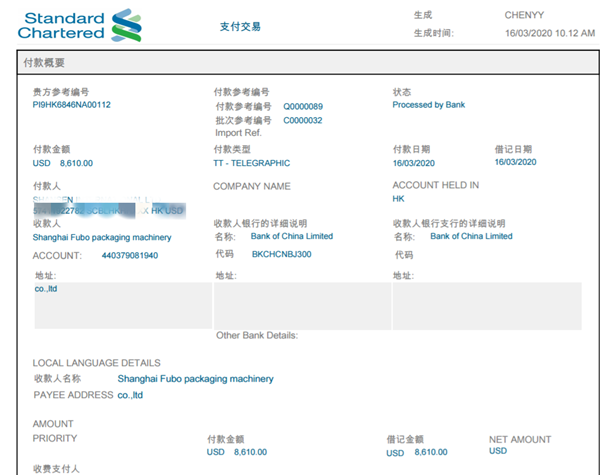

Payment :

2 lanes sticks sachet packing machine

Detials instructions of machine:

Suit for products:

Coffee, protein powders, sugar , medicine powders, fruits powders , egg powders, herbs powders ,vegetable powders, garlic powders, ginger powders, flavors powders, spices powders, milk powders etc

Change filling heads can be use for. :
sauce , liquid, pastes, purée, pulps, margarine, mayonnaise， ketchup, shampoo, shower gel etc

Suit for package :

Stick sachet, stick pouch, back sealing bag, 4 sides sealing sachet, irregular shape pouches etc.

Features of machine:

This machine adopts servo motor, PLC and touch screen intelligent control system. Stable performance and easy operation. It has a series of automatic functions such as automatic completion of feeding, metering, date printing, bag making, sealing, hot pressing batch number, slitting and output of finished products.

Adopt special bag-making system, combining pneumatic and servo, to ensure the appearance of the finished package bag is flat and beautiful, and to increase the added value of the product. The punching knife is made of corrosion-resistant materials imported from Germany, which is durable.

This machine is suitable for packaging of products with high powder content in medicine, health products, food and other industries. Such as: functional fixed drinks, coffee, fruit powder, probiotics, panax notoginseng powder, protein powder, etc .;

Parameters:

Type:	FBV-300	FBV-300YD
Sachet range(need customized)	Length: 45-180mm width：30-140mm	Length: 45-180mm width：30-140mm
Max diameter of roll film	≤φ450mm	≤φ450mm
Max width of film	220mm	220mm
Thickness of film	5-10 micron	5-10 micron
Speed:	4 sachet/minute	80 sachet/minute
power	3.5 Kw	6 Kw
Voltage:	220V/50Hz	220V/50Hz
Outside dimension	length1350mmwidth1150mmheight2137mm	length1350mmwidth1450mmheight2137mm
Weight of machine	350 kgs	600 kgs

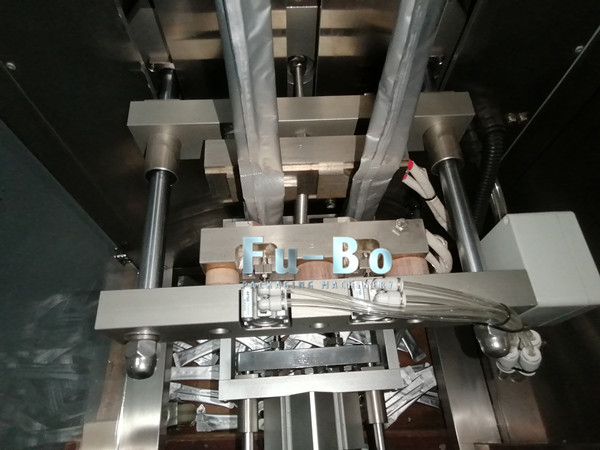

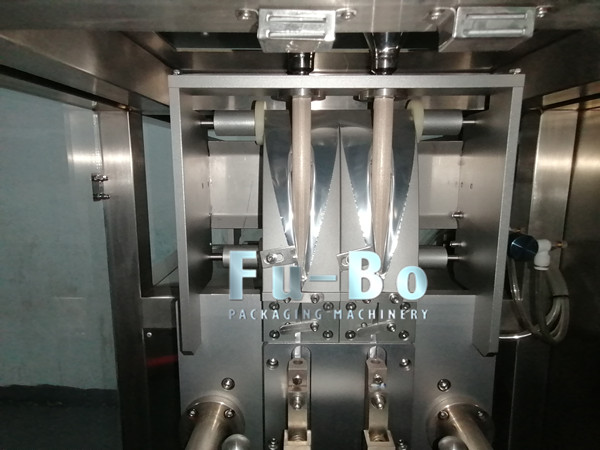

components of machine

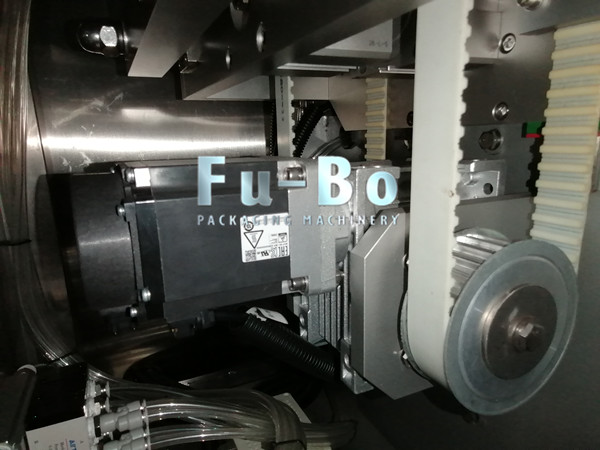

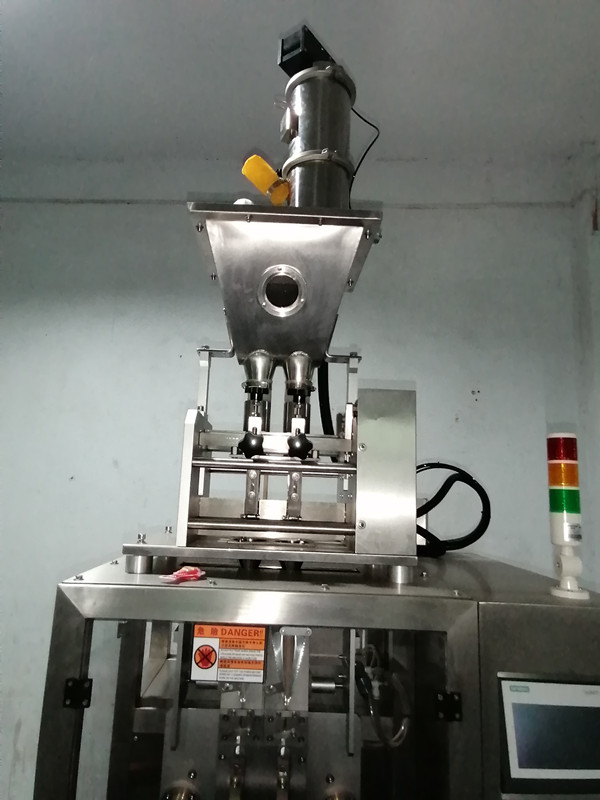

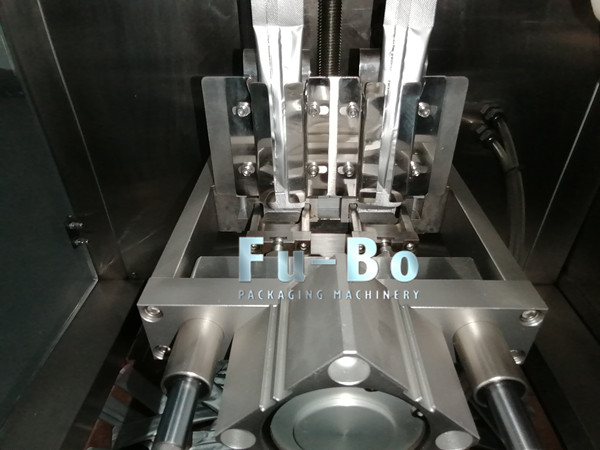

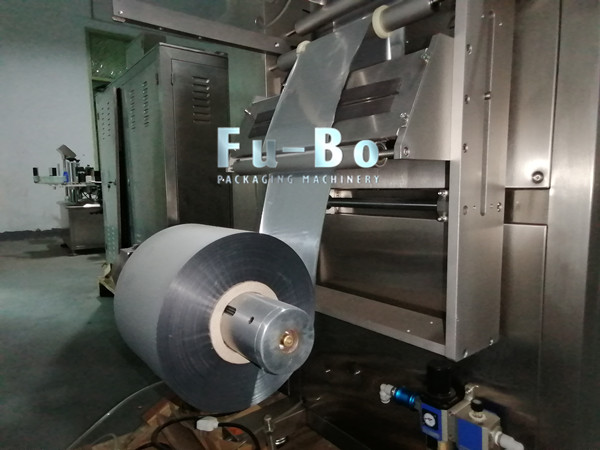

pictures of machine
