Rotary spouted doypack juice filling capping machine

  • Last update:2021-10-08
  • Page View:1939

spouted doypack filling machine

keywords


doypack machine
stand up pouch packing machine
doy pack packaging machine
spouted pouch filling machine
doypack packaging
stand up pouch filling and sealing machine
stand up pouch sealing machine
stand up pouch machine
stand up pouch filling machine
used stand up pouch filling machine
manual spout pouch filling machine
stand pouch packing machine
doypack filling machine
stand up pouch machine manufacturers
stand up pouch packaging machine
mini doypack machine
spout packing machine
spout filling machine
doy bag packaging
standing pouch sealing machine
spout pouch machine
hand feeding spout pouches filling machine
standy pouch packing machine
spout bag filling machine
spout pouch packing machine
spout pouch filling and capping machine
stand pouch packing machine price
doy bag packaging machine


spouted doypack filling capping machine

 ♦ This machine is fully automatic  with such processes as pouch-loading, vacumming, pouch-locating and dosing filling, nitrogen filling, cleaning for spout, cap feeding and alignment, discharging and liquid level controlling. Frequency converter controls motor speed. Not only it can be connected with CIP cleaning system, PLC control and touch screen system, equipped with the air-purifying system and safeguard swith, but also some functions can be added or removed according to the customer's requirment.


Operation Processing

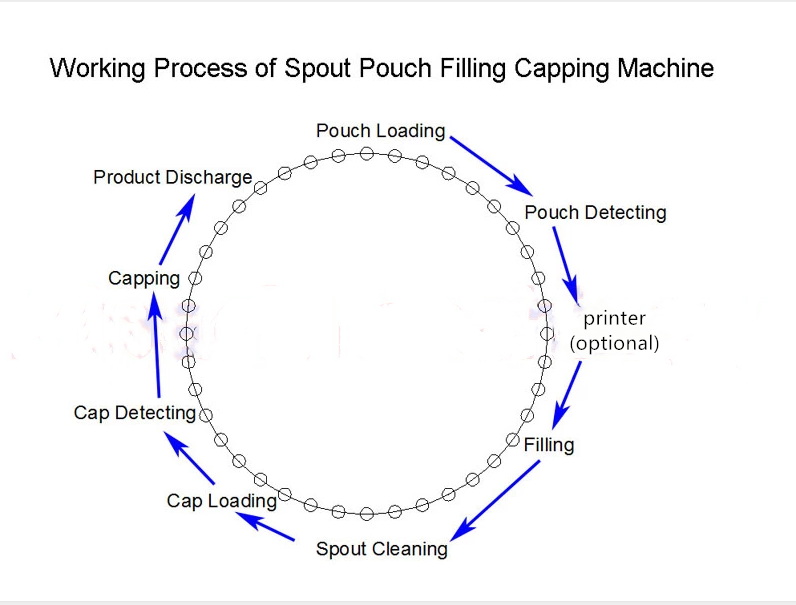

Spout pouch filling and capping machine works automatically: pouches feeding---positioned filling---cleaning ---caps loading---caps screwing---end-products discharging .

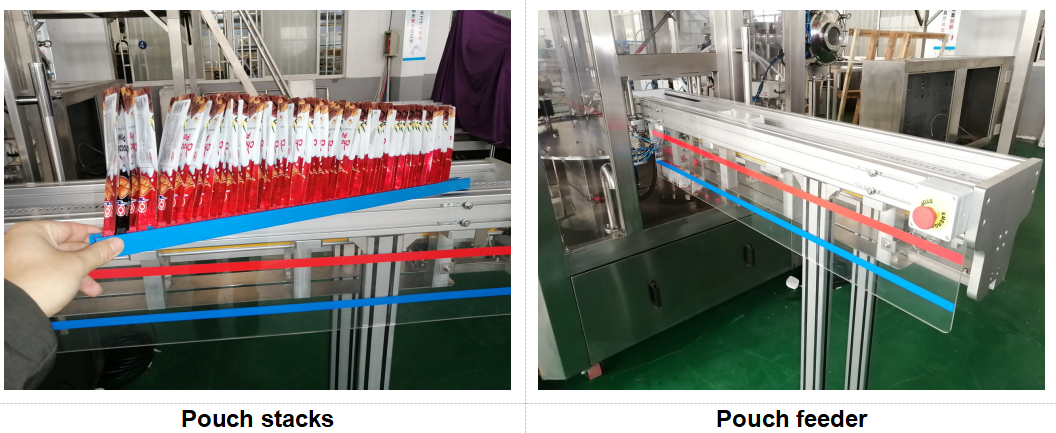

Automaitc pouch loading
Printing - printing machine required, optional feature (can conntect with inkjet printer)
No pouch detection
Vacuum - optional feature

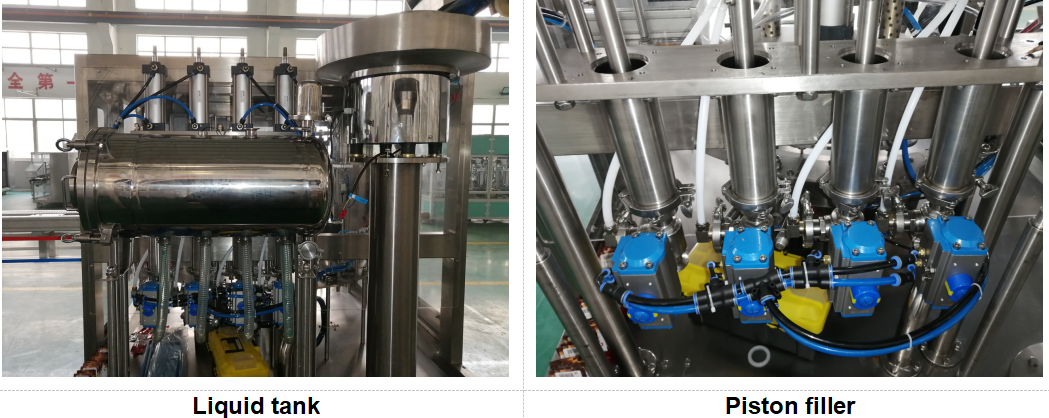

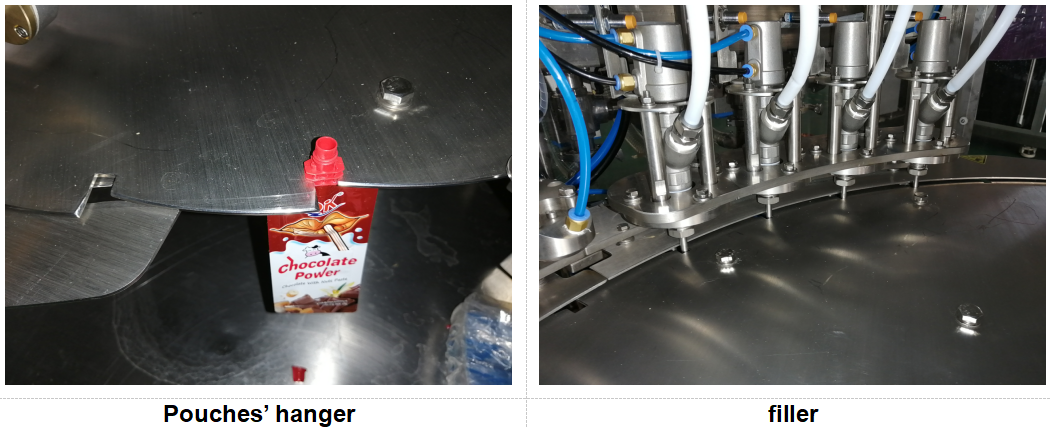

Filling - adopt with leak-proof nozzles
Nitrogen flushing - optional feature
Spout cleaning

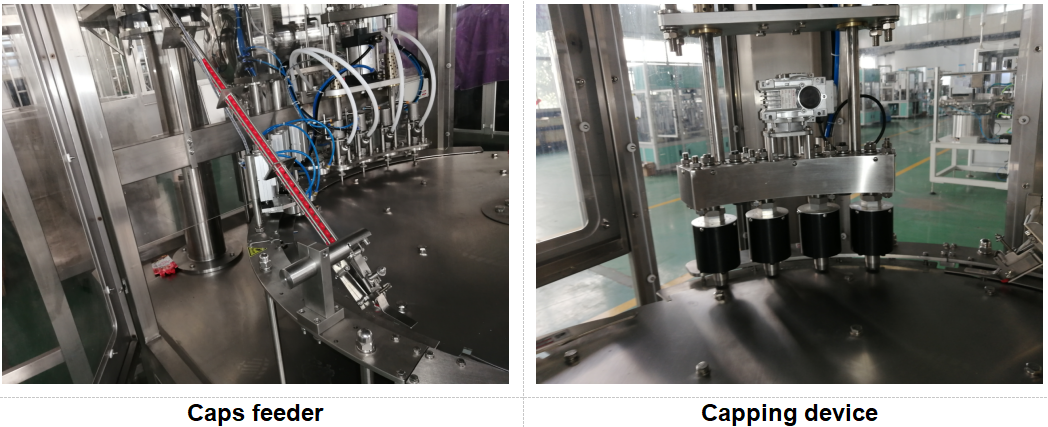

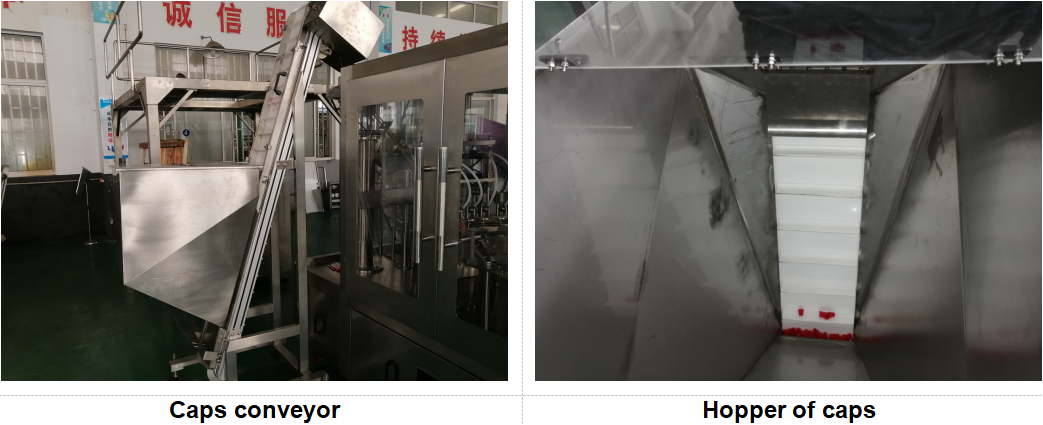

Feeding and inserting cap
No cap detection
Capping
Discharging
Transport - conveyor belt required, optional feature


spouted pouch filling capping machine



spouted pouch filling capping machinespouted pouch filling capping machinespouted pouch filling capping machinespouted pouch filling capping machinespouted pouch filling capping machine

spouted doypack filling capping machine

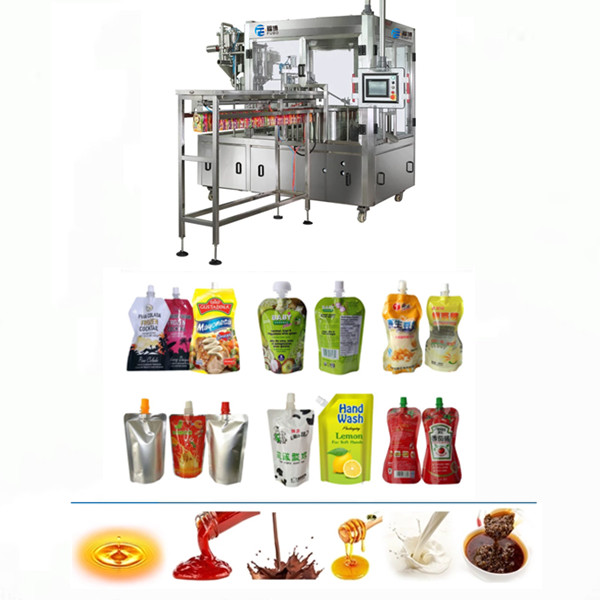

filling capping machine is suitable for packing jelly, soy milk, yoghurt, mineral water, juice, ice cream, edible oil, seasoning, detergent and other chemical products and son on.

spouted pouch filling capping machine

spouted doypack filling capping machine

Model

FB-4A

FB-6A

Filling Nozzle

4 pieces

6 pieces

Packing Speed

2000 to 4000bags/Hour

3000 to 6000bags/Hour

Volume

1 to 2500ml （customized)

1 to 2500ml （customized)

Power

1.6 kw

2.1 kw

Voltage

380V/50HZ (three phases)

380V/50HZ (three phases)

Air Pressure

0.5-0.7Mpa

0.5-0.7Mpa

Air Consumption

0.7m3/min

0.8m3/min

Dimension

Main Machine: (L)1800*(W)1230*(H)1900mm

Send bag holder: (L)2200*(W)400*(H)1600mm

Wooden Box

(L)2200*(W)2000*(H)2200mm

Weight

1600kg
