1-5 kgs powders pouches vertical packing machine

Last update:2021-10-08
Page View:827

1-5 kgs powders pouches vertical packing machine:

Function:

FUBO series automatic filling and packing machines can automatically measure, make bags, fill, seal, cut,

print codes and make easy tearing notches.

Optional device:

Filling nitrogen device, gusseted device, punching jaws, chain bag device, PE film device, venting device

China Pasta Pieces Pillow Bag Automatic Vegetables Carrot Polythene Soft Jelly Vertical Granule Packing Net Bag Machine

Technical advantages:

Modal	FB-320	FB - 420	FB-520	FB-720
Measuring range	150-800ml	150-1500ml	150-2000ml	150-4000ml
Packaging speed	5-70bags/min	5-60bags/min	10-60bags/min	10-60bags/min
Bag width	50-150mm	60-200ml	80-250mm	100-350mm
Bag length	80-240mm	80-300mm	80-350mm	100-450mm
Film roll width	Max.320mm	Max.420mm	Max.520mm	Max.720mm
Film thickness	0.03-0.09mm
Film material	OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film
Machine size(LxWxH)	*11859351245mm*	*121710151343mm*	*148810801490mm*	*171612601820mm*
Machine weight	350kg	450kg	550kg	700kg

Low cost high gain, high speed and efficiency.

China Pasta Pieces Pillow Bag Automatic Vegetables Carrot Polythene Soft Jelly Vertical Granule Packing Net Bag Machine

MITSUBISHI PLC control system, large touch screen, convenient to operate

Film drawing down system and horizontal sealing controlled by servo motor minimize the loss with complete automatic warn protection function

The feeding, measuring, filling, sealing, date printing, charging (exhausting), counting and food product delivery are all finished when it equips with feeding and measuring equipment.

OTHERS:

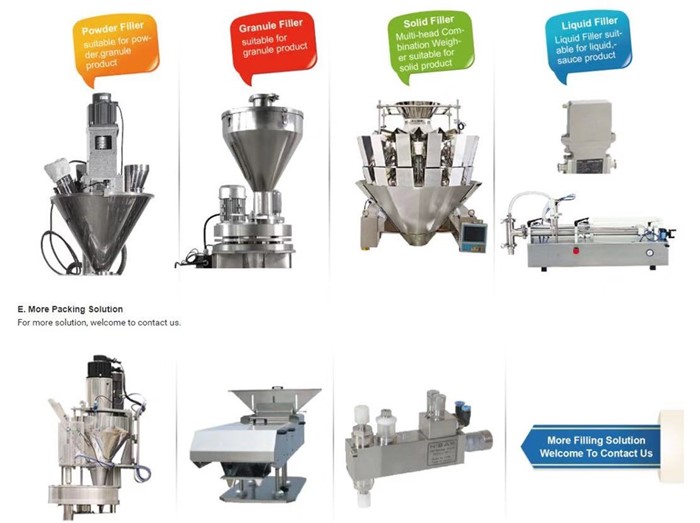

others products need exchanging related dosing filler as below:
