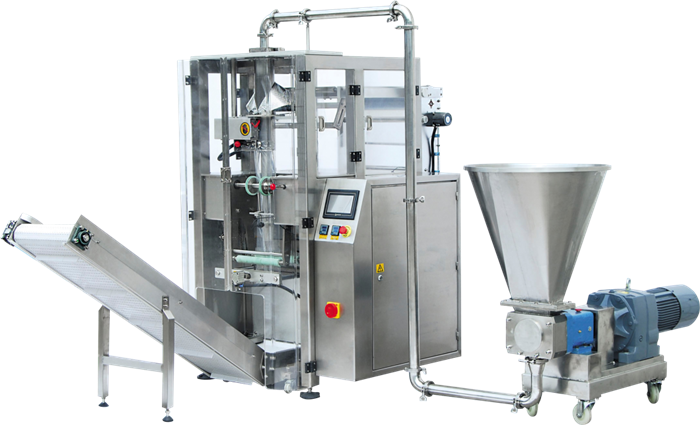

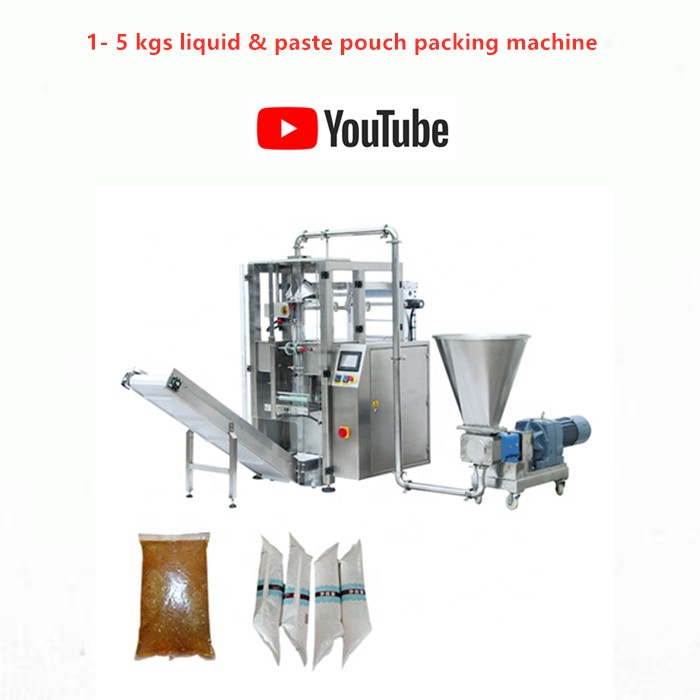

1-5 kgs sauce paste pouch packing machine:
Function:

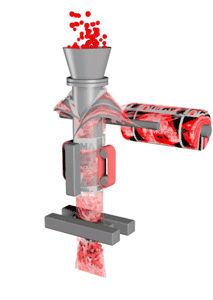

FUBO series automatic filling and packing machines can automatically measure, make bags, fill, seal, cut,
print codes and make easy tearing notches.
Full set of machine
Including: 1 set of machine; 1 set of convey pipe; 1 set of date printer; 1 set of rotary pump; 1 piece of hopper; 1 set of small convey belt.
Introduction
1.Function: liquid,semi-liquid material convey,bag forming,weight adjustment,vacuum sealing,bag cutting and counting.
2.Appearance and bag forming parts with stainless steel,clean and according with the food hygienic standard.
3.Computer operation system adopt imported color touch screen controlling,digital humanized management,
auto alarm function when material and packing film finished,make the operation and maintenance easier.
4.Controlling part with Mitsubish PLC,stable and reliable performance,Self-checking function.
5.Import material convey 316 pipe makes steady material conveying,pipe connection adopt speedy installation
connector,easy to dismounting and clean.
6.Advanced controlling procedure makes the weight error max.six over one thousand, far less than national
regulation's error standard.
7.Material-supplying pump can choose from America pump or China 316 stainless steel pump,sturdy and durable,high
pressure,suit for the convey of high viscosity material.
8.Electrical element with international brand product,reliable quality,easy to purchase.
9.Piston pump filling system will not rotate and extruding the material,will not change the color of material,will
not influence the taste and appearance.
10.Packing capacity can be above 1.5 tons, above 85°C can sealing automatically,so prevent secondary pollution,improve work efficiency,To reduce the production cost.
11.With unique clean system makes the pipe cleaning easier.
12.Reasonable price and good quality,Shanghai Huihe will provide you the best service for you.
Parameters:
Packing requirement: (change different moulds)
Packing products: Cream (liquid or thick cream),
Filling weight: 100-5000g-(10000g)
Package size: (See the technical parameters),
Packing Speed: 4-6-8bags/min
Packing shape: pillow type (NY/PE etc. )
Voltage: 3 phase 380V, 50Hz)
Scope of application:
It is widely used in packing filling of sweetened bean paste, filling of lotus meat, fruit jam, Chinese watermelon jam, cheese jam, sauce, salad, lotion, liquid, semi liquid.
Equipped with input pump, the machine could automatically pack the products in high temperature that will improve the productivity, decrease the cost, and avoid making the twice packing.
Features:
1. Touch screen display in Chinese and English, direct and easy to operate.
2. Advanced design for complete machine, reasonable structure, convenient adjusting operation and maintenance.
3. PLC computer-controlled systems to make the operation more stable. All the parameters can be adjusted without stopping the machine.
4.Accuracy weighing ±1%.
5.The pouching,sealing,packing and data printing of products is done in one time.
6. Minimize the consumption with multiple kinds of auto warning protection function.
