chocolate foiling pouch packing line

Last update:2021-10-08
Page View:492

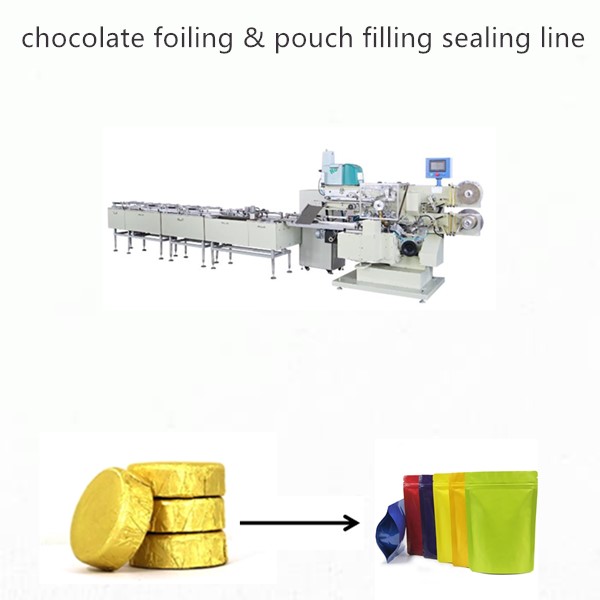

Chocolate foiling machine:

This complete machine is a fully automatic high-speed packing machine, which using the automatic control to convey and pack foods, such as chocolate and other food which are not easily be handled or fragile.

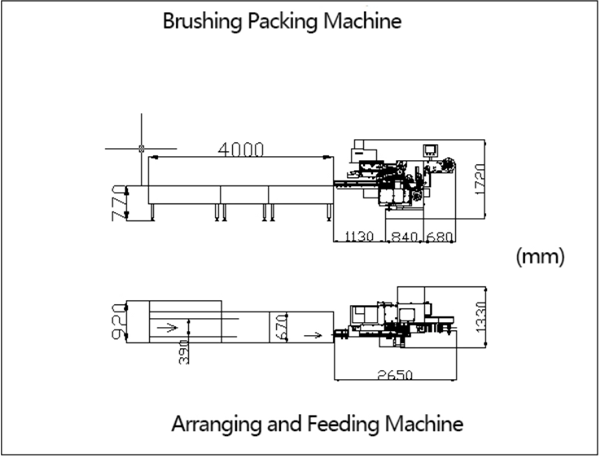

The complete machine consists of one set SL-SBZB450S Foil Packing Machine and one set SL-SBZL500 Arranging and Feeding Machine.

FB-SBZB450S series automatic packing machines are mainly used for brushing style packing of chocolate, hard candy, pressed, and etc. The model is suitable for different types of aluminum foil packing materials, providing a wide choice in product shapes and sizes. The packing machine possesses full details of patterns on packing material with various styles, providing an excellent packing performance.

Mode	FB-SBZB450S
products size	L30-95 w20-50 H6-10mm
wrapping speed	300 pieces per minute based on the differnt candy
voltage	380v 50Hz
power	3.5kw
Dimension	260014001150mm
weight	1800kg

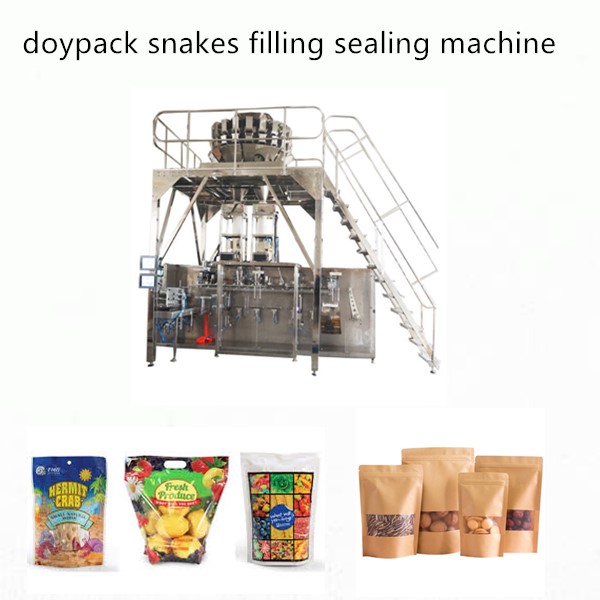

pouch packing line:

It is one of the best Doypack cereals packaging machine in China.

Open-Fill-Seal doy pack pouch , good for regular doy pack pouch, pouch with reclosable zipper, spout & cap, hanging hole, different shape. Full servo technology machine,fast in packing, stable in operating, Durable machine with reasonable price.

Flexible to fill and pack various product such as powder, liquid ,viscous liquid, granule, tablet , solid ,candy, stick product. Hundres machines already served in Food, beverage, cosmetics, personal care, household, chemicals and pharmaceutical industry.

chocolate foilling line chocolate pouch packing machine

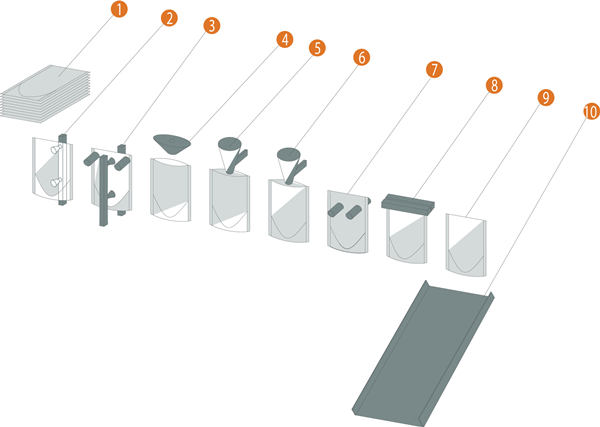

1.Double Premade Pouch Stack 2. Double Flip-Out Pouch-Picking Unit 3.Double Pouch Opening 4. Double Air Flushing 5.First Filling 6.Second Filling 7.Top Seal I 8.Top Seal II 9.Finished Product 10.OutletTechnical

Features&Advantages:

We have standard configuration for general industry, also we can customize special configuration for candy packing machine.

Control System: PLC programmable computer controller , touch screen, photocell sensor, encoder and inverter with high integration guarantee reliable operation.

Advanced photoelectric sensor tracking system and servo motor puller for precise bag width and position of film.

Independent digital temperature controller for vertical and horizontal sealing, intuitive and accurate.

easy and fast adjustment of change over, smooth performance and low noise, perfect package appearance, Sensible safety device and no pollution during production

Parameter:

Type型号	FBG-180	FBG-210	FBG-240	FBG-330
Packing range袋型尺寸范围	60X80mm & 180X310mm	90X110mm & 210X310mm	100X120mm & 240X320mm	140X180mm & 320X410mm
Max volume包装容量范围	1200mL	1600mL	2000mL	4000mL
Speed包装速度	30-60ppm	30-60ppm	30-60ppm	5-15ppm
Power功率	1.8kw	2.8kw	3.4kw	2.5kw
Dimension设备尺寸	1900mm(L) 970mm(W) 1390mm(H)	2700mm(L) 970mm(W) 1400mm(H)	3100mm(L) 1010mm(W) 1400mm(H)	1800mm(L) 1020mm(W) 1300mm(H)
Weight重量	700kg	900kg	1800kg	700kg
