Ziplock bags form filling sealing machine (HFFS)

  • Last update:2021-10-08
  • Page View:809

1. Instruction of machine:

This is a fully-automatic packing machine with Form-Fill-Seal function which is widely used for food, beverage, cosmetics, chemicals, pharmaceuticals packaging. While, this type of packing machine adopts duplex outlet design in order to improve the producing capability.  The packing material can be regular laminated film such as, PE/AL/PET; PE/NY/AL/PET; CPP/NY/AL/PET. This type of machine can make stand up pouch and then finish the packing process. The main packager can be integrated with various filling systems, suitable for all kinds of products, such as powder, small granule, liquid, viscous liquid, paste, tablet, candy, solid, stick, large solid and irregular products.
doypack form fill seal machine
doypack form fill seal machine

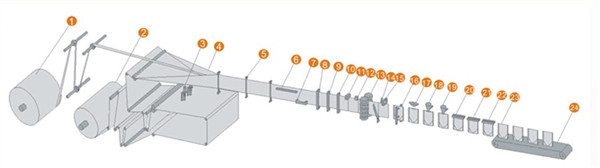

1.Zipper Release 2.Film Unwind 3.Bottom Holes Punching 4.Bag Forming 5.Film Guide 6.Horizontal Zipper Seal 7.Bottom Seal 8.Vertical Zipper Seal 9.Vertical Seal I 10.Vertical Seal II 11.Tear Notch 12.Photocell 13.Servo Advance 14.Cutting 15.Pouch Catching 16.Pouch Opening 17.Air Flushing 18.Filling I 19.Filling II 20.Pouch Stretching 21.Top Seal I 22.Top Seal II 23.Finished Product 24.Outlet

2. Applications of machine:
 Ziplock bag form fill seal machine in China
Ziplock bag form fill seal machine in google
Ziplock bag form fill seal machine made in china
Ziplock bag form fill seal machine in Amazon
Ziplock bag form fill seal machine factory
Ziplock bag form fill seal machine manufacturer
Form Fill & Seal Machines
Ziplock Bag Filling Machine Wholesale, Filling Machine
Horizontal Ziplock Bag Hffs Form Fill Seal Packaging Machine
Form Fill Seal Machine | Food Packaging Equipment‎

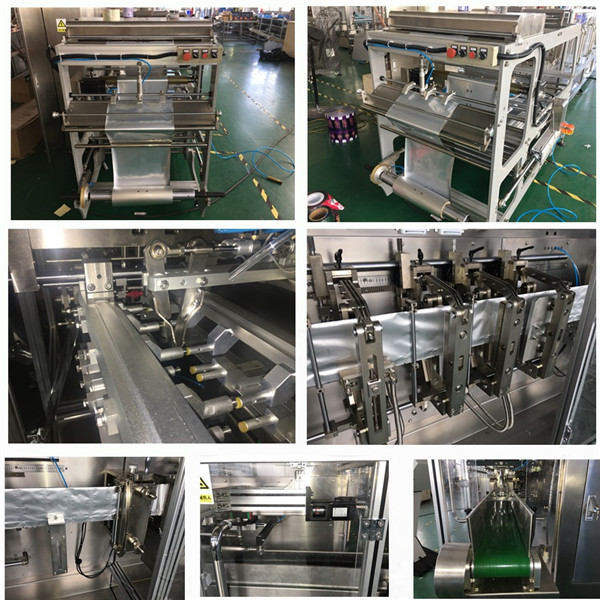

3. Details constructions of machine:


4. Features of machines:
 1) advantage design,easy to control,install and clean.
 2) All servo control (9 Schneider serve)makes your packing more digital and save more employee to control the machine
 3) fill more nitrogen(higher than 99%)
 4) with 3 bottom sealing,4 vertical sealing,2 top sealing,make sure the strength of the sealing
  5) one pair of bag claw finish all work from catch pouch to finish top sealing and transfer the pouch.
6) there are balance self-adjusting and pressure well-distributed on the bottom sealing and vertical sealing device which make sure the good looking and sealing strength of the pouches

5. Others:
Customization Philosophy

The product demonstrating may not perfectly meet your requirements, our philosophy is to customize your real need, To minimizing idle capacity and function. To supply you performance and cost balanced products. Following are the factors shall be taken into account during customization:

Filling Materials
Container to be filled, type and specification.
Capacity requirement
Automation requirement
Protection requirement
Other specific requirement

Selection Guide

Selection Guides are available for circulation, contact us to get products selection and customization support.

Statement
The pictures demonstrating in this profile represent products of range, and subject to the newest or customized design
Due to the huge number of documentation updating, the data indicated in this profile may not be updated timely, Please contact with our customer service for newest version.
The features or functions appear in this profile subject to the additional description of quotation
